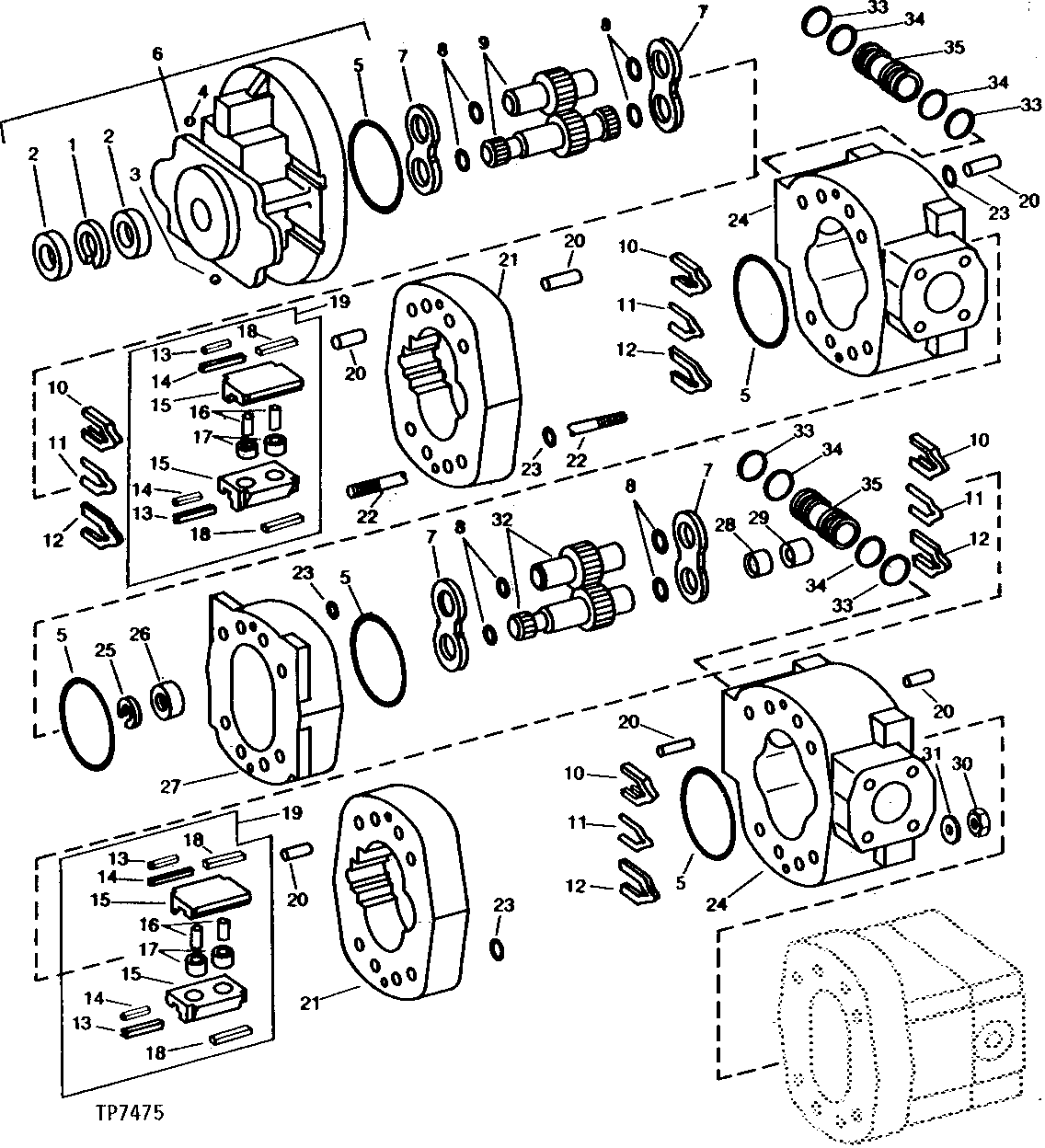

HYDRAULIC PUMP FRONT AND CENTER SECTION [02D20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N10193	1	SNAP RING	(SUB FOR T76101)
2	T76100	2	SEAL	-
3	T75109	1	PLUG	(SUB FOR T76102)
4	400R	1	Ball	-
5	T56238	5	O-Ring	-
6	-	1	Part 6	ASSEMBLY ( AT74277 NO LONGER AVAILABLE)
7	-	4	Part 7	PRESSURE ( T76108 NO LONGER AVAILABLE)
8	T25335	8	O-RING	-
9	AT74280	1	GEAR	-
10	T76115	4	BACK-UP RING	-
11	T76116	4	O-RING	-
12	T76117	4	BACK-UP RING	-
13	-	2	Part 13	( T76112 NO LONGER AVAILABLE)
14	-	2	Part 14	STRIP ( T76113 NO LONGER AVAILABLE)
15	-	2	Part 15	SHOE ( T76109 NO LONGER AVAILABLE)
16	-	2	Part 16	( T76110 NO LONGER AVAILABLE)
17	-	2	Part 17	( T76111 NO LONGER AVAILABLE)
18	-	2	Part 18	THRUST ( T76114 NO LONGER AVAILABLE)
19	-	2	Part 19	SEALING SHOE KIT ( AT74284 NO LONGER AVAILABLE)
20	U44854	12	DOWEL PIN	-
21	-	2	Part 21	( T76103 NO LONGER AVAILABLE)
22	T76118	8	STUD	-
23	R43780	32	O-RING	-
24	-	2	Part 24	HOUSING (WITH BUSHINGS) ( AT74281 NO LONGER AVAILABLE)
25	H80753	1	Snap Ring	(SUB FOR T76105)
26	T76104	1	SPLINED COUPLING	-
27	-	1	Part 27	(WITH BUSHINGS) ( AT74282 NO LONGER AVAILABLE)
28	T76106	1	SLEEVE	-
29	T76107	1	SPLINED COUPLING	-
30	14H863	8	Nut	3/4"
31	R78019	8	Washer	(SUB FOR T21397)
32	-	1	Part 32	SET ( AT74283 NO LONGER AVAILABLE)
33	T44948	4	O-Ring	-
34	T76334	4	BACK-UP RING	-
35	T76333	2	SLEEVE	-

HYDRAULIC PUMP FRONT AND CENTER SECTION [02D20]
