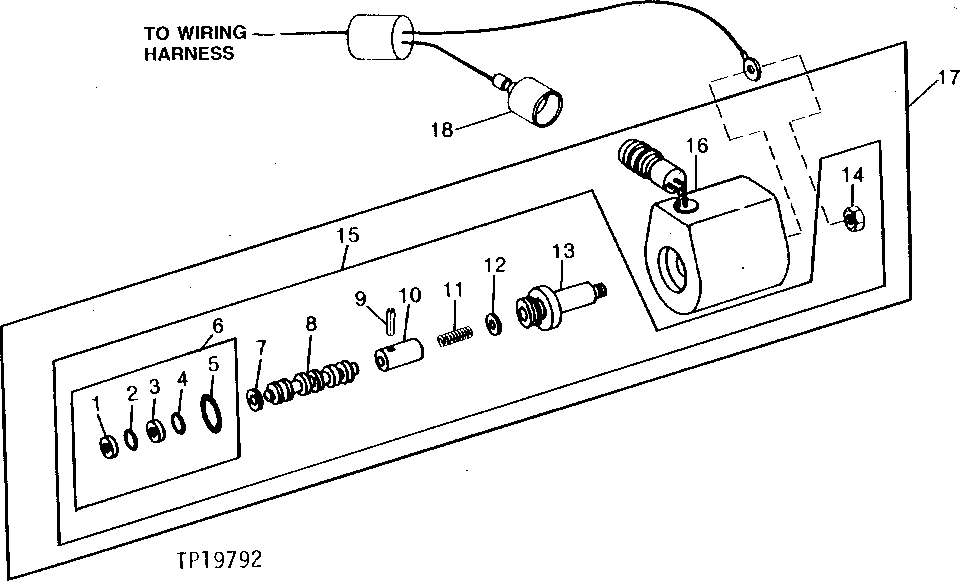

REPLACEMENT SOLENOID VALVE WITH HARNESS ADAPTER (SERIAL NO. -007939) [02H09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42926	1	Back-Up Ring	-
2	T40308	1	O-Ring	(SUB FOR H81608 AND R45186, THIS APPLICATION)
3	R45187	1	Back-Up Ring	-
4	R45638	1	O-Ring	-
5	U12547	1	O-Ring	-
6	AT66730	1	KIT	-
7	-	1	Part 7	(SUB RE21872 FOR R46701, THIS APPLICATION)
8	-	1	Part 8	(SUB RE21872 FOR AR81176 , THIS APPLICATION)
9	-	1	Part 9	(SUB RE21872 FOR 34H227, THIS APPLICATION)
10	-	1	Part 10	(SUB RE21872 FOR R58884 , THIS APPLICATION)
11	-	1	Part 11	(SUB RE21872 FOR R64698, THIS APPLICATION)
12	-	1	Part 12	(SUB RE21872 FOR R64697, THIS APPLICATION)
13	-	1	Part 13	(SUB RE21872 FOR AR48903, THIS APPLICATION)
14	M63707	1	Lock Nut	-
15	-	1	Part 15	(FURNISH RE21872)
16	-	1	Part 16	24V (SUB RE22400 AND AT66692 FOR AT67970 AND AT66692, THIS APPLICATION)
17	-	1	Part 17	(SUB RE22399 AND AT66692 FOR AT66691 AND AT66692, THIS APPLICATION)
18	AT66692	1	WIRING HARNESS	SOLENOID ADAPTER

REPLACEMENT SOLENOID VALVE WITH HARNESS ADAPTER (SERIAL NO. -007939) [02H09]
