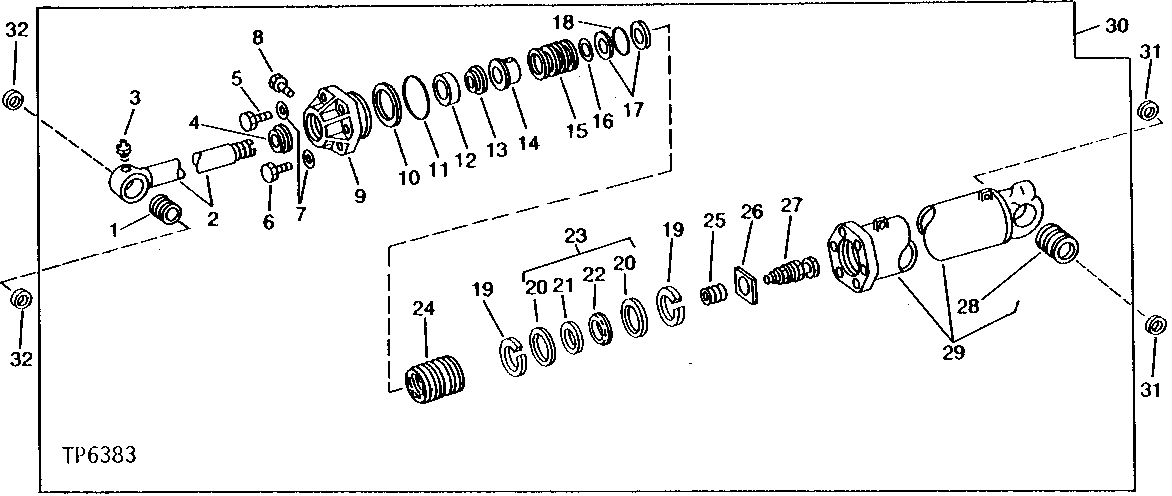

REPLACEMENT BUCKET CYLINDER (WITH CAPSEAL STYLE PISTON) [02E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T46612	1	BUSHING	-
2	AT45310	1	ROD	-
3	JD7759	1	Lubrication Fitting	1/8"
4	T46617	1	SEAL	(RK)
5	19H3313	4	Cap Screw	1" X 4-1/2"
6	19H3314	2	Screw	1" X 5-1/4"
7	T30636	6	Washer	-
8	19H1895	2	CAP SCREW	1/2" X 3/4"
9	T46616	1	GUIDE	-
10	R78807	1	BACK-UP RING	(BK) (SUB FOR T46621, THIS APPLICATION)
11	T46620	1	O-RING	(BK)
12	T46618	1	WEAR RING	(RK)
13	R76773	1	SEAL	(RK)
14	T57334	1	BUSHING	-
15	T46626	1	SPRING	-
16	T46629	1	WEAR RING	(PISTON BRAKE)
17	R78808	2	BACK-UP RING	(RK) (SUB FOR T59925)
18	T59924	1	RING	(RK)
19	R77642	2	RING	(BK)
20	-	2	Part 20	(SUB RE11563)
21	-	1	Part 21	(SUB RE11563)
22	-	1	Part 22	(SUB RE11563)
23	RE11563	1	SEAL	(BK)
24	R77651	1	PISTON	TWO WEAR RINGS AND ONE SEAL (USE WITH RE11563 SEAL AND (2) R77642 WEAR RINGS)
25	T58997	1	SPRING	-
26	T57335	1	STRAP	-
27	AT56647	1	POPPET	-
28	T46610	1	BUSHING	-
29	RE13868	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AR96279)
30	-	1	Part 30	( RE11571 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
31	T46611	2	SEAL	-
32	T72099	2	SEAL	-
