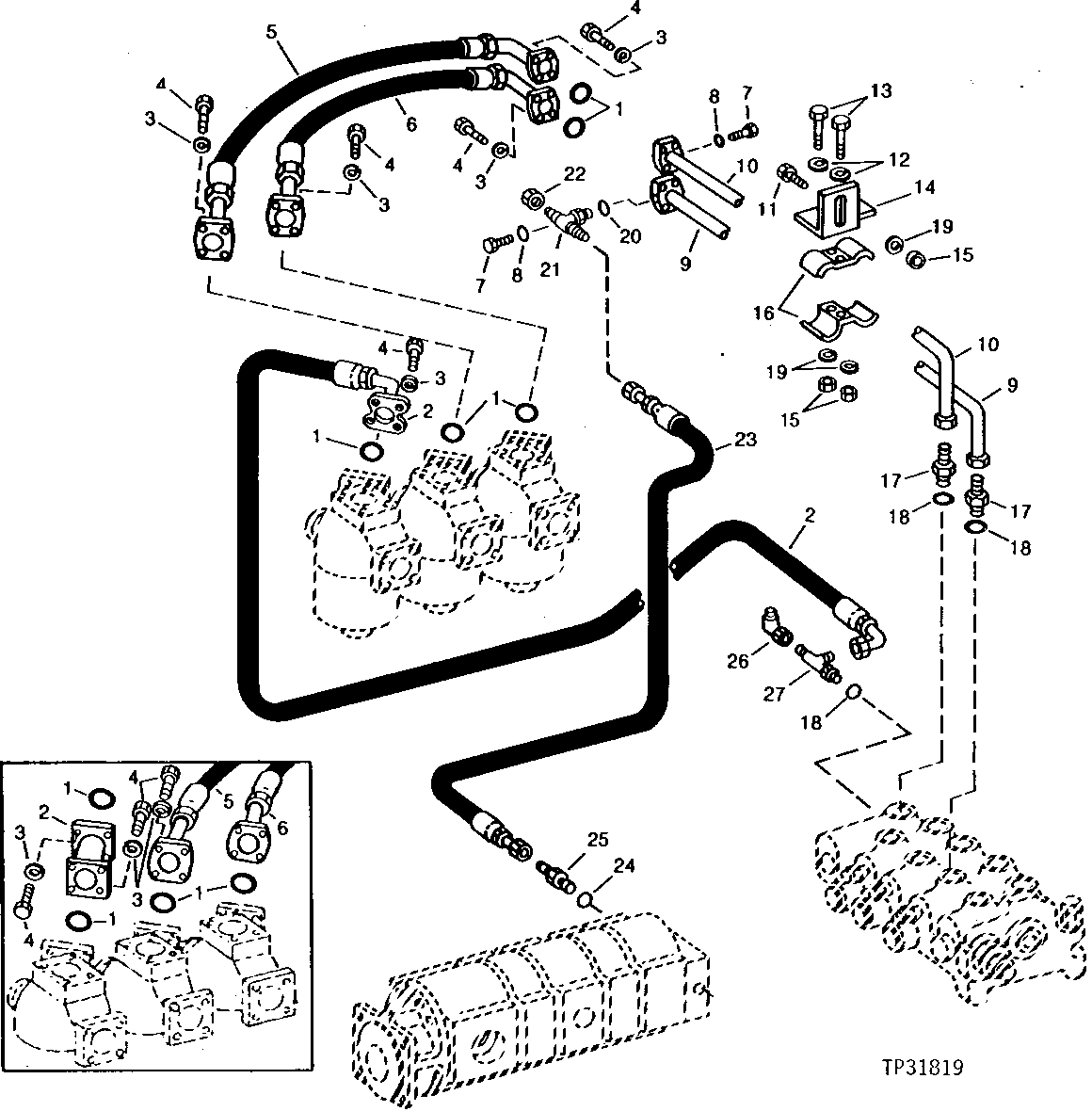

PRESSURE FILTERS TO PUMP AND CONTROL VALVE HYDRAULICS [02F23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N131838	6	O-Ring	USE WITH AT66720 TWO-SPEED BOOM CHECK VALVE
1	T72216	5	O-Ring	-
2	AT70690	1	HYDRAULIC HOSE	1-5/8" X 1 625 MM (64") X 1-1/4"
2	AT57866	1	EXTENSION	USE WITH AT66720 TWO-SPEED BOOM CHECK VALVE
3	12H293	20	Lock Washer	7/16"
4	19H3205	20	Cap Screw	7/16" X 1-1/2"
5	AT62622	1	HYDRAULIC HOSE	1-1/4" X 975 MM (38-1/2") X 1-1/4"
6	AT62621	1	HYDRAULIC HOSE - FABRICATE	1-1/4" X 735 MM (29") X 1-1/4"
7	R27218	2	Fitting Plug	(K)
8	R26448	2	O-Ring	(K)
9	AT73802	1	TUBE	(USE WITH AT69147 PUMP) (USE IF AVAILABLE)
9	AT72514	1	TUBE	(USE WITH AT125476 PUMP)
10	AT57855	1	TUBE	(USE WITH AT69147 PUMP)
10	AT72513	1	TUBE	(USE WITH AT125476 PUMP) (USE IF AVAILABLE)
11	19H2473	2	Cap Screw	1/2" X 1-3/4"
12	24H1625	2	Washer	17/32" X 1" X 0.120"
13	19H1820	2	Cap Screw	1/2" X 3"
14	T60385	1	PLATE	-
15	14H1040	4	Nut	1/2"
16	T60384	2	CLAMP	-
17	R37187	2	ADAPTER FITTING	-
18	U13639	3	O-Ring	-
19	12H301	4	Lock Washer	1/2"
20	R26286	1	O-Ring	(USE WITH AT69147 PUMP)
20	R26448	1	O-Ring	(USE WITH AT125476 PUMP)
21	AU43507	1	TEE FITTING	(USE WITH AT69147 PUMP)
21	AT37518	1	Tee Fitting	(K) (USE WITH AT125476 PUMP)
22	R39783	1	Fitting	-
23	AT46299	1	Hydraulic Hose	9/16" X 1 150 MM (45-1/4") X 9/16"
24	T70177	1	O-Ring	-
25	R27212	1	Fitting	-
26	AT55078	1	ELBOW FITTING	-
27	AT50565	1	TEE FITTING	-

PRESSURE FILTERS TO PUMP AND CONTROL VALVE HYDRAULICS [02F23]
