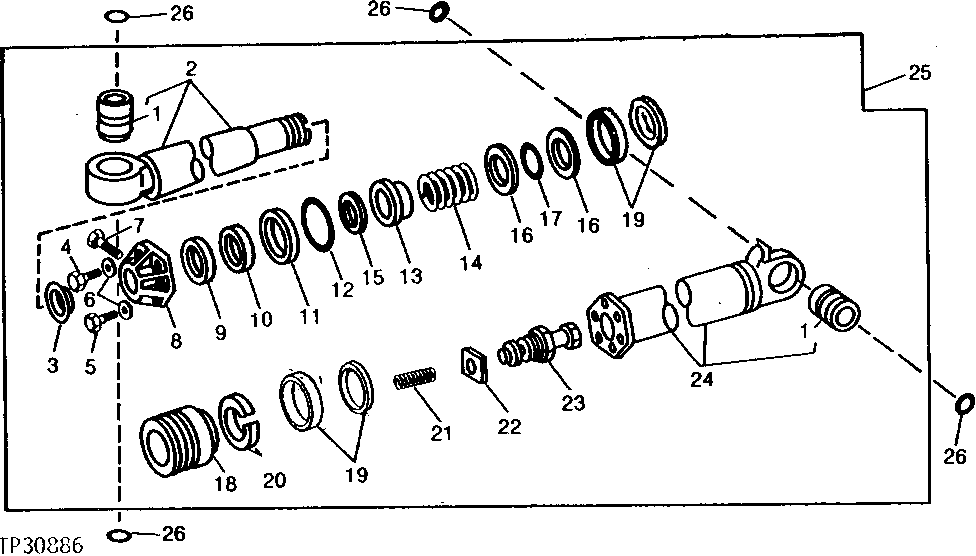

CROWD CYLINDER (WITH U-CUP STYLE PISTON) [02E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T46610	2	BUSHING	-
2	AR88792	1	ROD	(SUB FOR AT45324) (SUB AR90893)
2	AR90893	1	ROD	-
3	T46617	1	SEAL	(RK)
4	19H3313	4	Cap Screw	1" X 4-1/2"
5	19H3314	2	Screw	1" X 5-1/4"
6	T30636	6	Washer	1-3/4" X 1/4"
7	19H1895	2	CAP SCREW	1/2" X 3/4"
8	T46616	1	GUIDE	-
9	T46618	1	WEAR RING	(RK)
10	R76773	1	SEAL	(RK) (SUB FOR T46619)
11	R78807	1	BACK-UP RING	(RK) (SUB FOR T46621, THIS APPLICATION)
12	T46620	1	O-RING	-
13	T46625	1	POPPET	-
14	T57339	1	SPRING	-
15	T46629	1	WEAR RING	BRAKE
16	R78808	2	BACK-UP RING	(RK) (SUB FOR T59925)
17	T59924	1	RING	(RK)
18	T46653	1	PISTON	ONE WEAR RING AND TWO SEALS (USE WITH (2) AR104162 SEALS AND R72663 WEAR RING) (SUB R77649, RE14032 AND RE14033)
18	R70962	1	PISTON	ONE WEAR RING AND TWO SEALS (USE WITH (2) AR104162 SEALS AND R72663 WEAR RING, (SUB R77649, RE14032 AND RE14033)
19	AR104162	2	SEAL	(RK) (USE WITH T46653 AND R70962) (SUB FOR T46623) (SUB FOR AR91556 AND AR95512, THIS APPLICATION)
20	R72663	1	WEAR RING	(RK) (USE WITH T46653 AND R70962) (SUB FOR T46624, THIS APPLICATION)
21	T57338	1	SPRING	-
22	T57335	1	STRAP	-
23	AT45325	1	POPPET	-
24	RE13870	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AT45322 AND AR96280)
25	AR88791	1	CYLINDER	(SUB FOR AT45321) (SUB AR105293)
25	AR105293	1	HYDRAULIC CYLINDER	(SUB FOR AR90892, AR93238 AND AR96275) (SUB RE21195)
26	T46611	4	SEAL	-

CROWD CYLINDER (WITH U-CUP STYLE PISTON) [02E18]
