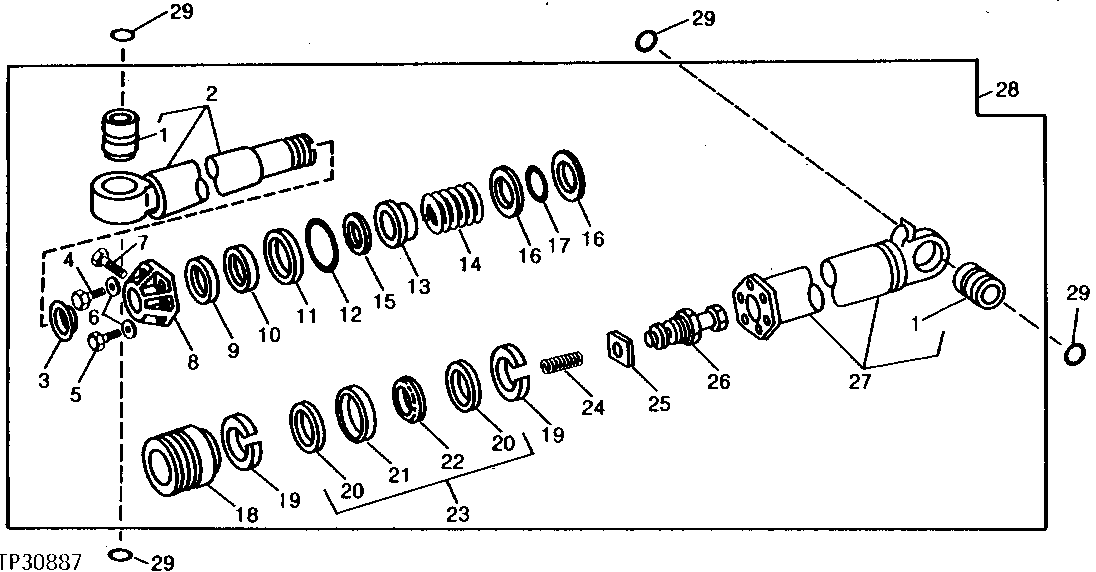

CROWD CYLINDER (WITH CAPSEAL STYLE PISTON) [02E20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T46610	2	BUSHING	-
2	AR90893	1	ROD	-
3	T46617	1	SEAL	(BK)
4	19H3313	4	Cap Screw	1" X 4-1/2"
5	19H3314	2	Screw	1" X 5-1/4"
6	T30636	6	Washer	1-3/4" X 1/4"
7	19H1895	2	CAP SCREW	1/2" X 3/4"
8	T46616	1	GUIDE	-
9	T46618	1	WEAR RING	(BK)
10	R76773	1	SEAL	(BK)
11	R78807	1	BACK-UP RING	(RK) (SUB FOR T46621, THIS APPLICATION)
12	T46620	1	O-RING	(RK)
13	T46625	1	POPPET	-
14	T57339	1	SPRING	-
15	T46629	1	WEAR RING	BRAKE
16	R78808	2	BACK-UP RING	(BK) (SUB FOR T59925)
17	T59924	1	RING	(BK)
18	R77649	1	PISTON	TWO WEAR RINGS AND ONE SEAL, (USE WITH RE11563 SEAL AND (2) R77642 WEAR RINGS)
19	R77642	2	RING	(RK)
20	-	2	Part 20	(SUB RE11563)
21	-	1	Part 21	(SUB RE11563)
22	-	1	Part 22	(SUB RE11563)
23	RE11563	1	SEAL	(RK)
24	T57338	1	SPRING	-
25	T57335	1	STRAP	-
26	AT45325	1	POPPET	-
27	RE13870	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AR96280)
28	RE11568	1	HYDRAULIC CYLINDER	(SUB RE21195)
29	T46611	4	SEAL	-
