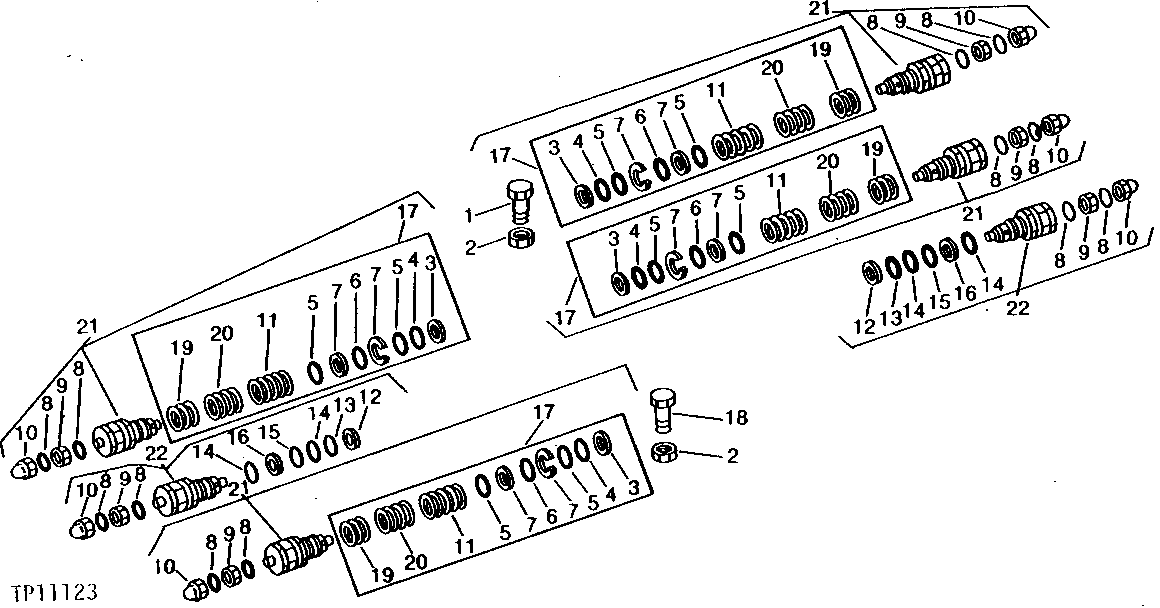

CONTROL VALVE MOUNTING AND RELIEF VALVES [02E25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3105	2	Cap Screw	3/4" X 5"
2	24H1184	3	Washer	25/32" X 1-1/4" X 0.105"
3	-	4	Part 3	(SUB AT77264, THIS APPLICATION)
4	-	4	Part 4	(SUB AT77264, THIS APPLICATION)
5	-	8	Part 5	(SUB AT77264, THIS APPLICATION)
6	-	4	Part 6	(SUB AT77264, THIS APPLICATION)
7	-	8	Part 7	(SUB AT77264, THIS APPLICATION)
8	H63283	12	O-Ring	-
9	T67424	6	Nut	-
10	T67425	6	Nut	-
11	-	1	Part 11	(SUB AT77264)
12	-	2	Part 12	( T60364 NO LONGER AVAILABLE)
13	T59014	2	O-Ring	-
14	R26773	4	O-Ring	-
15	R29354	2	O-Ring	-
16	-	2	Part 16	( T60361 NO LONGER AVAILABLE)
17	AT77264	4	KIT	-
18	19H2410	1	CAP SCREW	3/4" X 3"
19	-	1	Part 19	(SUB AT77264)
20	-	1	Part 20	(SUB AT77264)
21	AT64253	4	VALVE	BUCKET, (CROWD END AND BOOM, HEAD END)
22	AT64430	2	VALVE	(WITH ANTI-CAVITATION) (CROWD, HEAD END AND BOOM, ROD END)

CONTROL VALVE MOUNTING AND RELIEF VALVES [02E25]
