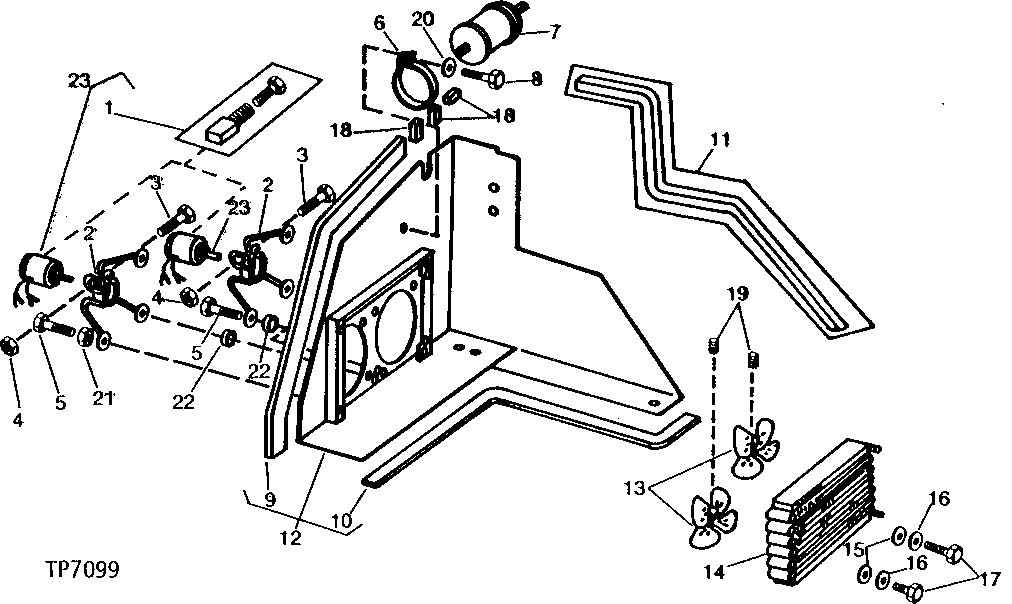

CONDENSER WITH MOTORS, DRYER AND SUPPORT [02C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT74308	2	KIT	-
2	AT56090	2	SUPPORT	(SUB AT71700 AND T74190)
2	AT71700	2	SUPPORT	(SUB FOR AT59208, THIS APPLICATION) (ALSO ORDER T74190, THIS APPLICATION)
3	19H3239	2	Cap Screw	3/8" X 1-1/4"
4	14H812	2	NUT	3/8"
5	19H2664	8	Cap Screw	5/16" X 3/4"
6	R53422	1	Clamp	-
7	AR59780	1	RECEIVER-DRYER	-
8	19H3065	1	Cap Screw	3/8" X 2"
9	-	1	Part 10	( T58379 USE IF AVAILABLE)
10	-	1	Part 11	( T58378 USE IF AVAILABLE)
11	U46655	1	ISOLATOR	-
12	AT56105	1	SUPPORT	-
13	AT58600	2	FAN	10" CONDENSOR
14	AT56087	1	CORE	-
15	T67811	4	WASHER	(SUB FOR T47392)
16	24H1287	4	Washer	9/32" X 5/8" X 0.065"
17	19H2337	4	Cap Screw	1/4" X 4"
18	R58666	3	ISOLATOR	-
19	22H922	2	Set Screw	0.190" X 1/4"
20	24M7096	1	Washer	0.413" X 0.709" X 0.063"
21	24H1292	8	Washer	11/32" X 3/4" X 0.120"
22	T74190	1	ISOLATOR	-
23	AT72475	2	ELECTRIC MOTOR	(SUB FOR AT56110, THIS APPLICATION) (ALSO ORDER AT58600, THIS APPLICATION)

CONDENSER WITH MOTORS, DRYER AND SUPPORT [02C03]
