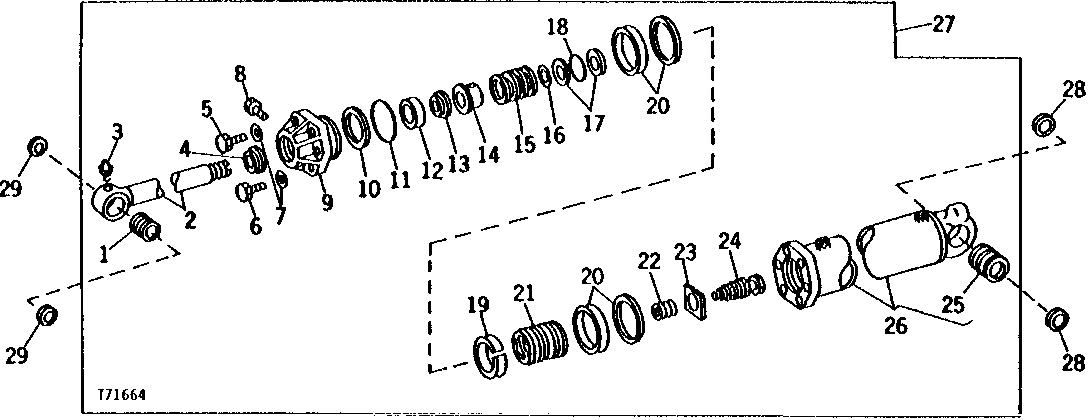

BUCKET CYLINDER (WITH U-CUP STYLE PISTON) [02E04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T46612	1	BUSHING	-
2	AT45310	1	ROD	-
3	JD7759	1	Lubrication Fitting	1/8", GREASE, STRAIGHT
4	T46617	1	SEAL	(RK)
5	19H3313	4	Cap Screw	1" X 4-1/2"
6	19H3314	2	Screw	1" X 5-1/4"
7	T30636	6	Washer	-
8	19H1895	2	CAP SCREW	1/2" X 3/4"
9	T46616	1	GUIDE	-
10	R78807	1	BACK-UP RING	(RK) (SUB FOR T46621, THIS APPLICATION)
11	T46620	1	O-RING	(RK)
12	T46618	1	WEAR RING	(RK)
13	R76773	1	SEAL	(RK) (SUB FOR T46619)
14	T57334	1	BUSHING	-
15	T46626	1	SPRING	-
16	T46629	1	WEAR RING	(PISTON BRAKE)
17	R78808	2	BACK-UP RING	(RK) (SUB FOR T59925)
18	T59924	1	RING	(RK)
19	R72663	1	WEAR RING	(RK) (USE WITH T46622 AND R70963) (SUB FOR T46624, THIS APPLICATION)
20	AR104162	2	SEAL	(RK) (USE WITH T46622 AND R70963) (SUB FOR T46623) (SUB FOR AR91556 AND AR95512, THIS APPLICATION)
21	T46622	1	PISTON	ONE WEAR RING AND TWO SEALS (USE WITH (2) AR104162 SEALS AND R72663 WEAR RING) (SUB R77651, RE14032 AND RE14033)
21	R70963	1	PISTON	(USE WITH (2) AR104162 SEALS AND R72663 WEAR RINGS) (SUB R77651, RE14032 AND RE14033)
22	T58997	1	SPRING	-
23	T57335	1	STRAP	-
24	AT56647	1	POPPET	-
25	T46610	1	BUSHING	-
26	RE13868	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AT45306 AND AR96279)
27	AT45305	1	CYLINDER	(SUB AR105292)
27	-	1	Part 29	(SUB FOR AR93239 AND AR96274) ( AR105292 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
28	T46611	2	SEAL	-
29	T46613	2	SEAL	-
