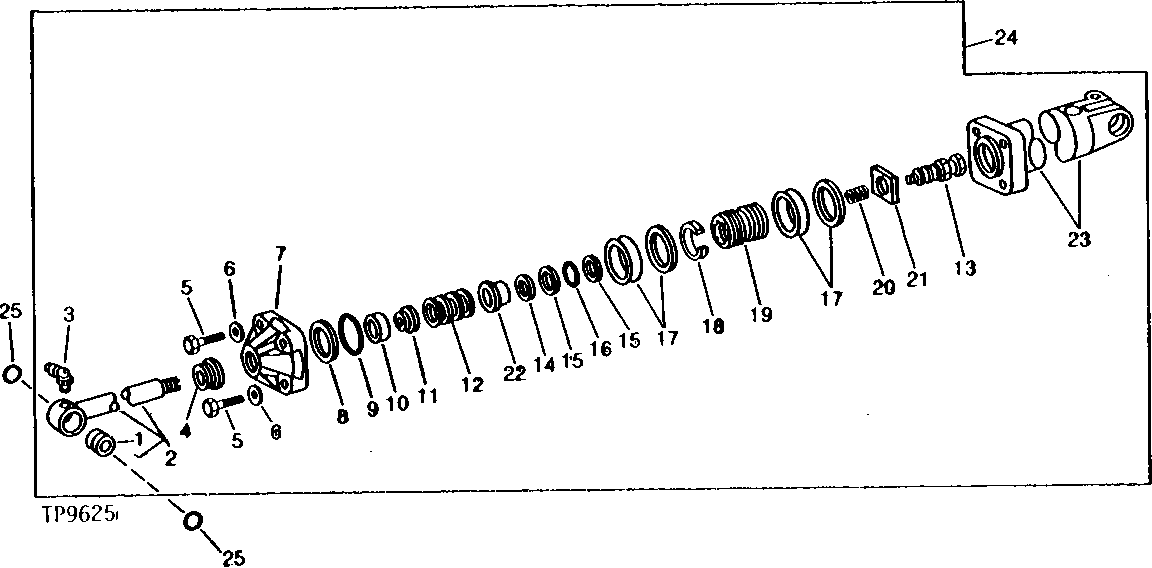

BOOM CYLINDER (WITH U-CUP STYLE PISTON) [02E12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T46634	1	BUSHING	-
2	AR92237	1	ROD	-
3	JD7781	1	Lubrication Fitting	1/8"
4	T46639	1	Seal	(RK)
5	19H3556	4	Cap Screw	HS, SAE 8, 1" X 4-1/4"
6	T30636	4	Washer	-
7	T59930	1	GUIDE	-
8	R78807	1	BACK-UP RING	(RK) (SUB FOR T46621, THIS APPLICATION)
9	T46620	1	O-RING	(RK)
10	T46640	1	WEAR RING	(RK)
11	T48355	1	SEAL	(RK)
12	T46645	1	SPRING	L. HAND
13	AT45320	1	POPPET	-
14	T46646	1	WEAR RING	BRAKE
15	R79122	2	Back-Up Ring	(SUB FOR T42032, THIS APPLICATION)
16	A5598R	1	O-Ring	(RK)
17	AR104162	2	SEAL	(RK) (USE WITH R70961) (SUB FOR AR95512)
18	R72663	1	WEAR RING	(RK) (USE WITH R70961)
19	R70961	1	PISTON	ONE WEAR RING AND TWO SEALS (USE WITH (2) AR104162 SEALS AND R72663 WEAR RING) (SUB R77650, RE14033, AND RE14034)
20	T57337	1	SPRING	-
21	T57336	1	STRAP	-
22	T46644	1	POPPET	-
23	RE13866	1	HYDRAULIC CYLINDER BARREL	(SUB FOR AT45314 AND AR96278)
24	AR96273	1	HYDRAULIC CYLINDER	(SUB FOR AR92236 AND AR93237) (SUB RE21201)
25	T46635	2	SEAL	-

BOOM CYLINDER (WITH U-CUP STYLE PISTON) [02E12]
