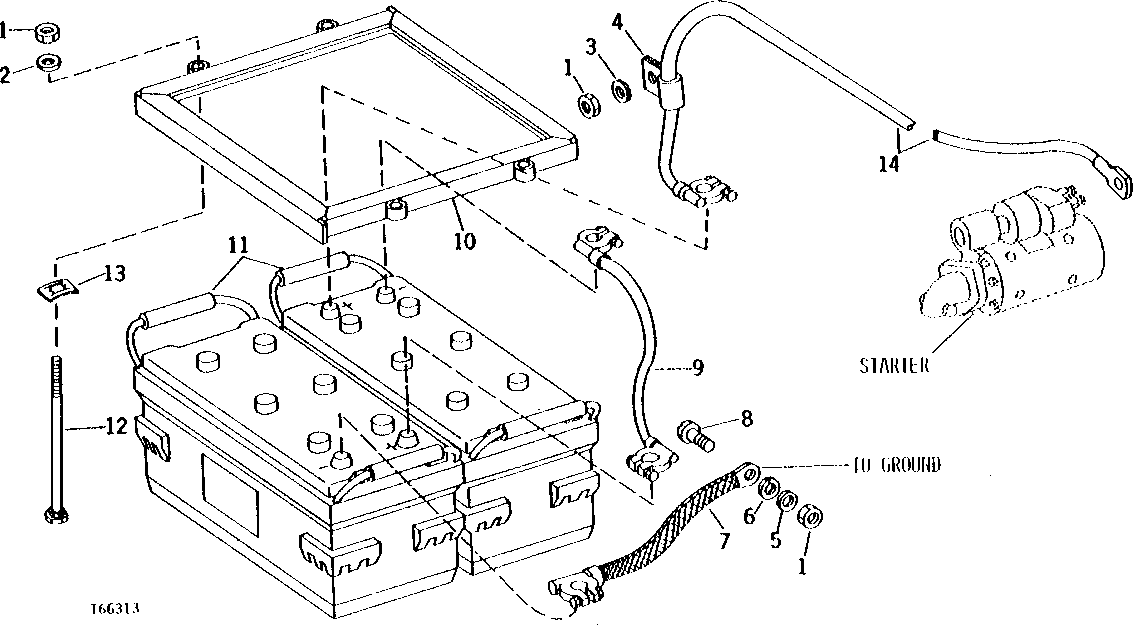

310-MINUTE RESERVE CAPACITY BATTERIES WITH CABLES AND MOUNTING [01J04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	6	NUT	3/8"
2	24M7101	4	Washer	11 X 34 X 3 MM
3	12H304	1	Lock Washer	3/8"
4	T38377	1	Clamp	(SUB FOR T24958, THIS APPLICATION) (USE WITH AR88485)
5	24H1219	1	Washer	7/16" X 1" X 0.083"
6	12H331	1	LOCK WASHER	3/8"
7	AT132773	1	Ground Cable	(SUB FOR AT25418)
8	03H1765	1	Bolt	3/8" X 3/4"
9	AT41131	1	BATTERY CABLE	(SUB FOR AR46231)
10	AT46397	1	FRAME	-
11	TY21754	2	DRY CHARGED BATTERY	DRY AND CHARGED, 12-VOLT, 800 COLD CRANKING AMPS AT -18°C (0°F), 310-MINUTE RESERVE CAPACITY, (SUB FOR AU42915 AND TY6105)
12	-	4	Part 12	( 03H2221 NO LONGER AVAILABLE)
13	U44618	4	PUSH NUT	-
14	AR88485	1	Battery Cable	(SUB FOR AR53096, THIS APPLICATION) (ALSO ORDER T38377)

310-MINUTE RESERVE CAPACITY BATTERIES WITH CABLES AND MOUNTING [01J04]
