TRANSMISSION SHIFTER CONTROL LEVERS AND SUPPORTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2117	1	Cap Screw	5/16" X 1-1/8"
2	R41920	1	Cap Screw	-
3	14H611	1	Nut	5/16"
4	19H1919	4	Cap Screw	1/4" X 5/8"
5	12H297	4	Lock Washer	1/4"
6	24H1287	4	Washer	9/32" X 5/8" X 0.065"
7	19H1800	4	Cap Screw	3/8" X 1-1/2"
8	12H304	8	Lock Washer	-
9	24M7096	4	Washer	10.500 X 18 X 1.600 mm
10	AR81083	1	Support	-
11	34H254	2	Spring Pin	1/8" X 1-1/2"
12	AR81097	1	Stop	RANGE SHIFTER
13	19H1914	2	Cap Screw	1/4" X 1"
14	14H786	2	Nut	1/4"
15	R64667	2	Bracket	-
16	R77572	1	Spacer	SUB FOR R64659
17	R28671	2	Dowel Pin	-
18	24H1292	4	Washer	11/32" X 3/4" X 0.120"
19	12M7032	4	Lock Washer	8.400 mm
20	14H785	4	Nut	5/16"
21	R72653	6	Snap Ring	-
22	AR81187	1	Plate	-
23	19H1227	1	Cap Screw	1/4" X 1/2"
24	12H302	1	Lock Washer	1/4"
25	24H1287	1	Washer	9/32" X 5/8" X 0.065"
26	R64634	1	Torsion Spring	-
27	R64664	1	Guide	SHIFT LEVER
28	03H1544	4	Bolt	5/16" X 1-1/4"
29	AR81084	1	Support	-
30	F2206R	1	Washer	-
31	R26871	3	Snap Ring	-
32	19H1801	1	CAP SCREW	3/8" X 2"
33	19H1731	2	Cap Screw	3/8" X 1"
34	R69473	1	Stop	PARK ARM
35	F3396R	2	Snap Ring	-
36	R56267	1	SPRING PIN	-
37	R64709	1	Support	-
38	R64711	1	Lever	(HI-LO)
39	R64658	1	Brace	-
40	R68208	1	Shim	.76 MM (.030")
41	AR80990	1	Lever	PARK LOCK
42	R64675	1	Pin Fastener	-
43	JD8862	2	NEEDLE BEARING	-
44	R30425	1	Pin Fastener	-
45	R64676	1	Lever	-

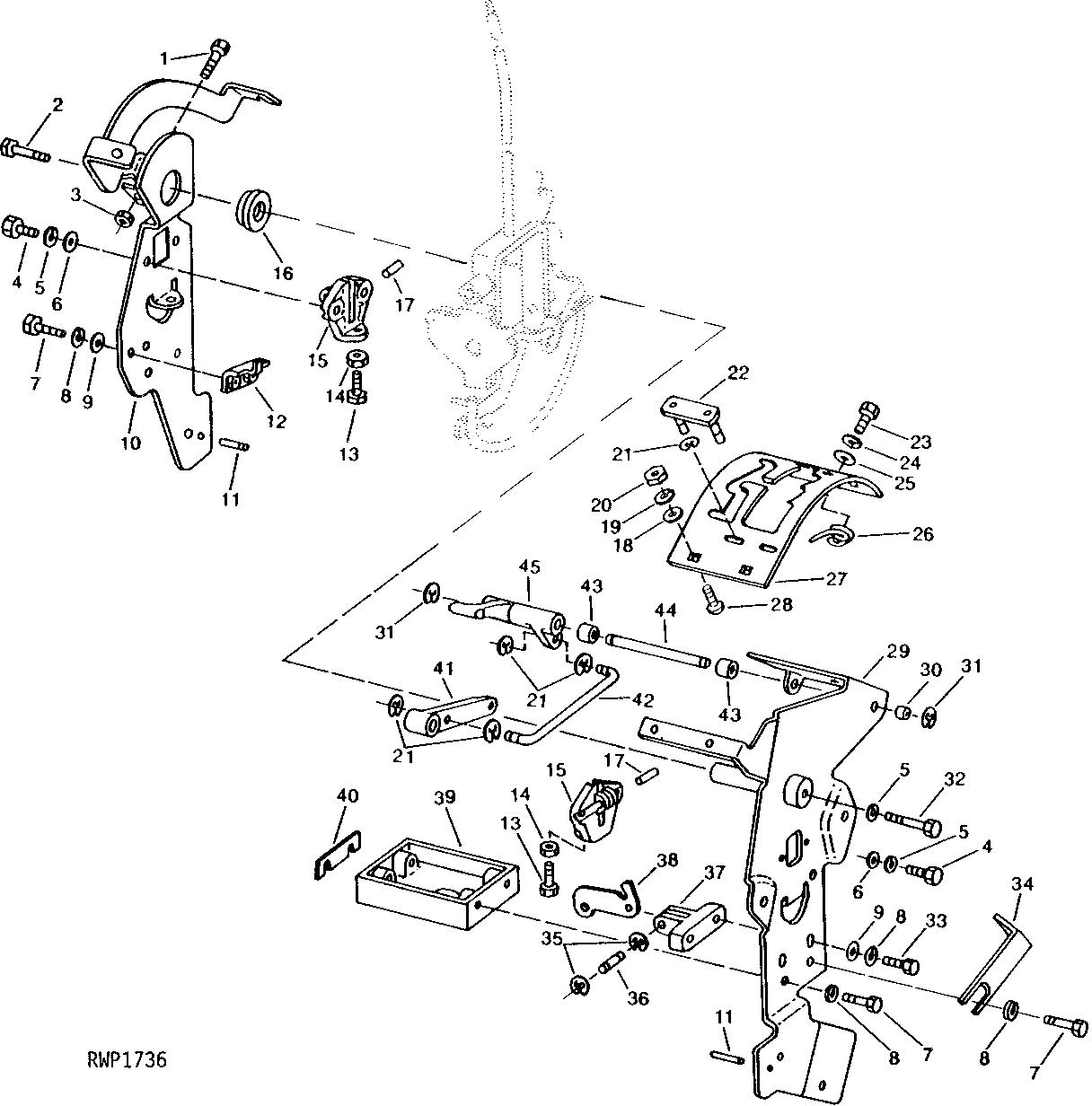

TRANSMISSION SHIFTER CONTROL LEVERS AND SUPPORTS
