TRANSMISSION SHIFTER CONTROL CABLES AND PARK LOCK CABLE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	11M7082	1	Cotter Pin	2.500 X 25 mm, SUB FOR 11H234 APPL
2	11M7082	2	Cotter Pin	2.500 X 25 mm, SUB FOR 11H234 APPL
3	R65563	4	Pin Fastener	-
4	R82766	2	Pin Fastener	SUB FOR R72660 APPL
5	T13606	4	Yoke	-
6	M3742T	2	Yoke	-
7	14H774	4	Nut	3/8"
8	14H649	2	Nut	1/4"
9	14H1076	5	Nut	3/8"
10	24M7106	6	Washer	10 X 18 X 2.500 mm
11	R47806	8	Clamp	-
12	34H254	4	Spring Pin	1/8" X 1-1/2"
13	19H1801	3	CAP SCREW	3/8" X 2"
14	T33483	4	CLAMP	-
15	19H1801	1	CAP SCREW	3/8" X 2"
16	R36235	3	Grommet	SUB FOR R66626 APPL
17	AR98043	1	Push Pull Cable	Speed Selector
17	R48718	1	Seal	(CONDUIT TO TERMINAL SLEEVE)
17	R48719	1	Seal	(SLEEVE TO INNER MEMBER INPUT END) SUB R48720
17	R48720	1	Seal	(SLEEVE TO INNER MEMBER OUTPUT END)
18	R48720	1	Seal	(SLEEVE TO INNER MEMBER OUTPUT END)
18	R48719	1	Seal	(SLEEVE TO INNER MEMBER INPUT END) SUB R48720
18	AR97899	1	Push Pull Cable	Range Selector
18	R48718	1	Seal	(CONDUIT TO TERMINAL SLEEVE)
19	AR88004	1	Push Pull Cable	Park Lock
20	19H2665	1	Cap Screw	3/8" X 1-5/8"
21	AR80828	1	Arm	-
22	34H313	1	Spring Pin	1/4" X 1-1/8"
23	R64695	1	Spring	-
24	19H1731	2	Cap Screw	3/8" X 1"
25	12H304	3	Lock Washer	3/8"
26	24H1298	1	Washer	3/8" X 5/8" X .030"
27	AR80723	1	Pin	-
28	R64527	1	Arm	Range Selector
29	19H1765	1	Cap Screw	3/8" X 1-3/4"
30	19H1800	1	Cap Screw	3/8" X 1-1/2"
31	R64531	1	Arm	Speed Selector
32	19H1765	1	Cap Screw	3/8" X 1-3/4"
33	24M7096	1	Washer	10.500 X 18 X 1.600 mm
34	28H1517	1	Washer	0.493" X 0.675" X 1/4", 1/2" X 1/4"
35	R68985	1	Bracket	-
36	R78019	1	Washer	SUB FOR T21397
37	19H1715	1	Cap Screw	3/4" X 3"
38	19H1819	1	Cap Screw	3/8" X 2-1/8"
39	19H1731	1	Cap Screw	3/8" X 1"

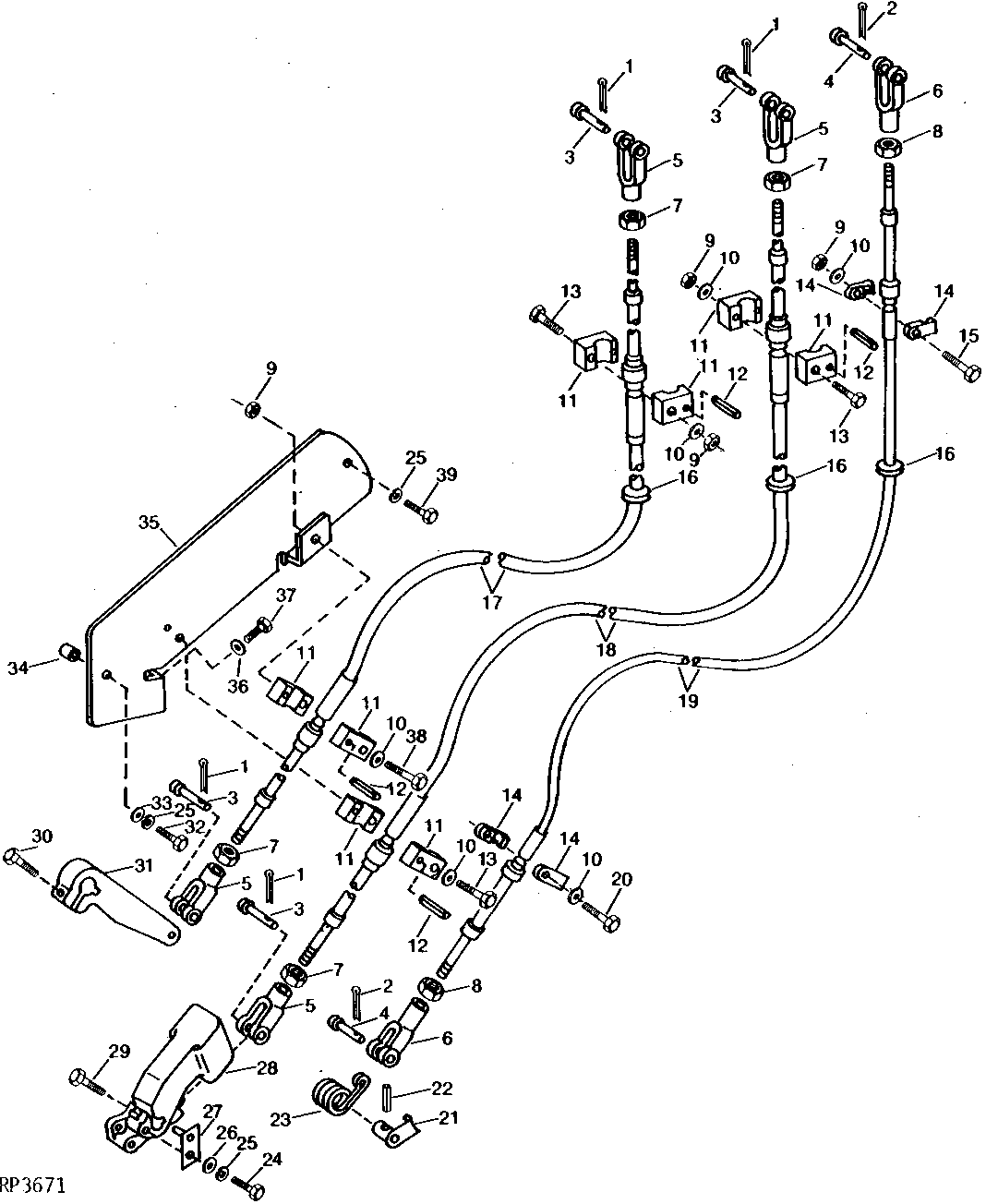

TRANSMISSION SHIFTER CONTROL CABLES AND PARK LOCK CABLE
