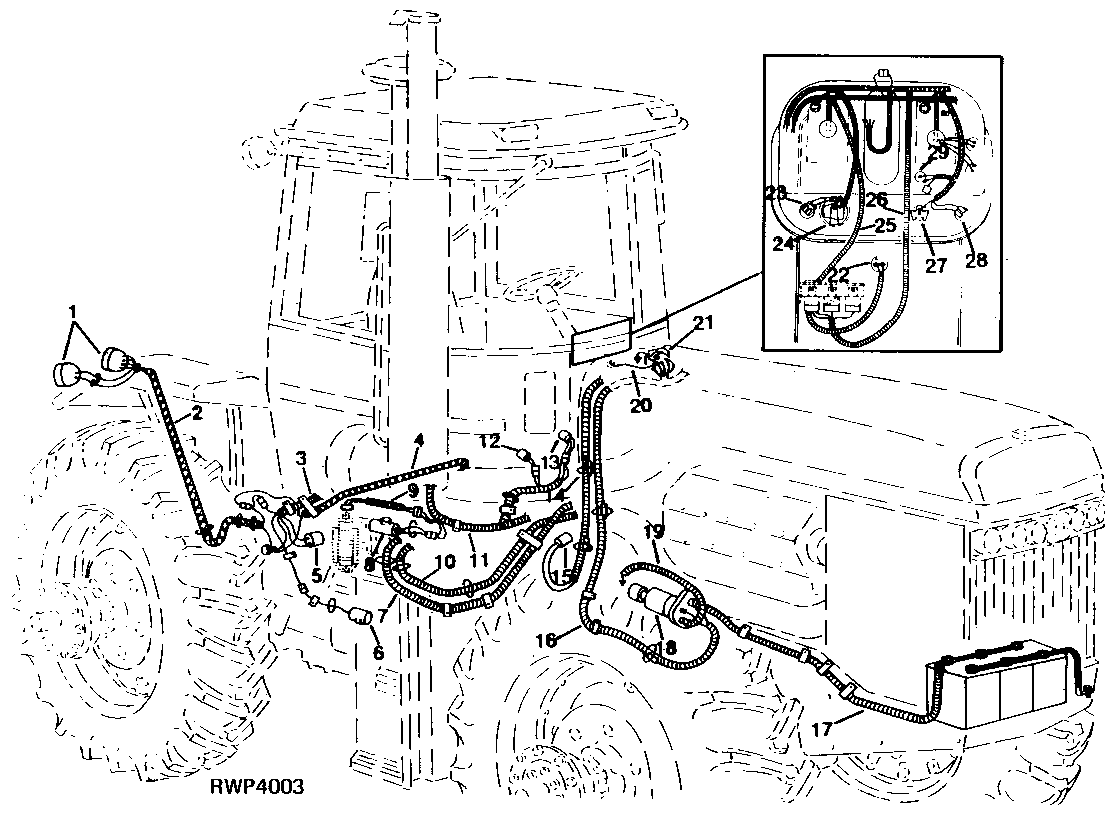

RIGHT SIDE WIRING

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE19075	4	Floodlamp	(HALOGEN) FLOOD, (SUB FOR RE10960)
2	AR85855	1	Wiring Harness	REAR FENDER
3	RE21507	1	Wiring Harness	REAR POWER
3	RE12710	1	Wiring Harness	REAR POWER
4	AR85854	1	Wiring Harness	LH REAR FENDER
5	RE39116	1	Switch Kit	NEUTRAL START, (SUB FOR RE12411)
5	RE14071	1	Wiring Harness	(WHEN ORDERING RE39116 FOR TRACTOR BUILT PRIOR TO SERIAL NO.)
6	RE32530	1	Solenoid Valve	DIFFERENTIAL LOCK, (SUB FOR RE12170 OR RE21726)
7	RE12707	1	Wiring Harness	LH SENSORS
8	RE16216	1	Fuel Pump	(ALSO ORDER AR52302) (SUB FOR RE12584)
9	RE12844	1	Wiring Harness	ETHER SOLENOID
10	RE12709	1	Wiring Harness	BULKHEAD
10	RE21506	1	Wiring Harness	BULKHEAD
11	RE12711	1	Wiring Harness	CAB LIGHTS AND ACCESSORIES
11	R72659	1	Clamp	-
12	AT101975	1	Switch	DIFFERENTIAL LOCK, (SUB FOR AT63480)
13	AR48725	1	Switch	DIMMER
14	RE12706	1	Wiring Harness	ENGINE SENSORS
15	RE25659	1	Hydr.Oil Temperature Sensor	CLUTCH TEMPERATURE, (SUB FOR RE12183 OR RE12184)
16	RE12703	1	Wiring Harness	ENGINE POWER
17	AR96116	1	Battery Cable	POSITIVE
18	TY6723	1	Starter Motor	(REMANUFACTURED CHAMPION)
18	AR46820	1	WIRING LEAD	SOUND-GARD BODY GROUND
18	SE501450	1	Starter Motor	(REMANUFACTURED FOR TY6723)
18	RE10321	1	Starter Motor	(SUB TY6723)
19	AR97555	1	Ground Cable	STARTER GROUND
20	RE11170	1	Wiring Lead	(SOUND-GARD BODY SERIAL NO.) STARTER RELAY TO CIRCUIT BREAKER
20	RE16962	1	Starter Motor Kit	(SOUND-GARD BODY SERIAL NO.) STARTER RELAY TO CIRCUIT BREAKER (NLR)
21	RE164448	1	Starter Relay	STARTER CIRCUIT
22	AR84545	1	Travel Warning Alarm	WARNING
23	R39554	1	Switch	ETHER STARTING AID
24	AR48724	1	Rotary Switch	LIGHT
24	AR83425	1	Elec. Connector Housing	-
25	RE12419	1	Wiring Harness	INSTRUMENT PANEL SMU, (SUB RE16541)
25	RE16541	1	Wiring Harness	INSTRUMENT PANEL SMU
26	RE12420	1	Instrument PNL WRG Harness	INSTRUMENT PANEL POWER
26	RE21505	1	Wiring Harness	INSTRUMENT PANEL
27	AR58126	1	Rotary Switch	KEY
28	AR21823	1	SWITCH	HORN
29	AR56766	1	Housing	LIGHTER
