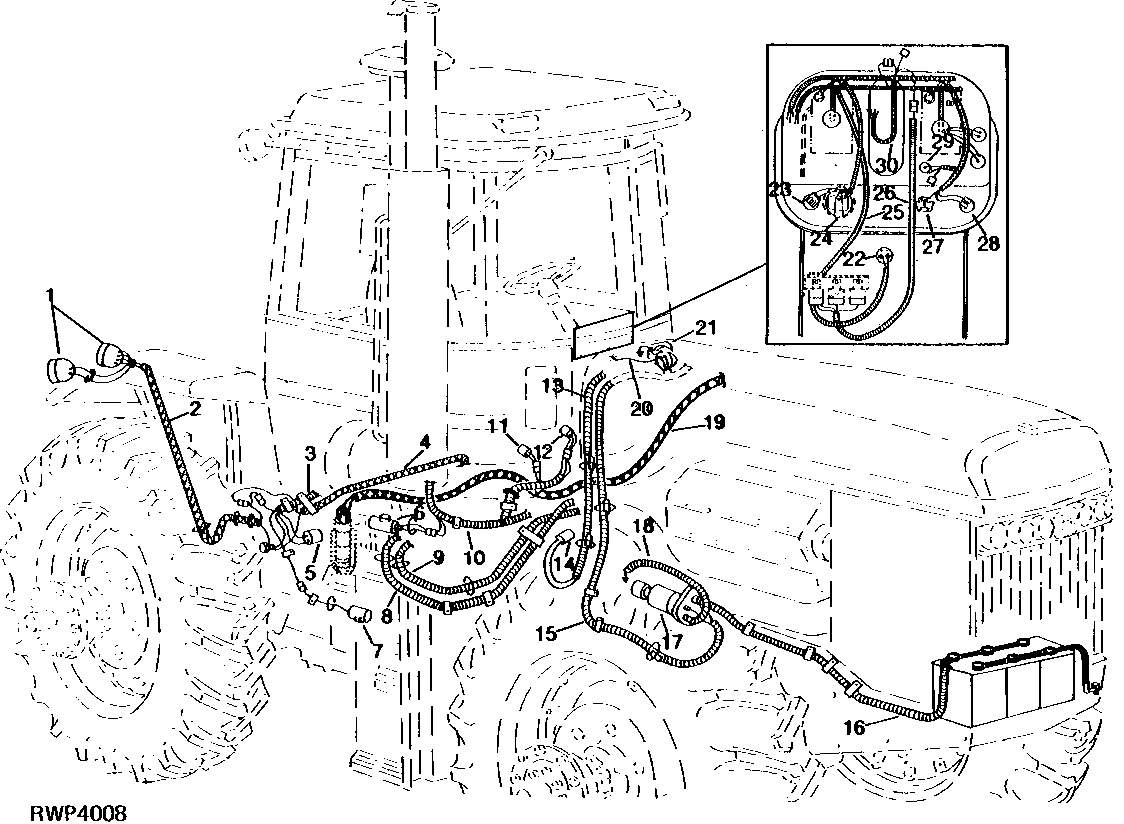

Right Side Wiring

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE19075	4	Floodlamp	(Halogen) SUB FOR RE10960
2	AR85855	1	Wiring Harness	Rear Fender
3	RE14074	1	Wiring Harness	SUB FOR RE14073 OR AR104437; Rear Power
3	RE39116	1	Switch Kit	SUB FOR RE12411; Neutral Start
4	AR85854	1	Wiring Harness	LH Rear Fender
5	RE39116	1	Switch Kit	SUB FOR RE12411 OR RE14070; Neutral Start
5	RE14071	1	Wiring Harness	-
6	RE12330	1	Electrical Connector Assy	(Not Illustrated)
6	AR52302	1	CIRCUIT BREAKER	(Not Illustrated)
6	RE16216	1	Fuel Pump	(Not Illustrated)
6	AR103518	1	Fuel Pump	ORDER RE16216, AR52302 AND RE12330
7	RE15522	1	Kit	(When Subbing New Sensor, Solenoid Or Switch, Also Replace Cannon Round Connector On Wire) SUB FOR APPL AT58082; Differential Lock
8	AR94863	1	Wiring Harness	LH Sensors
9	AR94896	1	Wiring Harness	Bulkhead
10	AR101741	1	Wiring Harness	Cab Lights And Accessories
11	AT101975	1	Switch	SUB FOR AT63480; Differential Lock
12	AR48725	1	Switch	Dimmer
13	AR94862	1	Wiring Harness	Engine Sensors
14	R78060	2	Elec. Connector Terminal	(Not Illustrated)
14	R78063	2	Elec. Connector Seal	(Not Illustrated)
14	RE12363	1	Electrical Connector Assy	(Not Illustrated)
14	RE25659	1	Hydr.Oil Temperature Sensor	(Not Illustrated)
14	AR105337	1	Sensor	(When Subbing New Sensor, Solenoid Or Switch, Also Replace Cannon Round Connector On Wire) ORDER RE25659, RE12331, RE12363, (2) R78060 AND (2) R78063; Clutch Temperature
14	RE12331	1	Electrical Connector Assy	(Not Illustrated)
15	AR104067	1	Wiring Harness	Engine Power
16	AR96116	1	Battery Cable	Positive
17	RE10321	1	Starter Motor	ORDER TY6723
17	TY6723	1	Starter Motor	-
17	AR46820	1	WIRING LEAD	Sound-Gard Body Ground
17	SE501450	1	Starter Motor	REMAN FOR TY6723
18	AR97555	1	Ground Cable	Starter Ground
19	RE13125	1	Wiring Harness	Ether Solenoid
20	RE16962	1	Starter Motor Kit	SUB FOR RE11170; Starter Relay To Circuit Breaker
21	RE164448	1	Starter Relay	Starter Circuit
22	AR84545	1	Travel Warning Alarm	Warning
23	R39554	1	Switch	Ether Starting Aid
24	AR48724	1	Rotary Switch	Light
24	AR83425	1	Elec. Connector Housing	-
25	RE10253	1	Wiring Harness	Instrument Panel SMU
26	RE10216	1	Wiring Harness	Light Relays
27	AR58126	1	Rotary Switch	Key
28	AR21823	1	SWITCH	Horn
29	AR56766	1	Housing	Lighter
30	RE12420	1	Instrument PNL WRG Harness	SUB FOR RE10254; Instrument Panel Power
