Performance Trak III Multi-Function Monitor, Analog Tachometer

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	1	Tie Band	-
2	RE22589	1	Bulb	-
3	RE21112	1	MONITOR CONSOLE	INCLUDES RE22589
4	19H1978	3	Cap Screw	7/16" X 1-1/2"
4	12H293	3	Lock Washer	7/16"
5	14H1047	3	Nut	7/16"
5	14H786	2	Nut	1/4"
6	19H1914	2	Cap Screw	1/4" X 1"
7	24H1287	4	Washer	9/32" X 5/8" X 0.065"
8	R82423	2	Nut	RUBBER
9	R83055	2	WING SCREW	-
10	RE21113	1	WIRING HARNESS	ALSO ORDER RE21517
11	R83109	1	BRACKET	-
12	U46662	1	Elec. Connector Terminal	-
13	R77489	1	Elec. Connector Terminal	-
13	R84158	1	ELEC. CONNECTOR TERMINAL	-
14	AR67855	3	Electrical Connector Assy	-
15	RE21738	1	MONITOR CONSOLE	PERFORMANCE TRAK II MINI-MONITOR (FI)
16	RE21098	1	Wiring Harness	-
17	RE21517	1	Wiring Harness	ORDER COMPONENTS, EXTENSION KIT
17	12H293	3	Lock Washer	(RADAR BRACKET TO TRANSMISSION LUBE HOUSING SCREW) 7/16"
17	19H2324	3	Cap Screw	(RADAR BRACKET TO TRANSMISSION LUBE HOUSING SCREW) 7/16" X 4-1/2"
17	28H1508	1	Spacer	(RADAR BRACKET TO TRANSMISSION LUBE HOUSING SCREW) 0.493" X 0.675" X 1-1/4"
17	28H1622	2	Bushing	(RADAR BRACKET TO TRANSMISSION LUBE HOUSING SCREW) 0.493" X 0.675" X 3-1/4"
17	28H1535	2	Spacer	(RADAR BRACKET TO TRANSMISSION SUMP LINE SHIELD BRACKET SCREW) 0.493" X 0.675" X 2-3/4"
17	12H304	2	Lock Washer	(RADAR BRACKET TO TRANSMISSION SUMP LINE SHIELD BRACKET SCREW) 3/8"
17	19H3404	2	Cap Screw	(RADAR BRACKET TO TRANSMISSION SUMP LINE SHIELD) 3/8" X 4", HS, SAE 8
17	R44302	1	Tie Band	-

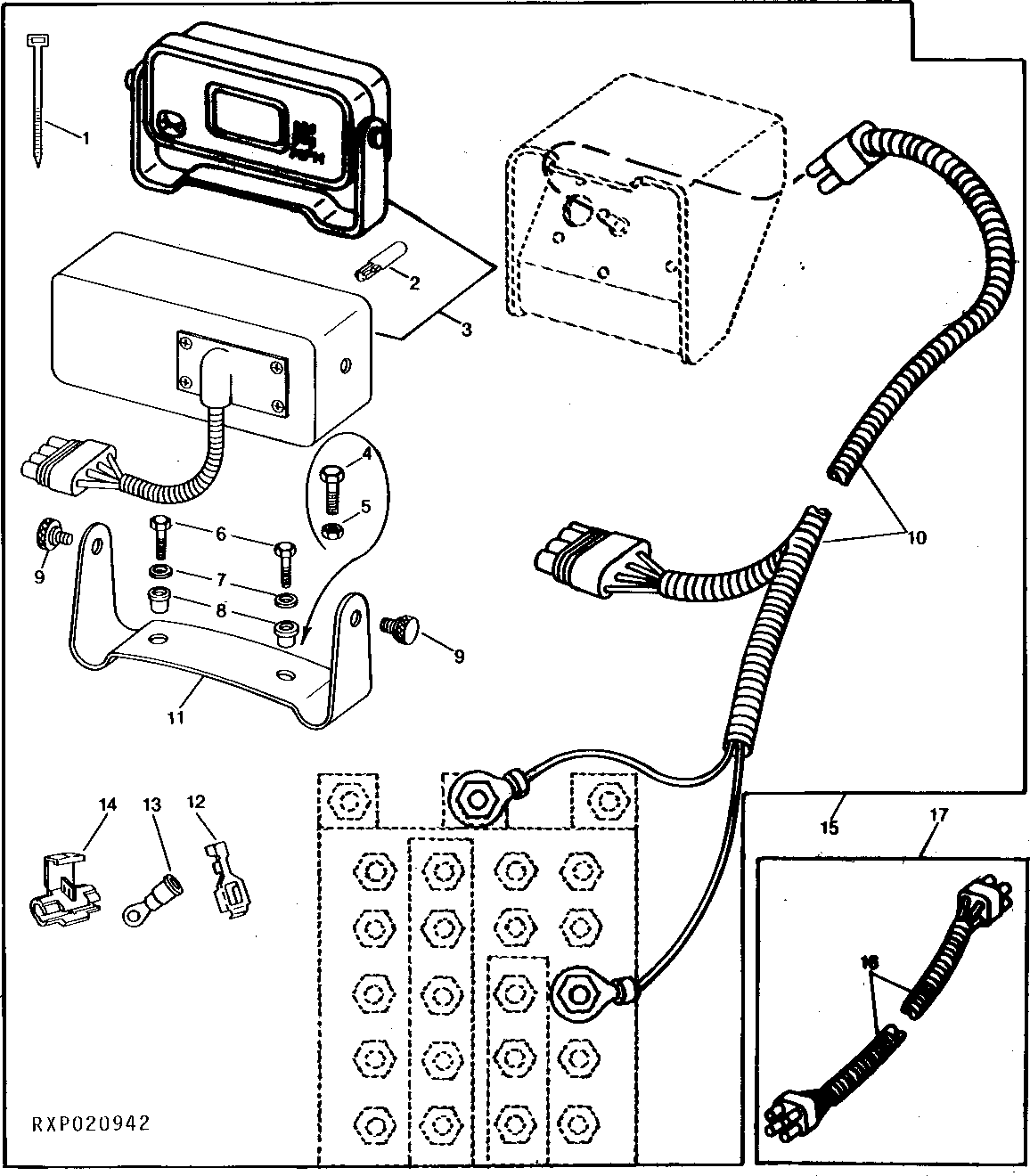

Performance Trak III Multi-Function Monitor, Analog Tachometer
