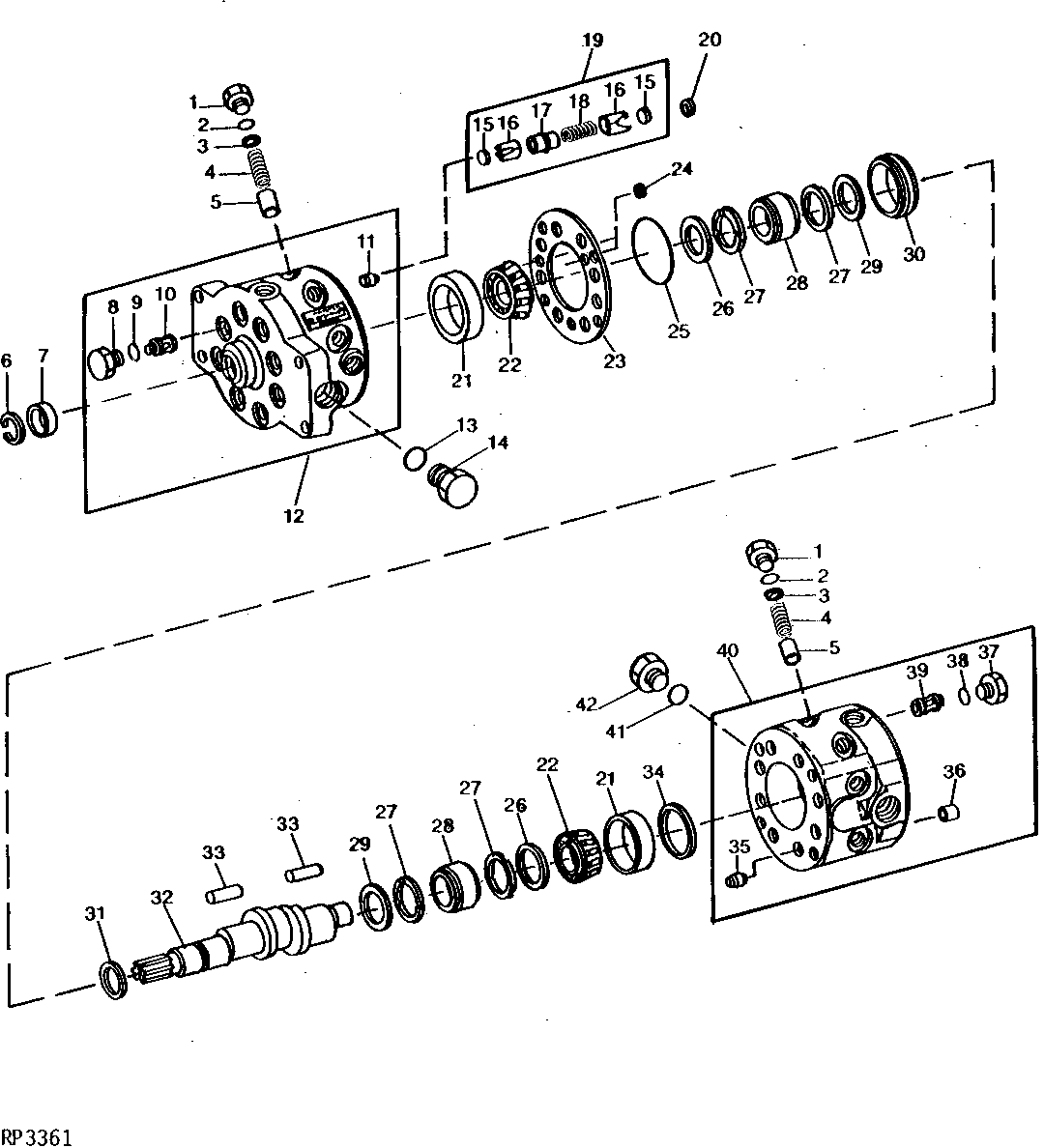

HYDRAULIC PUMP - MODEL LA1-LA2-LE1-LE2

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R45438	16	Fitting	-
2	R56463	16	O-Ring	-
3	R56749	16	DUST SHIELD	(SUB FOR (2) AR101236)
4	R62372	8	Spring	(AR76762 NLA)
5	R27150	16	PISTON	-
6	R26137	1	Snap Ring	-
7	RE28790	1	SEAL	(SUB FOR AR52224)
8	R78293	8	FITTING	-
9	R27149	8	O-Ring	-
10	AR53301	8	VALVE	(INLET)
11	R105583	8	Valve Seat Insert	-
12	RE11807	1	HOUSING	PRIMARY (MODEL PE1) (MARKED R71661) (SUB FOR AR94287)
13	U13639	1	O-Ring	-
14	R39741	1	Drain Plug	-
15	R49297	16	DISK	-
16	R48738	16	GUIDE	-
17	R72887	8	STOP	-
18	R39208	8	Spring	-
19	AR96614	8	VALVE	(OUTLET)
20	R69279	8	Washer	-
21	JD8223	2	Bearing Cup	-
22	JD8192	2	BEARING CONE	-
23	R70686	1	PLATE	-
24	R56755	2	WASHER	-
25	R56757	1	O-Ring	-
26	R77903	2	WASHER	-
27	R72507	4	Thrust Washer	-
28	R80558	2	Bearing Race	(SUB FOR R72506)
29	R77905	2	THRUST WASHER	(SUB FOR R72138)
30	R70726	1	SLEEVE	-
31	R77611	1	SEALING WASHER	(SEALING) (SUB FOR R68252 OR RE11777)
32	R71597	1	SHAFT	-
33	R45422	50	NEEDLE ROLLER	-
34	R27479	1	SHIM	TK=0.25 MM (.010")
34	R27478	1	SHIM	TK=0.15 MM (.006")
35	R105583	8	Valve Seat Insert	-
36	R36728	1	BUSHING	-
37	R51912	8	FITTING	-
38	R27149	8	O-Ring	-
39	AR53301	8	VALVE	(INLET)
40	RE13614	1	HOUSING	SECONDARY, (MARKED R71662) (SUB RE15822) (ALSO ORDER RE15821) (SUB FOR AR94288)
40	RE15815	1	HOUSING	SECONDARY, (MARKED R79732) (SUB FOR AR94288, RE13614 OR RE15822)
41	R29936	1	O-Ring	-
42	R36636	1	Drain Plug	-
..	RE11716	1	Hydraulic Pump	(SUB FOR AR93535 OR RE11714)

HYDRAULIC PUMP - MODEL LA1-LA2-LE1-LE2
