FRONT DIFFERENTIAL FLEXIBLE OIL LINES AND SUPPORT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F3171R	2	O-Ring	-
3	19H1731	1	Cap Screw	3/8" X 1"
5	12H304	1	Lock Washer	3/8"
6	24M7096	1	Washer	10.500 X 18 X 1.600 mm
7	14H1076	1	Nut	3/8"
8	AR85817	1	Hydraulic Hose	RETURN
9	AR86009	1	Oil Line	-
10	R39597	1	ADAPTER FITTING	-
11	R30903	1	O-Ring	-
12	R51494	1	WASHER	ALUMINUM
13	AR34569	1	FITTING	-
14	AR90838	1	Hose	DIFFERENTIAL LOCK
15	R36040	1	Fitting	-
16	19H1765	2	Cap Screw	3/8" X 1-3/4"
17	R73729	1	Support	-
18	24H1341	1	Washer	17/32" X 15/16" X 0.060"
19	R27296	1	Nut	-
20	R26572	1	Nut	-
21	24H1355	1	Washer	37/64" X 1-1/8" X 0.120"
22	12H304	2	Lock Washer	3/8"
23	14H1076	2	Nut	3/8"
24	R27238	1	Fitting	-
25	19H2284	4	Cap Screw	3/8" X 7/8"
26	AR90837	1	Hydraulic Hose	DIFFERENTIAL LUBE
27	12H304	4	Lock Washer	3/8"
28	24M7096	7	Washer	10.500 X 18 X 1.600 mm
29	R66191	1	Guard	-
2A	AT48506	1	Elbow Fitting	45°
2B	R27267	1	Fitting	(SUB AT48506, THIS APPLICATION)
4A	T43361	1	Clip	-
4B	R76477	1	Tie Band	(SUB FOR R45440)

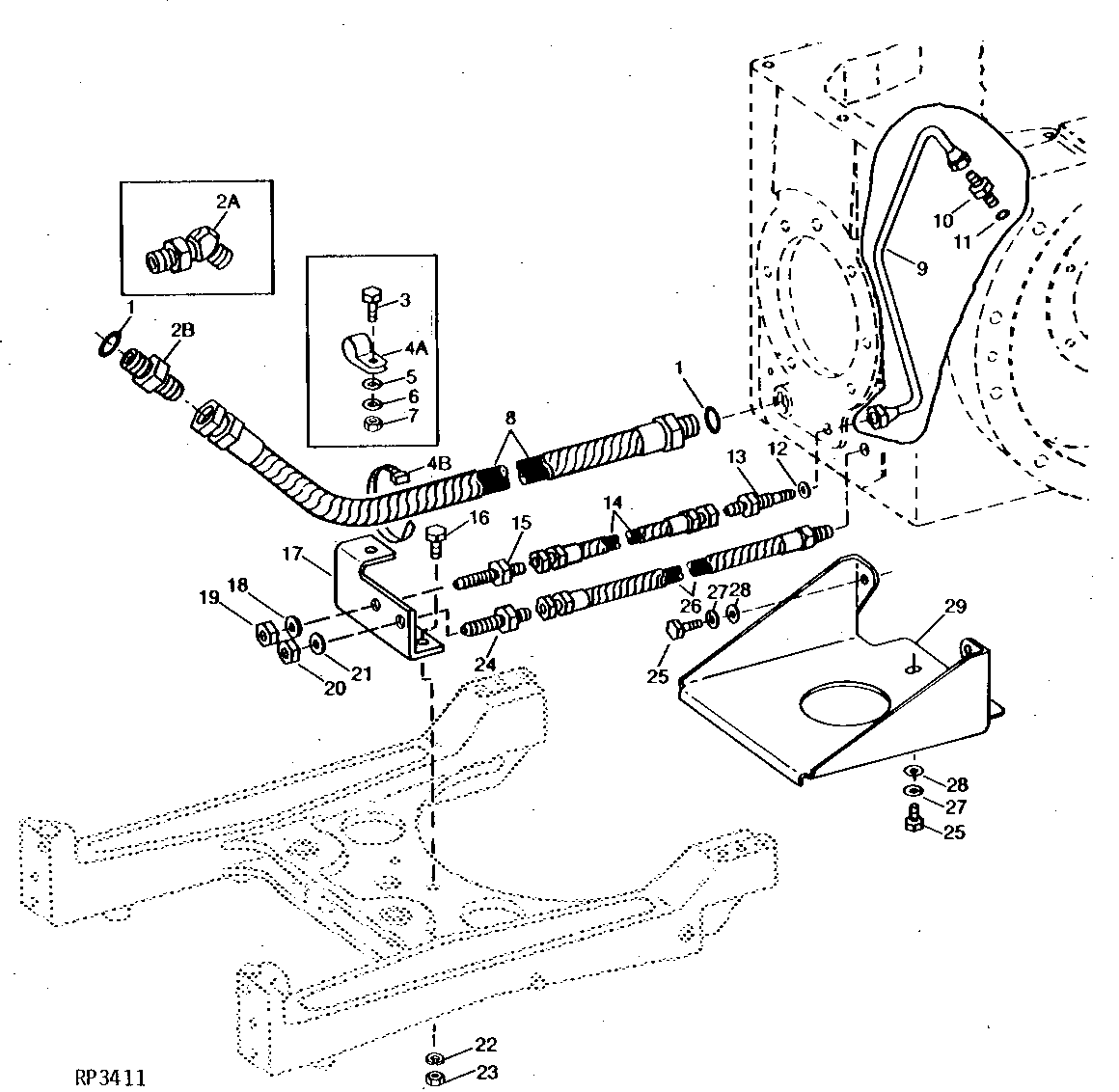

FRONT DIFFERENTIAL FLEXIBLE OIL LINES AND SUPPORT
