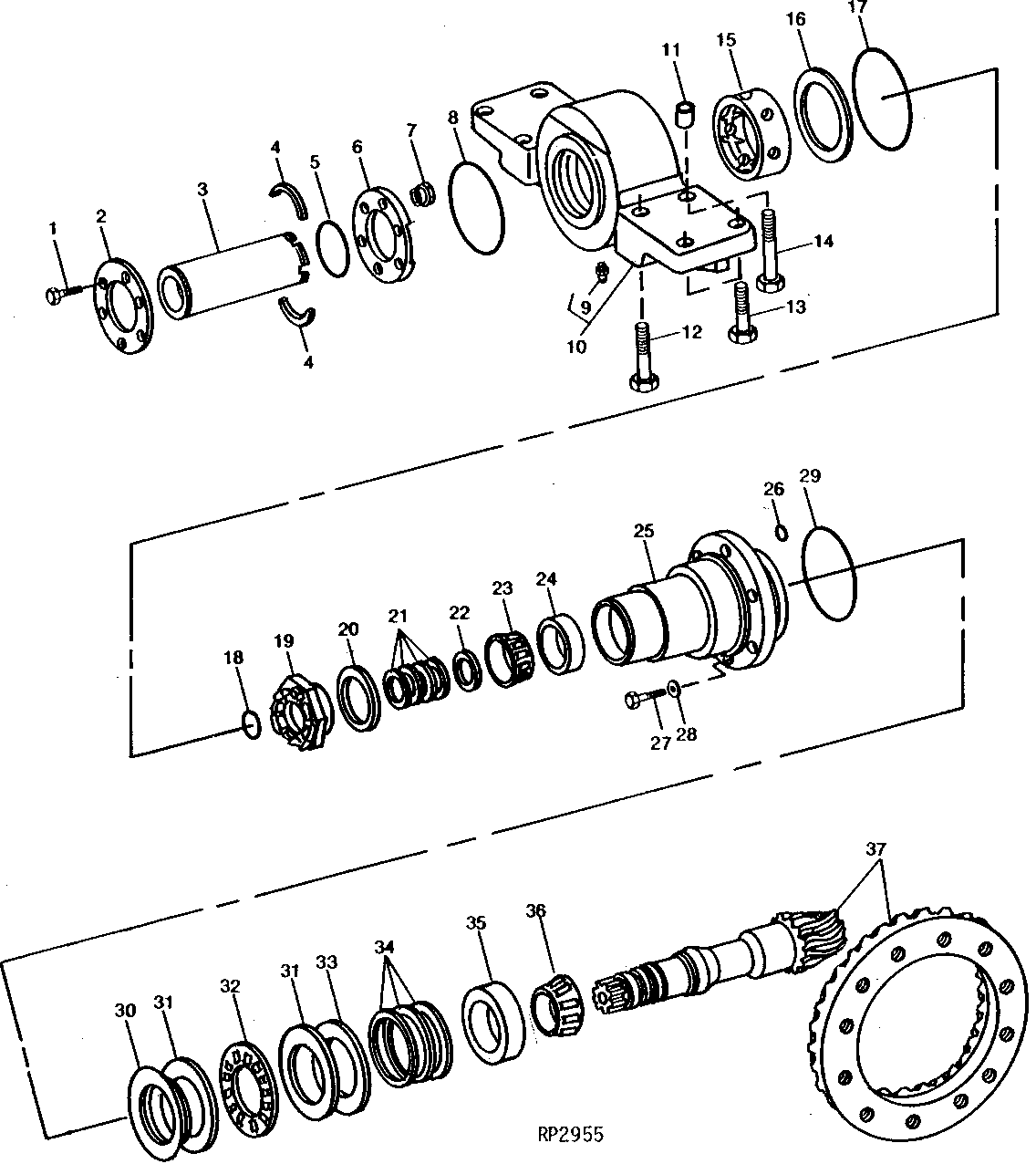

FRONT DIFFERENTIAL DRIVE SHAFT ASSEMBLY AND SUPPORT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1800	6	Cap Screw	3/8" X 1-1/2"
2	R62784	1	Retainer	-
3	R57251	1	Splined Coupling	-
4	R62785	2	Washer	-
5	U11017	1	O-Ring	-
6	R62783	1	Retainer	-
7	T11234	6	Lock Nut	-
8	R68543	1	O-Ring	-
9	R68717	1	Pressure Relief Valve	-
9	15H558	1	Pipe Plug	1/8"
10	AR103874	1	Support	(MARKED R70308) (INCLUDES KEY 11)
11	T30008	2	Bushing	-
12	19H2090	2	CAP SCREW	7/8" X 3-1/2"
13	19H1782	4	Cap Screw	3/4" X 2-1/4"
14	19H2693	2	Cap Screw	7/8" X 4-1/4"
15	R78266	1	Bushing	(SUB FOR R58696)
16	R37439	1	WASHER	-
17	R68544	1	O-Ring	-
18	B3690R	1	O-Ring	-
19	R57051	1	Nut	-
20	R36423	1	Seal	(SUB FOR AR82993, THIS APPLICATION)
21	R58258	1	Shim	TK=0.38 MM (.015")
21	R58256	1	Shim	TK=0.25 MM (.010")
21	R58255	1	Shim	TK=0.18 MM (.007")
21	R58257	1	Shim	TK=0.31 MM (.012")
22	R58479	1	Washer	-
23	JD8941	1	Bearing Cone	(SUB FOR JD9068, THIS APPLICATION)
24	JD8255	1	Bearing Cup	-
25	R72849	1	Bearing Housing W/O Bearing	-
26	R26149	1	PACKING	-
27	R68206	6	Cap Screw	-
28	R47172	6	Washer	-
29	R27796	1	O-Ring	-
30	R72848	1	Disk Spring	(NOT USED WITH JD10377) USED WITH JD9004 ONLY
31	JD10191	2	Thrust Bearing Race	(NOT USED WITH JD10377) USED WITH JD9004 ONLY
32	JD10159	1	Needle Bearing	(NOT USED WITH JD10377) USED WITH JD9004 ONLY
33	JD9920	1	Thrust Bearing Race	(NOT USED WITH JD10377) USED WITH JD9004 ONLY
34	R35365	1	Shim	TK=0.08 MM (.003")
34	R35366	1	Shim	TK=0.13 MM (.005")
34	R35367	1	Shim	TK=0.25 MM (.010")
35	JD8280	1	Bearing Cup	-
36	JD10377	1	Bearing Cone	(SUB FOR JD9004)
37	AR92833	1	Gear	SUB FOR AR92897
..	RE10771	1	Toolbox	FRONT DIFFERENTIAL MOUNTING SEAL REPAIR
..	AR106045	1	Differential	(COMPLETE, LESS AXLES) (SUB RE13984 NLA)

FRONT DIFFERENTIAL DRIVE SHAFT ASSEMBLY AND SUPPORT
