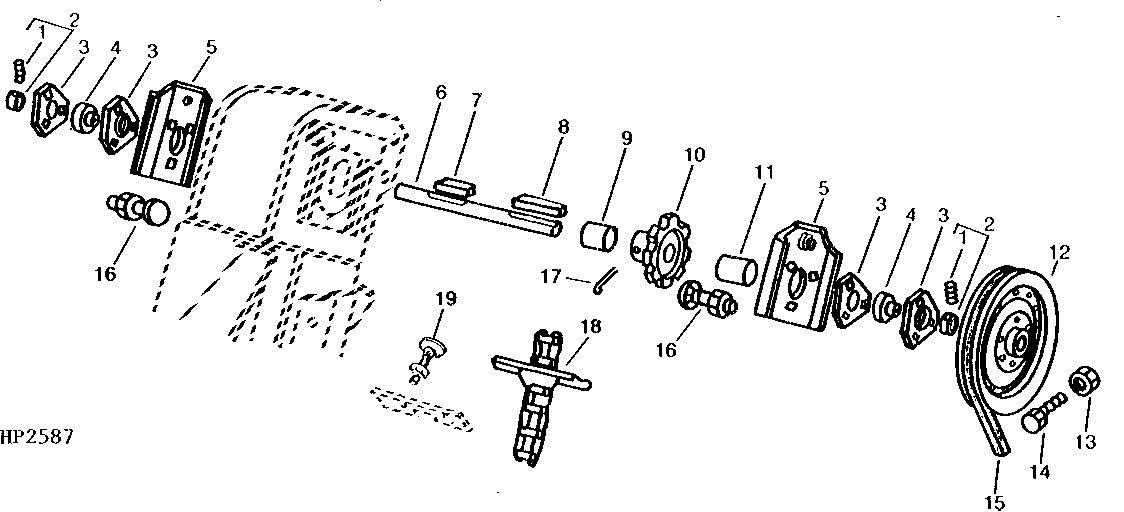

UPPER CLEAN GRAIN ELEVATOR, CONVEYOR CHAIN, SHAFT, SHEAVE, AND SPROCKET (464351 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H899	2	Set Screw	3/8" X 1/2"
2	JD8544	2	Bearing	-
3	E10018	4	Pressed Flanged Housing	-
4	JD8545	2	Ball Bearing	-
5	AH105501	2	Bracket	-
5	AH112084	2	Bracket	-
6	H106314	1	Shaft	-
7	-	1	Part 8	(5/16" X 5/16" X 2"), (CUT FROM H64375)
8	-	1	Part 9	(1/4" X 1/4" X 1-3/8"), (CUT FROM H64374)
9	H109226	1	Spacer	-
10	H91334	1	Chain Sprocket	Z=8
11	H109225	1	Spacer	-
12	AH84894	1	Pulley	268 MM (10-1/2") DIA.
13	14H732	2	Nut	3/8"
14	22H853	2	Set Screw	3/8" X 7/8"
15	H77766	1	V-Belt	-
16	14H812	6	NUT	3/8"
16	03H1765	6	Bolt	3/8" X 3/4"
16	12H304	6	Lock Washer	3/8"
17	11H244	1	Cotter Pin	3/16" X 2-1/2"
18	C10263	1	Track Chain W/O Shoes	(FOR OFFSET LINK)
18	AH87765	27	Chain Link	(FOR PADDLES)
18	14H786	54	Nut	1/4", (STEEL CLEANING PADDLE)
18	19H1948	54	Cap Screw	1/4" X 3/4", (STEEL CLEANING PADDLE)
18	AH86897	54	Bolt	W/NUT (RUBBER PADDLE) (REPLACES RIVETS)
18	H106324	27	Paddle	(STEEL CLEANING)
18	H106323	27	Paddle	(RUBBER)
18	AC14974	1	Pin Fastener	-
18	AC11779	1	Pin Fastener	-
18	C10233	1	Chain Link	(OFFSET) (WITH PIN)
18	C10232	1	Link	(ROLLER)
18	AH134818	1	Link Chain	-
18	AH123789	1	Link Chain	(SUB AH134818)
18	AH118287	1	Link Chain	(CA-550 ROLLER CHAIN) (27 PADDLES), (SUB FOR AH105505) (SUB AH123789)
19	AH86897	54	Bolt	(RUBBER PADDLE), (SUB FOR H121890)
19	M40333	54	Lock Nut	(RUBBER PADDLE)

UPPER CLEAN GRAIN ELEVATOR, CONVEYOR CHAIN, SHAFT, SHEAVE, AND SPROCKET (464351 - )
