TRANSMISSION COUNTERSHAFT, INPUT SHAFT, GEARS, AND BEARINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H100839	1	Plug	-
2	E12201	1	Snap Ring	-
3	JD7449	1	Bearing Cup	-
4	JD8134	1	BEARING CONE	-
5	H101003	1	Countershaft	(SUB H105205)
5	H105205	1	Shaft	-
6	JD8979	1	Bearing Cone	-
7	JD8267	1	Bearing Cup	-
8	H77814	1	Shim	0.05 MM (0.002"), PLASTIC
8	H77815	1	Shim	0.076 MM (0.003"), PLASTIC
8	H77816	1	Shim	0.127 MM (0.005"), ALUMINUM
8	H77817	1	Shim	0.254 MM (0.010"), ALUMINUM
8	H77818	1	Shim	0.508 MM (0.020"), ALUMINUM
9	H77812	1	Cradle	-
10	U14273	1	Breather	-
11	19H1731	6	Cap Screw	3/8" X 1"
12	R26214	1	SNAP RING	1.93 MM (0.076")
12	R26215	1	SNAP RING	2 MM (0.079")
12	R26216	1	SNAP RING	2.08 MM (0.082")
12	R26217	1	SNAP RING	2.16 MM (0.085")
13	JD8237	1	Bearing Cup	-
14	JD8902	1	Bearing Cone	-
14	JD10182	1	Bearing Cone	-
15	AH109692	1	Shaft	(USE WITH R33476 AND H111170 ON MACHINES THRU SERIAL NO. 513950)
15	H93759	1	Shaft	(SUB AH109692)
16	26H77	2	Shaft Key	3/16" X 3/4"
17	H75358	1	Dowel Pin	-
18	H75185	1	Pinion	(SUB H105209)
18	H105209	1	Pinion	Z=23
19	H75183	1	Shift Collar	-
20	R33712	1	Shift Collar	DRIVE
21	R26218	1	Snap Ring	-
22	H75195	1	Pinion	(SUB H105206)
22	H105206	1	Pinion	Z=15
23	R33476	1	SNAP RING	(USE WITH AH109692 AND H111170 ON MACHINES THRU SERIAL NO. 513950)
24	H110733	1	Spacer	(SUB H111170)
24	H111170	1	Spacer	(USE WITH AH109692 AND R33476 ON MACHINES THRU SERIAL NO. 513950)
24	H100192	1	Spacer	(SUB H110733)
25	R33475	1	SNAP RING	-
26	JD8294	1	Bearing Cone	-
27	JD8257	1	Bearing Cup	-
28	H77811	1	Sleeve	-
29	H82233	1	Bushing	-
30	H82232	1	Washer	-
31	H82234	1	Plate	-
32	AH76501	1	Rotor	-
32	AH128528	1	Rotor	-
33	H82231	1	Housing	-

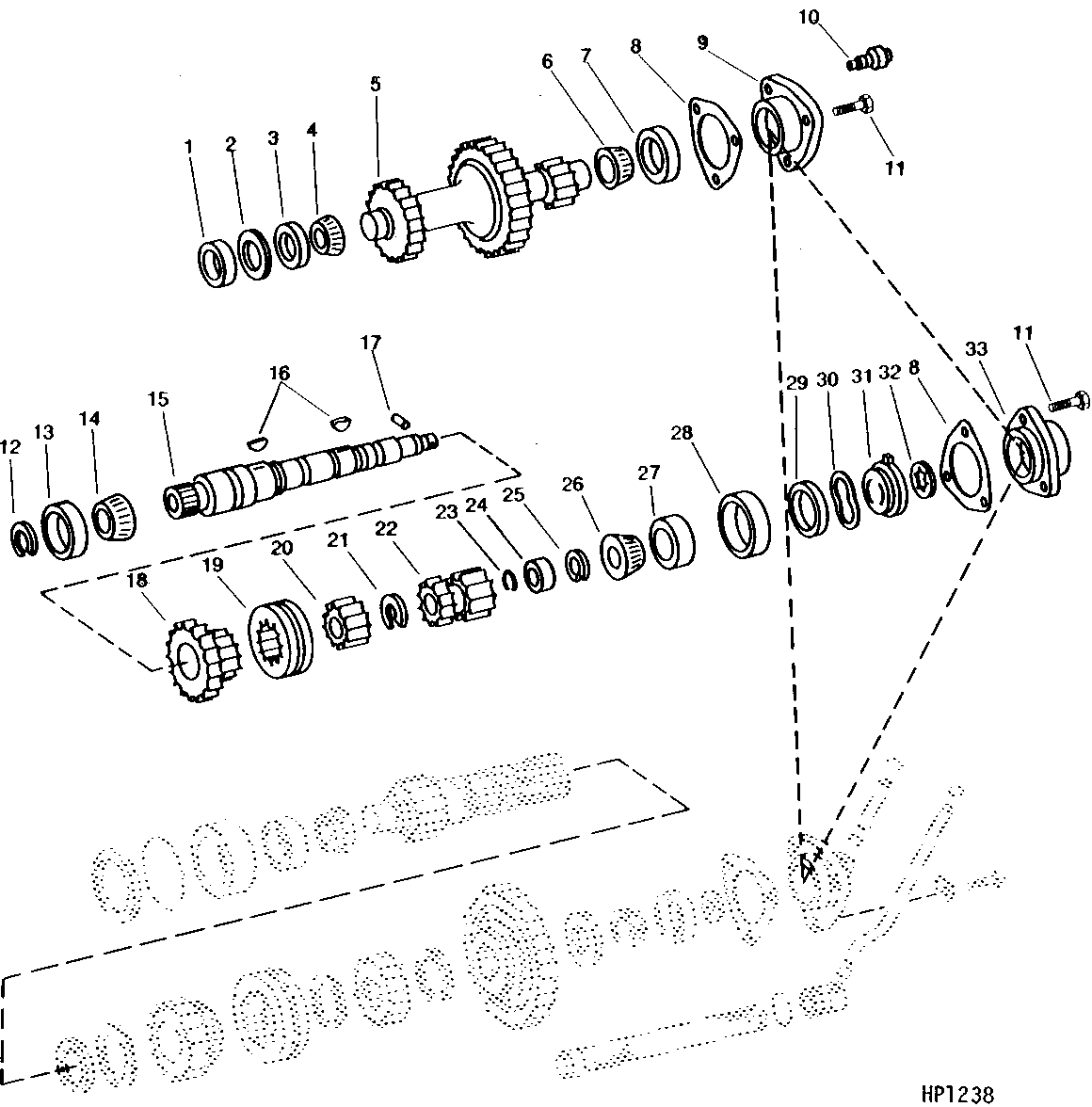

TRANSMISSION COUNTERSHAFT, INPUT SHAFT, GEARS, AND BEARINGS
