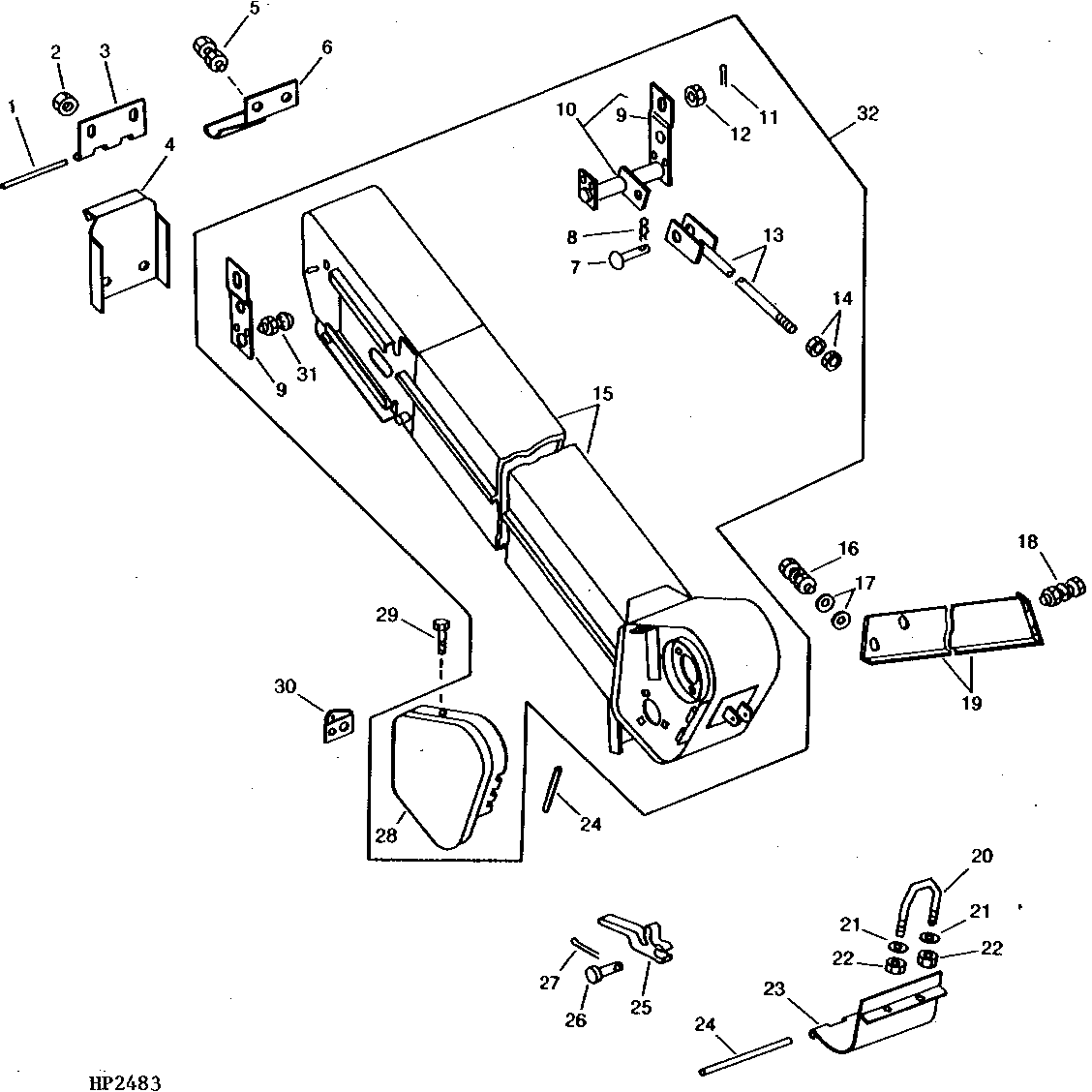

TAILINGS ELEVATOR HOUSING (610701 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P42406	1	Dowel Pin	(MAKE FROM H103318), CUT TO 152 MM (6") (NO LONGER AVAILABLE)
2	N10213	2	Lock Nut	-
3	H102466	1	Hinge	-
4	AH120519	1	Door	(SUB AH123367)
4	AH123367	1	Door	-
5	19H1227	2	Cap Screw	1/4" X 1/2"
5	12H302	2	Lock Washer	1/4"
5	14H786	2	Nut	1/4"
6	H123940	1	Hold-Down Clip	-
7	H79676	1	Pin Fastener	-
8	11H216	1	COTTER PIN	3/16" X 1"
9	H106315	1	Lever	-
10	AH108935	1	Lever	-
11	11H237	2	Cotter Pin	1/8" X 2", (SUB 11M7083)
11	11M7083	2	Cotter Pin	3.200 X 50 mm
12	24H1454	2	Washer	1-1/32" X 2" X 0.060"
13	AH105503	1	Yoke	-
14	14H812	2	NUT	3/8"
15	AH112077	1	Elevator	-
16	14H812	2	NUT	3/8"
16	19H2284	2	Cap Screw	3/8" X 7/8"
16	12H304	2	Lock Washer	3/8"
17	24H1305	4	Washer	13/32" X 13/16" X 0.065"
18	19H1944	2	Cap Screw	3/8" X 2-3/4"
18	12H304	2	Lock Washer	3/8"
18	14H812	2	NUT	3/8"
19	H120167	1	Support	-
20	H35688	1	U-Bolt	-
21	24H1136	2	Washer	11/32" X 11/16" X 0.065"
22	T16464	2	Lock Nut	-
23	AH98030	1	Door	PERFORATED
23	AH98029	1	Door	SOLID
24	H75985	2	Dowel Pin	(MAKE FROM H103318), CUT TO 175 MM (6.8")
25	H101297	1	Lever	-
26	RV810A	1	Pin Fastener	DRILLED
27	11H206	1	Cotter Pin	3/32" X 3/4"
28	AH118954	1	Shield	-
29	N71292	1	SELF-LOCKING SCREW	-
30	AH118953	1	Clip	-
31	N10214	2	Self-Locking Screw	-
31	N10215	2	Lock Nut	-
32	AH116988	1	Elevator	-

TAILINGS ELEVATOR HOUSING (610701 - )
