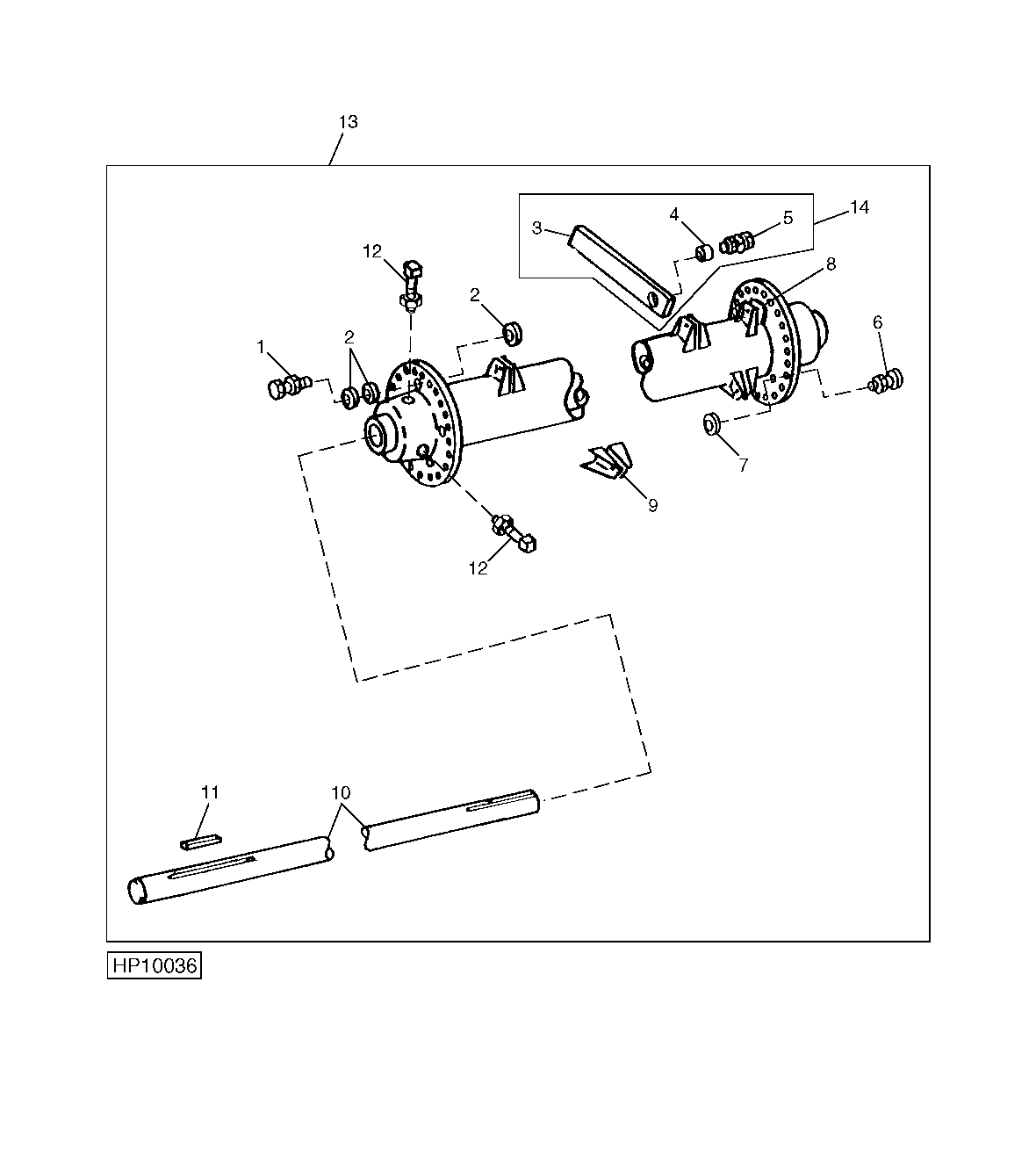

STRAW CHOPPER ROTOR AND BLADES (620962 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H129201	2	Lock Nut	-
1	H128360	2	Cap Screw	-
2	H128084	6	Washer	-
3	AH124635	1	Blade	(CONTAINS 6 BLADES ONLY)
3	AH128359	1	Blade	(CONTAINS 36 BLADES ONLY)
4	H88783	36	Washer	-
5	03H2305	36	Bolt	3/8" X 1-1/4"
5	R42729	36	Washer	10.310 X 21 X 2.290 mm (13/32" X 0.827" X 0.090")
5	H32147	36	Lock Nut	-
6	H128358	1	Cap Screw	(USE AS NEEDED FOR BALANCING)
6	H128357	1	Cap Screw	(USE AS NEEDED FOR BALANCING)
6	H128359	1	Cap Screw	(USE AS NEEDED FOR BALANCING)
6	H143332	1	Lock Nut	(USE AS NEEDED FOR BALANCING), (SUB FOR H128361)
7	H128080	1	Washer	(USE AS NEEDED FOR BALANCING)
7	H128083	1	Washer	(USE AS NEEDED FOR BALANCING).
7	H128081	1	Washer	(USE AS NEEDED FOR BALANCING)
7	H128082	1	Washer	(USE AS NEEDED FOR BALANCING)
8	H88807	2	Gusset	(WELDING REQUIRED) (END GUSSET)
9	H132998	70	Bracket	(WELDING REQUIRED) (MIDDLE GUSSETS)
10	H98647	1	Shaft	(SUB H141582)
10	H145275	1	Shaft	(SUB FOR H141582)
11	H98896	1	Shaft Key	-
12	22H748	2	SET SCREW	1/2" X 1"
12	14H826	2	Nut	1/2"
13	AH128251	1	Rotor	WITH BLADES, (SUB AH136020)
13	AH139292	1	Rotor	WITH BLADES, (SUB FOR AH136020)
14	AH171588	1	Fitting Kit	STRAW CHOPPER HAMMER AND BUSHING ((6) COMPLETE BLADES)

STRAW CHOPPER ROTOR AND BLADES (620962 - )
