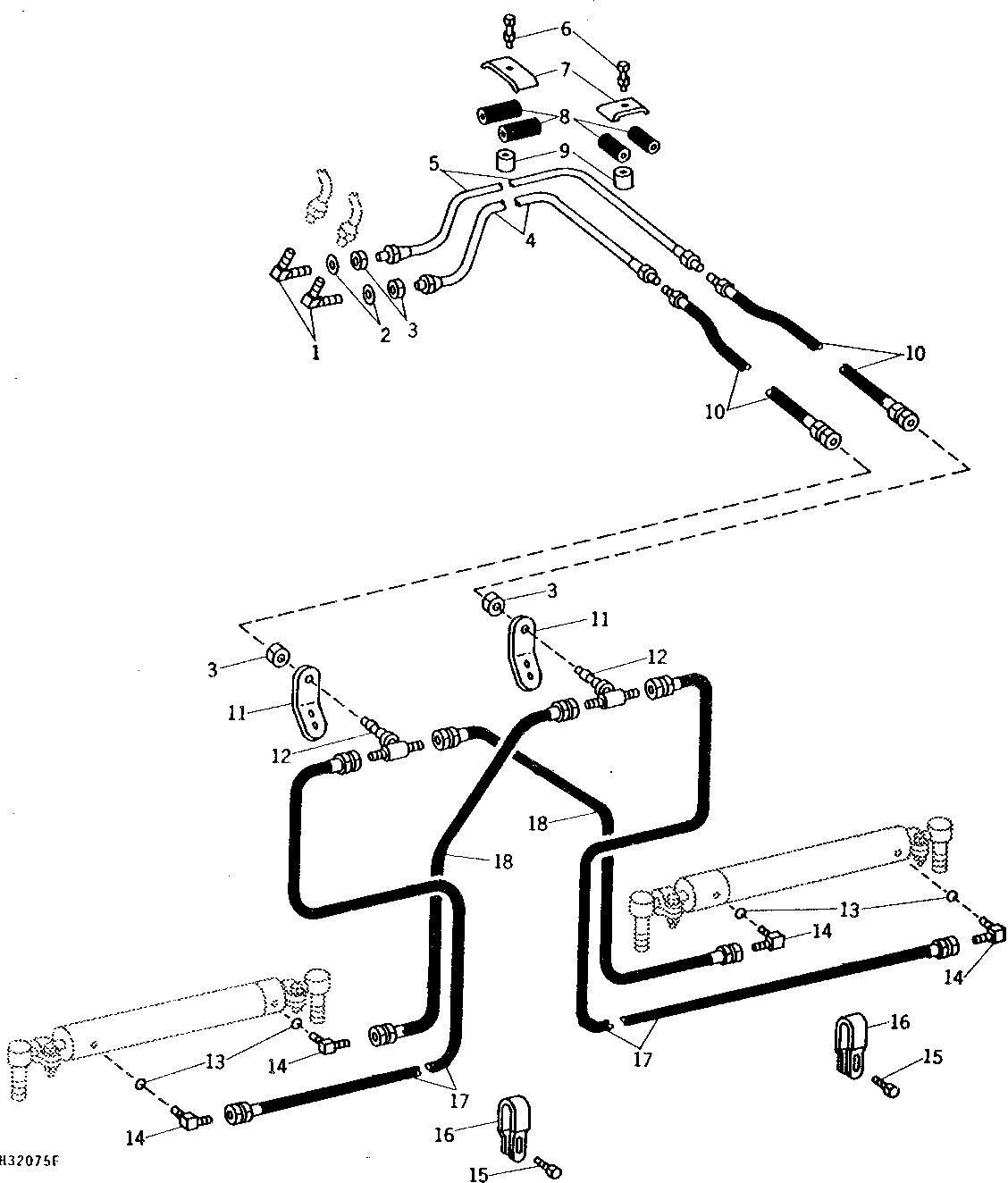

STEERING OIL LINES AND HOSES - REAR ( - 513950)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H75413	2	Elbow Fitting	90°
2	24H1357	2	Washer	19/32" X 1-5/32" X 0.090"
3	14H832	4	Nut	9/16"
4	AH94637	1	Tube	(LH)
5	AH94636	1	Tube	(RH)
6	19H1905	2	Cap Screw	5/16" X 1"
6	12H303	2	Lock Washer	5/16"
6	14H785	2	Nut	5/16"
7	H83208	2	Clamp	(USE WITH 28H90)
8	H23932	4	Isolator	RUBBER
9	28H90	2	Bushing	0.364" X 0.540" X 7/16", 1/4" X 7/16"
10	AH98931	2	HYDRAULIC HOSE	10 MM X 864 MM (3/8" I.D. 34") LONG
11	H96282	2	Bracket	-
12	N154286	2	Tee Fitting	-
13	R26448	4	O-Ring	-
14	AR26725	4	ELBOW FITTING	(SUB AT35121) 90°
14	AT35121	4	Elbow Fitting	90°
15	37H110	6	SCREW	3/8" X 7/8"
16	AH97280	2	Clip	-
17	AH94856	2	Hydraulic Hose	6 MM X 838 MM (1/4" I.D. X 33") LONG, (WIDE FIXED REAR AXLE)
17	AT47534	2	Hydraulic Hose	6 MM X 914 MM (1/4" I.D. X 36") LONG, (4-WHEEL DRIVE), (SUB AH106062)
17	AH106062	2	Hose	6 M X 914 MM (1/4" I.D. X 36") LONG, (4-WHEEL DRIVE)
18	AT47534	2	Hydraulic Hose	6 MM X 914 MM (1/4" I.D. X 36") LONG, (WIDE FIXED REAR AXLE)
18	AH94858	2	Hose	6 MM X 978 MM (1/4" I.D. X 38-1/2") LONG, (4-WHEEL DRIVE REAR AXLE)
18	AH106173	2	Hose	6 MM X 1727 MM (1/4" I.D. X 68") LONG

STEERING OIL LINES AND HOSES - REAR ( - 513950)
