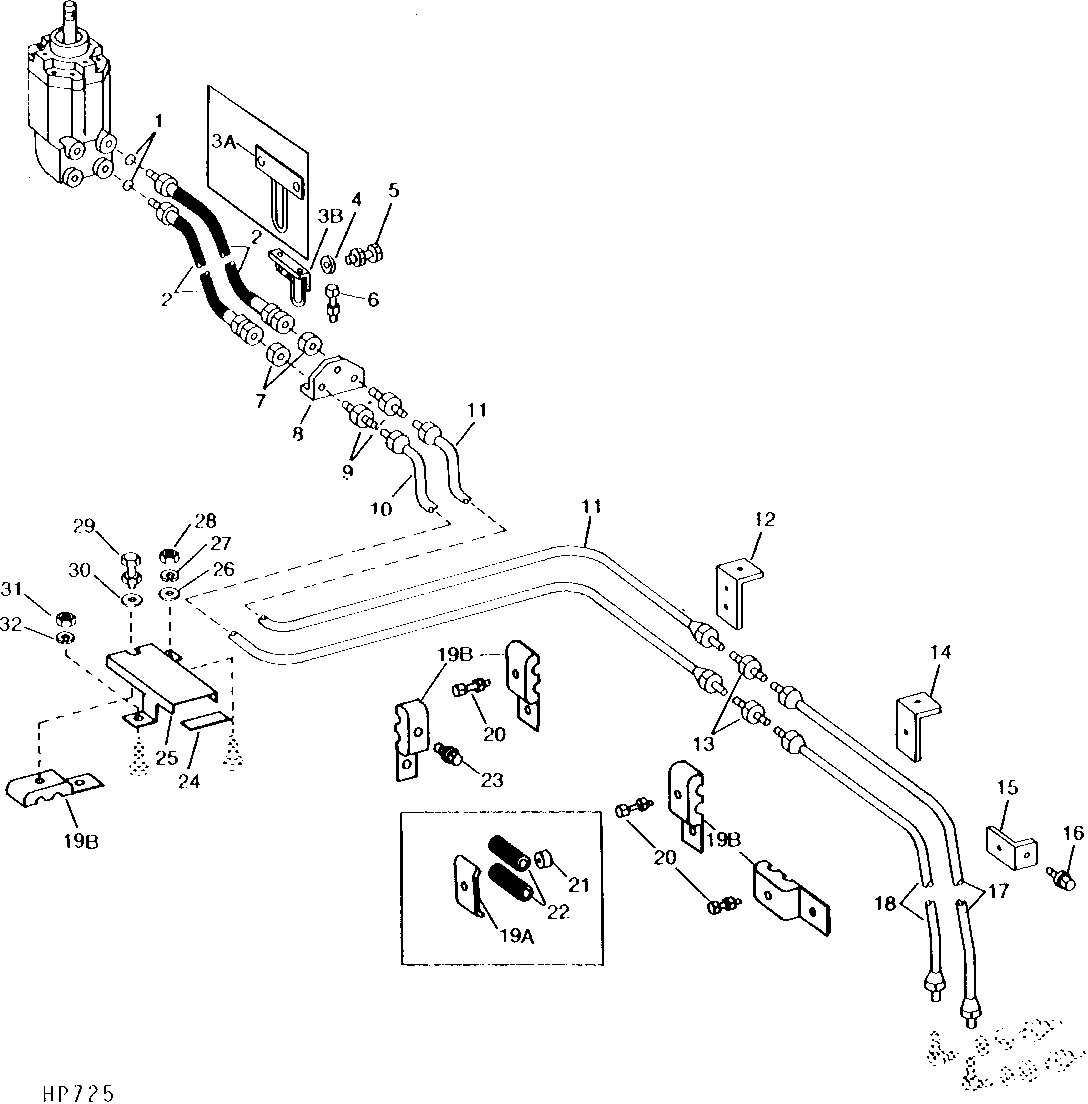

STEERING OIL LINES AND HOSES - FRONT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	2	O-Ring	-
2	AH94862	2	Hose	(SUB AH108399)
2	AH108399	2	Hose	10 MM X 1270 MM (3/8" I.D. X 50") LONG
4	24H1325	2	Washer	15/32" X 59/64" X 0.065"
5	19H2247	2	Cap Screw	7/16" X 1"
5	12H293	2	Lock Washer	7/16"
6	14H812	1	NUT	3/8"
6	12H304	1	Lock Washer	3/8"
6	19H1936	1	Cap Screw	3/8" X 3/4"
7	14H832	2	Nut	9/16"
8	H91357	1	Bracket	(SUB H111620)
8	H111620	1	Bracket	UPPER
9	R27238	2	Fitting	-
10	AH97652	1	Tube	LH
11	AH97653	1	Tube	RH
12	H84515	1	Bracket	MIDDLE (NO LONGER AVAILABLE)
13	R27095	2	Fitting	-
14	H79573	1	Bracket	MIDDLE
15	H81346	1	Bracket	LOWER
16	H76139	1	Screw	SELF-TAPPING
17	AH98068	1	Line	UPPER
18	AH98069	1	Line	LOWER
20	19H1849	3	Cap Screw	5/16" X 1-1/4"
20	12H303	3	Lock Washer	5/16"
20	14H785	3	Nut	5/16"
21	28H90	4	Bushing	0.364" X 0.540" X 7/16", 1/4" X 7/16"
22	H23932	8	Isolator	RUBBER
23	H79578	1	Screw	-
24	-	1	Part 33	5 MM X 13 MM X 57 MM (3/16" X 1/2" X 2-1/4"), (CUT FROM H81330)
25	H108473	1	Shield	STEERING LINES
26	24H1341	1	Washer	17/32" X 15/16" X 0.060"
27	12H301	1	Lock Washer	1/2"
28	14H1040	1	Nut	1/2"
29	N10213	1	Lock Nut	-
29	19H1849	1	Cap Screw	5/16" X 1-1/4"
30	24H1136	1	Washer	11/32" X 11/16" X 0.065"
31	14H785	1	Nut	5/16"
32	12H303	1	Lock Washer	5/16"
..	H81330	1	Isolator	5 MM X 13 MM X 3048 MM (3/16" X 1/2" X 120") LONG
3A	AH100323	1	Retainer	(SUB AH102050)
3B	AH102050	1	Support	-
19A	H83208	4	Clamp	-
19B	H108745	5	Clamp	-

STEERING OIL LINES AND HOSES - FRONT
