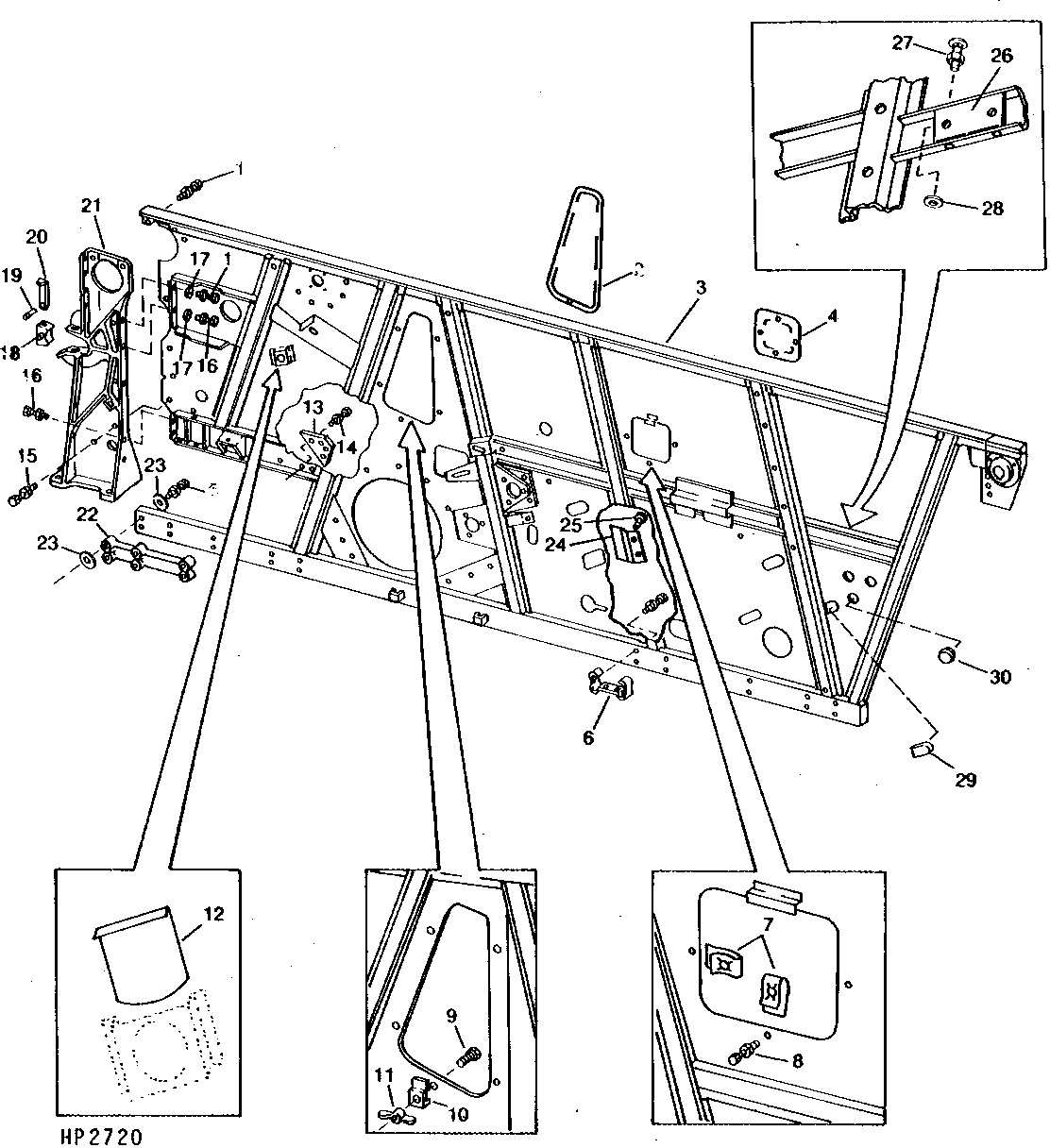

SEPARATOR LEFT - HAND SIDE SHEETS AND FRAME

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	2	Lock Washer	1/2"
1	19H1815	2	Cap Screw	1/2" X 1-1/4"
1	14H1040	2	Nut	1/2"
2	H76271	1	Cover	INSPECTION
3	AH96625	1	Frame	-
3	AH108246	1	Frame	(SUB AH115272)
3	AH115272	1	Frame	(SUB AH114799)
3	AH114799	1	Frame	-
3	AH114891	1	Frame	-
4	H89569	1	Door	INSPECTION
5	14H1040	1	Nut	1/2"
5	12H301	1	Lock Washer	1/2"
5	19H2668	10	Cap Screw	1/2" X 3-1/2"
5	19H2668	8	Cap Screw	1/2" X 3-1/2"
6	H102842	2	Spacer	(SUB H104992, FRONT ONLY)
7	P41706	3	Nut	-
8	19H1227	3	Cap Screw	1/4" X 1/2"
8	12H302	3	Lock Washer	1/4"
9	03H1540	5	Bolt	5/16" X 3/4"
10	P47159	5	Clip	-
11	14H819	1	Wing Nut	5/16"
12	H89544	1	Angle	INSPECTION
13	H82546	1	Gusset	-
14	14H812	4	NUT	3/8"
14	19H1731	4	Cap Screw	3/8" X 1"
14	12H304	4	Lock Washer	3/8"
15	09H1590	3	Bolt	3/8" X 1-1/2"
15	12H304	3	Lock Washer	3/8"
15	14H812	3	NUT	3/8"
16	19H1721	3	CAP SCREW	1/2" X 1-1/2"
16	12H301	3	Lock Washer	1/2"
16	14H1040	3	Nut	1/2"
17	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
18	H10835	1	RETAINER	-
19	19H2020	1	Cap Screw	5/16" X 1/2"
19	12H303	1	Lock Washer	5/16"
20	H102567	1	Key	-
20	P47415	1	Key	-
21	H92436	1	Support	(SUB H102565)
21	H102565	1	Post	-
22	H104992	1	Spacer	-
23	24H1625	12	Washer	17/32" X 1" X 0.120", 17/32" X 1" X .120"
24	AH118212	1	Bracket	-
25	H65108	2	Screw	SELF-TAPPING
26	H121072	1	Channel	-
27	03H1709	4	Bolt	5/16" X 1"
27	12H303	4	Lock Washer	5/16"
27	14H785	4	Nut	5/16"
28	24H1136	2	Washer	11/32" X 11/16" X 0.065"
29	H128077	1	Plug	(HARVEST-FLO)
30	R52233	1	Plug	(HARVEST-FLO CONVERSION ONLY)

SEPARATOR LEFT - HAND SIDE SHEETS AND FRAME
