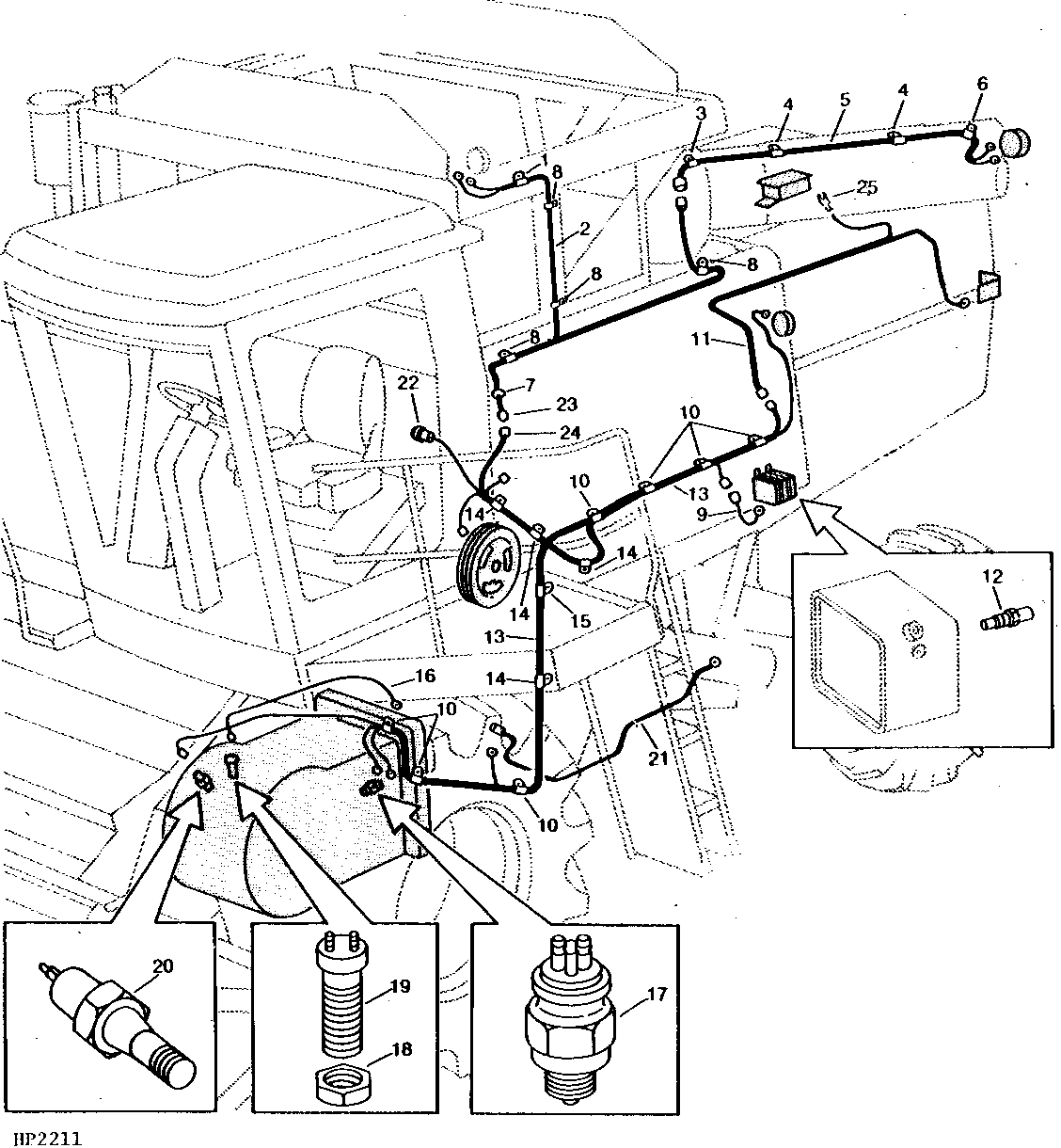

REAR HOOD, GRAIN TANK, UNLOADING AUGER AND SEPARATOR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H64612	1	Clip	-
2	AH99996	1	Wiring Harness	GRAIN TANK
3	N10212	1	Self-Locking Screw	-
3	N10213	1	Lock Nut	-
3	24H1136	1	Washer	11/32" X 11/16" X 0.065"
3	AH89557	1	Clip	-
4	AH89557	2	Clip	-
4	24H1136	2	Washer	11/32" X 11/16" X 0.065"
4	N10213	1	Lock Nut	-
5	AH100372	1	Wiring Harness	20 FT., UNLOADING AUGER
5	AH99997	1	Wiring Harness	14 FT. AND 17 FT., UNLOADING AUGER
6	24H1287	1	Washer	9/32" X 5/8" X 0.065"
6	N10217	1	Lock Nut	-
6	AH89557	1	Clip	-
7	H95560	1	GROMMET	-
8	T32231	2	Clamp	-
8	T32231	4	Clamp	-
9	AH99705	1	Wire	-
10	AH89557	5	Clip	-
11	AH96516	1	Wiring Harness	REAR HOOD, (SUB AH118015 AND H121814)
11	AH118015	1	Wiring Harness	(USE WITH (1) UNIT 40 MM (1-37/64") LONG OF R77502 FROM RE11154 KIT AND H121814)
12	AH97063	1	Switch	(SUB AH106144)
12	AH106144	1	Switch	HYDROSTATIC
13	AH99334	1	Wiring Harness	SEPARATOR (LH)
14	AH96317	5	Clip	-
14	14H611	5	Nut	5/16"
15	AH96317	1	Clip	-
16	AH99311	1	Wiring Lead	-
17	AT18988	1	SWITCH	NEUTRAL SAFETY
18	T12892	1	Nut	(SUB H104418)
18	H104418	1	Nut	-
19	AH99637	1	Sensor	GROUND SPEED
20	AH76862	1	Sender	OIL PRESSURE
21	-	1	Part 34	(4-WHEEL DRIVE), (MAKE FROM 86" OF R66319, R32018, U46662, AND T28583 IN AT84006)
22	H118427	1	Electrical Connector Assy	-
22	R77458	1	Elec.Connect Locking Device	-
22	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
23	H118417	1	Quick Lock Pin	(SUB Z40862)
23	Z40862	1	ELEC. CONNECTOR HOUSING	-
24	H118423	1	Plug	(SUB Z40696) (NO LONGER AVAILABLE)
24	Z40696	1	Socket	-
25	H121814	1	Electrical Connector Assy	(NOT INCLUDED IN RE11154)

REAR HOOD, GRAIN TANK, UNLOADING AUGER AND SEPARATOR
