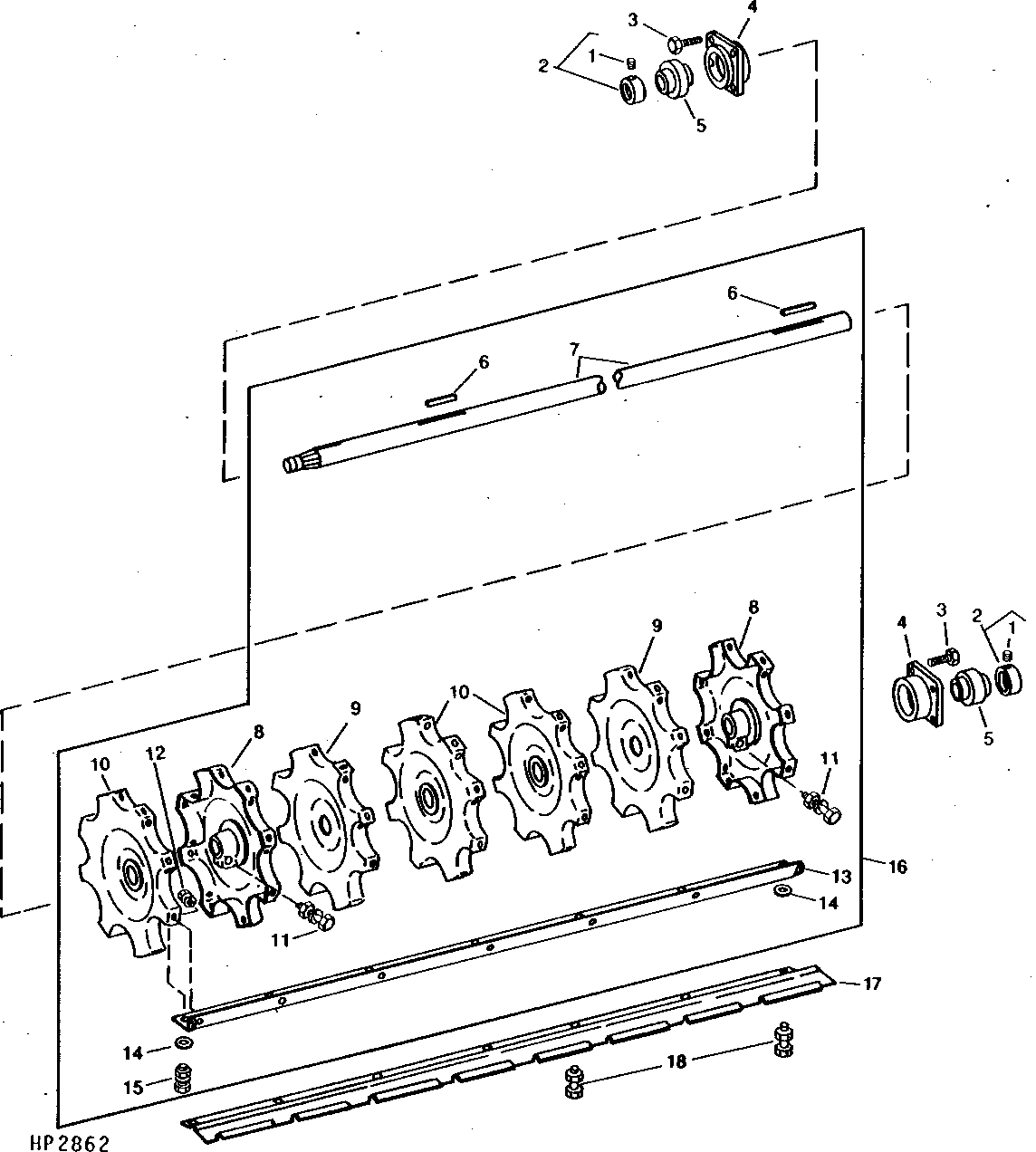

Rasp - Bar Cylinder (Dual-Range Cylinder Drive) (564101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22H982	2	Set Screw	7/16" X 7/16"
2	AH108767	2	Eccentric Locking Collar	-
3	19H1732	8	Cap Screw	3/8" X 1-1/4"
3	12H304	8	Lock Washer	3/8"
4	H99149	2	Housing	(SUB H203950)
4	H203950	2	Housing	-
5	AH108768	2	Ball Bearing	-
6	-	2	Part 8	(3/8" X 3/8" X 2-1/4"), (CUT FROM H64376)
7	H117565	1	Drive Shaft	-
8	AH114631	1	Threshing CYL Head (W/HUB)	RH (WITH KEYED HUB)
8	AH114632	1	Threshing CYL Head (W/HUB)	LH (WITH KEYED HUB)
9	H117614	2	Threshing Cylinder Head	(WITHOUT HUB)
10	AH114630	3	Threshing CYL Head (W/HUB)	-
11	19H1820	2	Cap Screw	1/2" X 3"
11	12H301	2	Lock Washer	1/2", (SUB FOR P3629H)
11	14H1040	2	Nut	1/2"
12	19H2554	56	Cap Screw	3/8" X 5/8", (USE WITH STANDARD RASP BARS)
12	12H304	56	Lock Washer	3/8", (USE WITH STANDARD RASP BARS)
12	19M7402	56	Cap Screw	M10 X 25, (USE WITH METRIC RASP BARS)
13	AH221671	1	Rasp Bar	SUB FOR AH161397
13	AH221680	1	Rasp Bar	RH (CHROMED) (CONTAINS (4) RASP BARS) (WIDE)
13	AH221679	1	Rasp Bar	LH (CHROMED) (CONTAINS (4) RASP BARS) (WIDE)
13	AH132982	1	Rasp Bar	RH (STANDARD) (CHROMED) (CONTAINS (2) RASP BARS), (SUB FOR AH117654 OR AH126549 ) (SUB AH161393)
13	AH214666	1	Rasp Bar	BLACK, HI INERTIA (CONTAINS (4) LH RASP BARS (4) RH RASP BARS AND (64) 19H2472)
13	AH161388	1	Rasp Bar	LH (METRIC) (CHROMED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163921)
13	AH161393	1	Rasp Bar	RH (METRIC) (CHROMED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163921)
13	AH161394	1	Rasp Bar	LH (METRIC) (HARDENED) (SUB FOR AH132981 (STANDARD)) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163921) (SUB AH221670)
13	AH161397	1	Rasp Bar	RH (METRIC) (HARDENED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163921)
13	AH132980	1	Rasp Bar	RH (STANDARD) (HARDENED) (CONTAINS (2) RASP BARS), (SUB FOR AH101168) (SUB AH161397)
13	AH132983	1	Rasp Bar	LH (STANDARD) (CHROMED) (CONTAINS (2) RASP BARS), (SUB FOR AH117653 OR AH126548) (SUB AH161388)
14	24H1303	2	WASHER	13/32" X 11/16" X 0.065", (USE FOR LEVELING CONCAVE)
15	19M7783	56	Screw	M10 X 16, (USE WITH METRIC RASP BARS)
15	H135891	56	Lock Nut	(USE WITH METRIC RASP BARS)
15	H99923	56	Lock Nut	(USE WITH STANDARD RASP BARS)
15	R42729	56	Washer	(USE WITH STANDARD RASP BARS)
15	19H3239	56	Cap Screw	3/8" X 1-1/4", (USE WITH STANDARD RASP BARS)
16	AH114626	1	Rasp-Bar Cylinder	(HARDENED RASP BARS)
16	AH117628	1	Rasp-Bar Cylinder	(CHROMED RASP BARS)
17	H117623	8	Plate	RH (VIEW FACING CYLINDER)
17	H117624	8	Plate	LH (VIEW FACING CYLINDER)
18	19H2676	56	Cap Screw	3/8" X 1", (SUB 19H3239)
18	19H3239	56	Cap Screw	3/8" X 1-1/4"
18	H99923	56	Lock Nut	-
..	AH163921	1	Hardware Kit	RASP BAR HARDWARE, (INCLUDES (14) 19M7783, (14) 19M7402 AND (14) H135891)
