RASP-BAR CYLINDER ( - 564100)

RASP-BAR CYLINDER ( - 564100)

RASP-BAR CYLINDER ( - 564100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

RASP-BAR CYLINDER ( - 564100)

Нет текстового описания

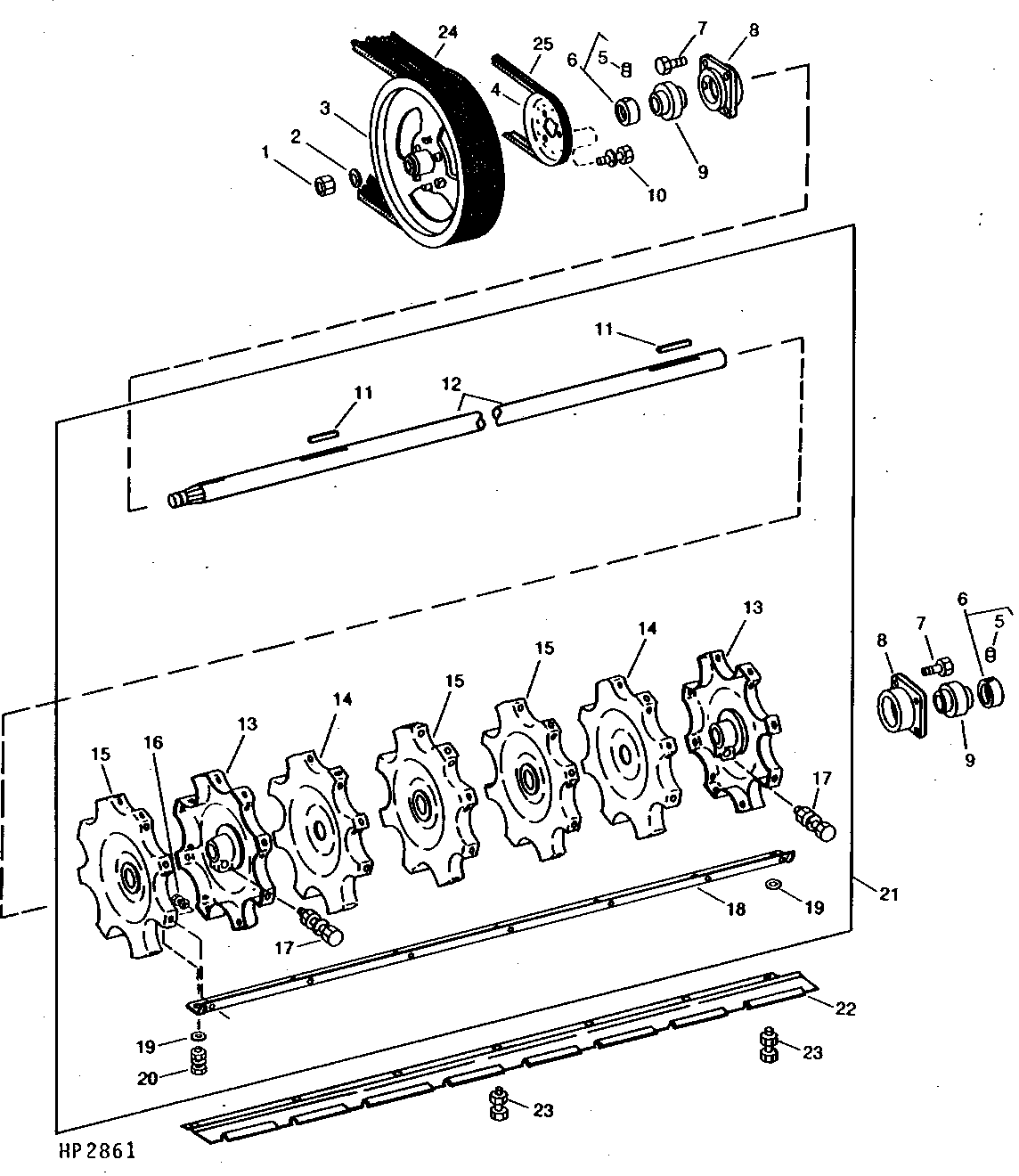

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H93931	1	Lock Nut	-
2	24H1509	1	Washer	1-25/64" X 2-1/2" X 0.194"
3	H93645	1	Pulley	569 MM (22-13/32") DIA.
4	AH94959	1	Pulley	241 MM (9-1/2") DIA., (100 PER CENT BEATER SPEED)
4	AH101245	1	Pulley	318 MM (12-1/2") DIA., (150 PER CENT BEATER SPEED)
5	22H982	2	Set Screw	7/16" X 7/16"
6	JD9365	2	Eccentric Locking Collar	-
7	19H1732	8	Cap Screw	3/8" X 1-1/4"
7	12H304	8	Lock Washer	3/8"
8	H99149	2	Housing	(SUB H203950)
8	H203950	2	Housing	-
9	JD9431	2	Ball Bearing	-
10	19H1731	3	Cap Screw	3/8" X 1"
10	12H304	3	Lock Washer	3/8"
11	-	2	Part 15	(3/8" X 3/8" X 2-1/4"), (CUT FROM H64376)
12	H99888	1	Shaft	-
13	AH96531	2	Cylinder Head	(SUB AH114501 AND/OR AH114502)
13	AH114501	1	Threshing CYL Head (W/HUB)	RH
13	AH114502	1	Threshing CYL Head (W/HUB)	LH
14	H75324	2	Cylinder Head	(SUB (2) H117614, (56) 19H2676, (56) H99923 AND (56) 12H304)
14	H117614	2	Threshing Cylinder Head	-
15	AH75101	3	Threshing CYL Head (W/HUB)	(SUB AH114503)
15	AH114503	3	Threshing Cylinder Head	-
16	19H2554	56	Cap Screw	3/8" X 5/8", (USE WITH STANDARD RASP BARS)
16	12H304	56	Lock Washer	3/8", (USE WITH STANDARD RASP BARS)
16	19M7402	56	Cap Screw	M10 X 25, (USE WITH METRIC RASP BARS)
17	19H1820	2	Cap Screw	1/2" X 3"
17	12H301	2	Lock Washer	1/2", (SUB FOR P3629H)
17	14H1040	2	Nut	1/2"
18	AH132980	1	Rasp Bar	RH (STANDARD) (HARDENED) (CONTAINS (2) RASP BARS), (SUB FOR AH101168) (SUB AH161397)
18	AH214666	1	Rasp Bar	BLACK, HI INERTIA (CONTAINS (4) LH RASP BARS (4) RH RASP BARS AND 19H2472)
18	AH161388	1	Rasp Bar	LH (METRIC) (CHROMED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163921) (SUB AH221679
18	AH132983	1	Rasp Bar	LH (STANDARD) (CHROMED) (CONTAINS (2) RASP BARS), (SUB FOR AH117653 OR AH126548 ) (SUB AH161388)
18	AH161393	1	Rasp Bar	RH (METRIC) (CHROMED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163921) (SUB AH221680)
18	AH132982	1	Rasp Bar	RH (STANDARD) (CHROMED) (CONTAINS (2) RASP BARS), (SUB FOR AH117654 OR AH126549) (SUB AH161393)
18	AH161394	1	Rasp Bar	LH (METRIC) (HARDENED) (SUB FOR AH132981 (STANDARD)) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163921) (SUB AH221670)
18	AH161397	1	Rasp Bar	RH (METRIC) (HARDENED) (CONTAINS (2) RASP BARS), (ALSO ORDER AH163921) (SUB AH221671)
..	AH163921	1	Hardware Kit	RASP BAR HARDWARE, (INCLUDES (14) 19M7783, (14) 19M7402 AND (14) H135891)
