Открытый узел

RADIATOR FAN DRIVES AND HYDRAULIC PUMP DRIVE IDLER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1040	1	Nut	1/2"
1	19H1992	1	Cap Screw	1/2" X 4"
2	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
3	L3378N	1	Bushing	-
4	19H2471	1	CAP SCREW	3/8" X 1-1/2"
4	24H1307	1	Washer	13/32" X 1" X 1/16"
5	H98922	1	Clevis	(SUB H130003)
5	H130003	1	Clevis	-
6	AH96292	1	Idler	-
7	H80228	1	Washer	-
8	H98921	1	Arm	-
9	N164635	1	SELF-LOCKING SCREW	-
10	H97636	1	Pin	-
11	-	1	Part 14	-
12	AH97099	1	Spring	-
13	T40189	1	Snap Ring	-
14	19H1792	1	Cap Screw	1/2" X 1"
15	24H1789	1	Washer	17/32" X 1-1/4" X 0.105"
16	H87502	2	BUSHING	-
17	-	1	Part 20	(MARKED H97631)
18	AH96294	1	Lever	(SUB AH118442)
18	AH118442	1	Lever	(USE WITH 19H3592)
19	H86839	1	Snap Ring	-
20	24H1362	1	Washer	41/64" X 1" X 0.075"
21	H96455	2	Bushing	-
22	AH95011	1	Hub	-
23	H96251	1	Washer	-
24	H86264	1	TORSION SPRING	LH
25	03H1790	3	Bolt	5/16" X 1-1/2"
25	N10213	1	Lock Nut	-
26	H86886	1	Push Nut	-
27	03H1764	1	Bolt	1/2" X 1-3/4", 1/2" X 1-3/4"
27	14H1040	1	Nut	1/2"
27	12H301	1	Lock Washer	1/2"
28	AH96492	1	Arm	-
29	B31498	1	Washer	(SUB H88355)
29	H88355	1	Washer	-
30	AH77172	1	Idler	-
31	19H1974	2	Cap Screw	1/2" X 2-3/4"
31	19H1974	1	Cap Screw	1/2" X 2-3/4"
32	12H301	2	Lock Washer	1/2"
32	12H301	1	Lock Washer	1/2"
33	19H3031	1	Cap Screw	3/8" X 2-1/2"
34	R47230	1	WASHER	(SUB R69536)
34	R69536	1	Washer	-
35	H102177	1	Hub	-
36	24H1305	3	Washer	13/32" X 13/16" X 0.065"
37	19H1800	3	Cap Screw	3/8" X 1-1/2"
38	JD10058	1	Ball Bearing	-
39	19H3162	1	Cap Screw	3/8" X 2"
40	24H1305	1	Washer	13/32" X 13/16" X 0.065"
41	R40168	4	Bolt	-
41	R73888	4	SCREW	-
42	AT135668	1	Fan	(SUB FOR AH97038 OR AT137506)
42	AH108059	1	Fan	-
43	H102181	1	Pulley	-
44	H102182	1	Hub	-
45	AH96333	1	Belt Set	(MATCHED SET OF H97692) (SET OF 2)
46	H99532	1	Reinforcement	-
47	24H1682	1	Washer	13/32" X 7/8" X 0.120"
48	N10215	1	Lock Nut	-
49	19H3592	1	Screw	1/2" X 2-1/4", (USE WITH AH118442)

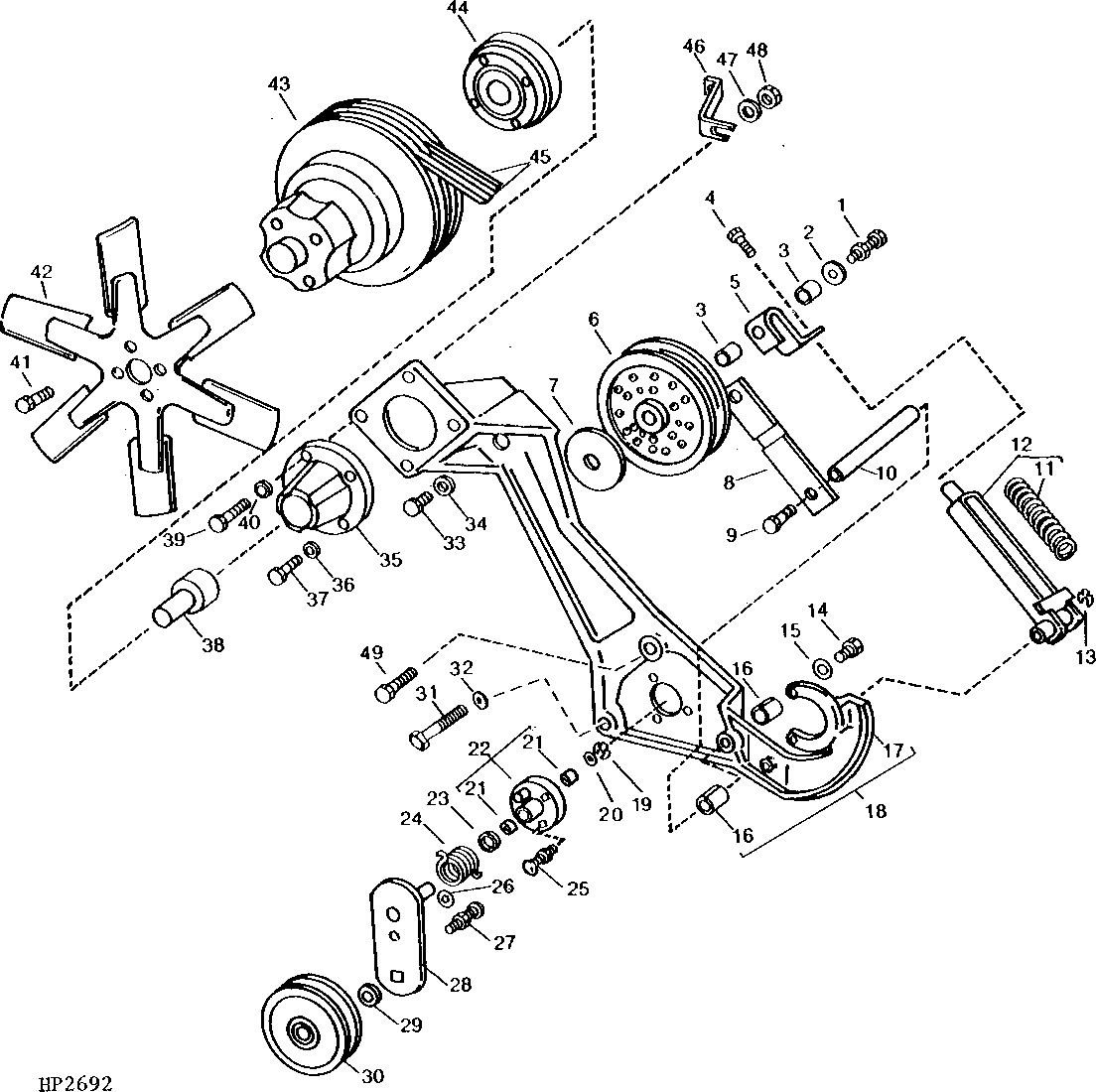

RADIATOR FAN DRIVES AND HYDRAULIC PUMP DRIVE IDLER
