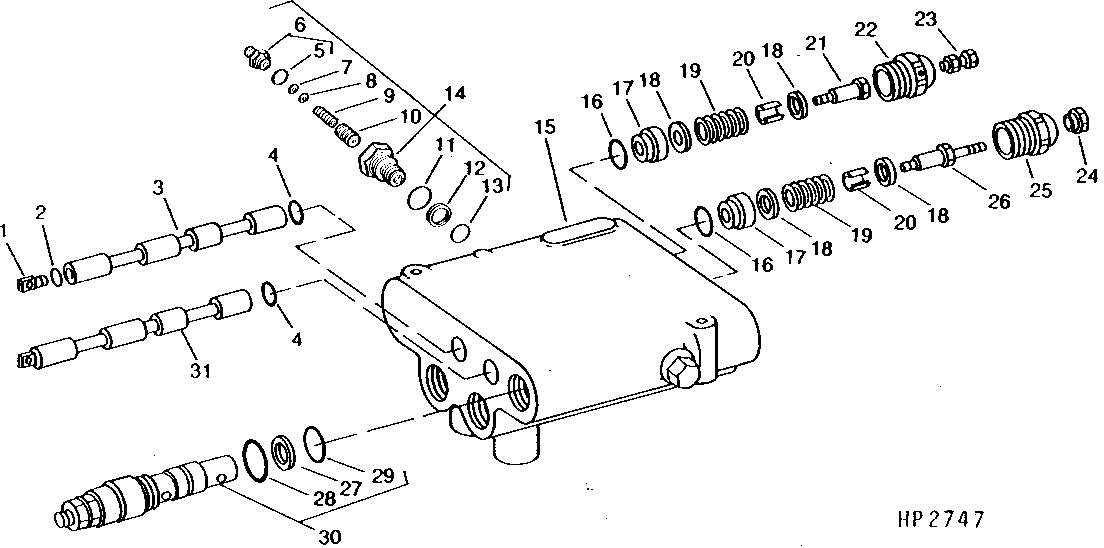

Main Hydraulic Control Valve Spools and Relief Valve (615977 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H80460	1	Clevis	-
2	A3917R	1	O-Ring	KIT AH127845
3	-	1	Part 3	Header Lift
4	H36256	2	O-Ring	KIT AH127845
5	P46051	1	O-Ring	KIT AH78796 AND AH127845
6	-	1	Part 6	Automatic Header Height Control
7	H102493	1	ORIFICE	-
8	-	1	Part 8	-
9	-	1	Part 9	-
10	-	1	Part 10	-
11	T13119	6	O-Ring	KIT AH127845 AND AH78796
12	N140001	1	BACK-UP RING	KIT AH78796 AND AH127845
13	R27166	1	O-Ring	KIT AH127845
14	AH101625	1	Hyd Actuated Control Valve	-
15	-	1	Part 15	-
16	H132571	2	O-Ring	KIT AH127845
17	N111488	2	BUSHING	-
18	N31767	4	WASHER	-
19	H60819	2	SPRING	-
20	H62801	2	BUSHING	-
21	H63987	1	CAP SCREW	-
22	AH78797	1	Plug	-
23	19H2551	1	Cap Screw	5/16" X 3/4"
23	14H882	1	Nut	5/16"
24	H80459	1	Lock Nut	-
25	H80456	1	Cap	-
26	H80455	1	Screw	-
27	H132651	1	Back-Up Ring	KIT AH127845
28	U46731	1	O-Ring	-
29	H30843	1	O-Ring	KIT AH127845
30	AH126706	1	Pressure Relief Valve	-
30	AH126201	1	Pressure Relief Valve	USE WITH 1253A Row Crop Head
31	-	1	Part 33	Hydraulic Reel Lift
..	AH125747	1	Hyd Actuated Control Valve	2 Spool, Remanufactured
..	AH127845	1	Seal Kit	Seal Repair Control Valve
..	AH78796	1	Seal Kit	Seal Repair, Flow Control Plug

Main Hydraulic Control Valve Spools and Relief Valve (615977 - )

Нет текстового описания
