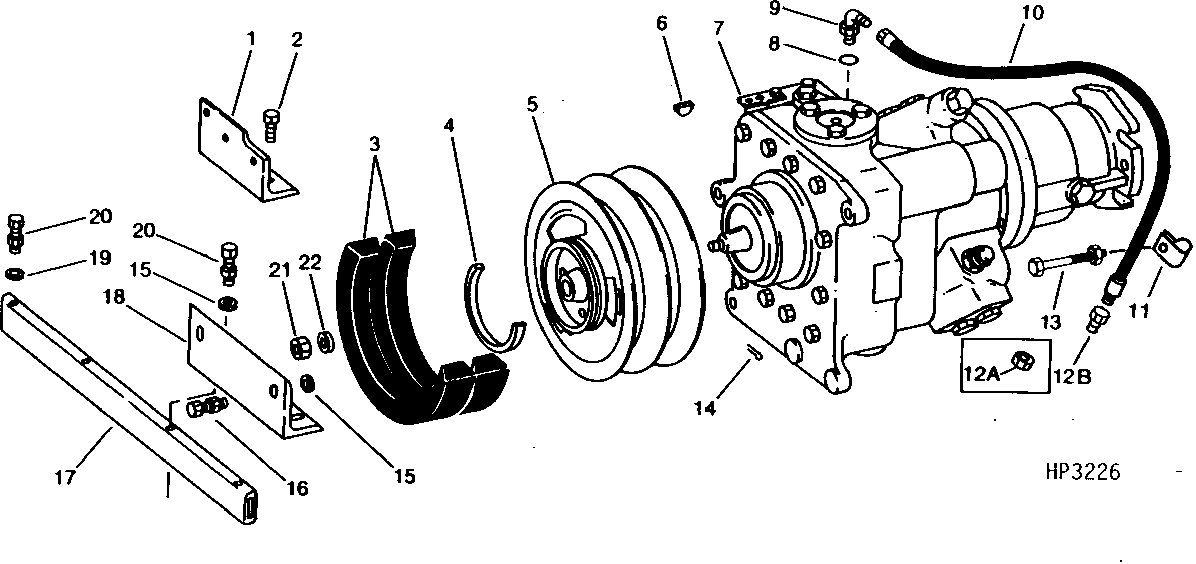

HYDROSTATIC DRIVE UNIT, SUPPORTS, AND SHEAVES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H123033	1	Angle	-
1	H99324	1	Angle	(SUB H123033)
2	19H1821	2	CAP SCREW	7/16" X 1-1/4"
3	AH84633	1	Belt Set	(MATCHED SET OF (2) H84236)
4	T32517	1	V-Belt	-
5	H93547	1	Pulley	-
6	26H41	1	SHAFT KEY	5/16" X 2-1/8"
7	AH96664	1	Transmission	(INCLUDES H77201) (SUB AH107888) (SUNDSTRAND)
7	PG203917	1	Hydraulic Pump Reman	REMAN FOR AH107888
7	AH119037	1	Transmission	(REMANUFACTURED) (SUNDSTRAND)
7	AH130931	1	Transmission	(REMANUFACTURED) (EATON)
8	R28782	1	O-Ring	-
9	AH63565	1	Elbow Fitting	-
10	AH87133	1	Hydraulic Hose	(SUB AH138623) (SUNDSTRAND)
10	AE42282	1	HYDRAULIC HOSE	(EATON)
10	AH138623	1	Kit	-
11	AH77724	1	Clip	-
13	19H1900	1	Cap Screw	5/16" X 3/4"
13	12H303	1	Lock Washer	5/16"
13	14H785	1	Nut	5/16"
14	11M7083	1	Cotter Pin	3.200 X 50 mm, 1/8" X 2"
15	24H1111	3	Washer	17/32" X 1-1/16" X 0.090"
16	19H1831	1	Cap Screw	1/2" X 2"
16	12H301	1	Lock Washer	1/2"
16	14H1040	1	Nut	1/2"
17	AH96990	1	Support	-
18	H98479	1	Angle	-
19	T35025	2	Washer	-
20	19H1992	2	Cap Screw	1/2" X 4"
20	12H301	2	Lock Washer	1/2"
20	14H1040	2	Nut	1/2"
21	H77201	1	Nut	-
22	24H1465	1	Washer	1-3/32" X 1-3/4" X 0.060"
12A	H102543	1	Fitting	(SUNDSTRAND)
12B	A43231	1	Fitting	(EATON)

HYDROSTATIC DRIVE UNIT, SUPPORTS, AND SHEAVES
