HYDROSTATIC DRIVE CONTROL CABLE MOUNTING (SUNDSTRAND)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH77869	1	Clip	-
2	N10216	1	Self-Locking Screw	-
2	14H786	1	Nut	1/4"
2	12H302	1	Lock Washer	1/4"
3	19H1900	1	Cap Screw	5/16" X 3/4"
3	12H303	1	Lock Washer	5/16"
3	14H785	1	Nut	5/16"
4	AH78237	1	Clamp	-
5	H99524	1	Bracket	-
6	19H1731	1	Cap Screw	3/8" X 1"
6	12H304	1	Lock Washer	3/8"
6	14H812	1	NUT	3/8"
7	M40333	4	Lock Nut	-
8	H105280	1	Angle	-
8	H131418	1	Bracket	-
8	H99863	1	Bracket	(SUB H105280)
9	AH126657	2	Isolator	-
10	19H2961	2	Screw	0.190" X 3/4"
10	12H246	2	LOCK WASHER	0.190"
10	14H778	2	Nut	0.190"
11	H100165	1	Clamp	-
12	E52149	1	Strap	-
13	H131419	1	Plate	-
14	AH98290	1	Ball Joint	-
15	AH96775	1	Support	-
16	12H303	5	Lock Washer	5/16"
17	14H650	3	Nut	5/16"
18	AXE13513	1	Support	(SUB FOR AH96774)
19	N112200	1	Self-Locking Screw	-
19	N10213	1	Lock Nut	-
20	19H1731	2	Cap Screw	3/8" X 1"
20	12H304	2	Lock Washer	3/8"
20	14H812	2	NUT	3/8"
21	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
22	11H234	1	Cotter Pin	3/32" X 1"
23	H93442	2	Washer	-
24	24H1338	1	Washer	33/64" X 7/8" X 0.048"
25	AM35116	1	Ball Joint	(SUB AM38386)
25	AM38782	1	Ball Joint	-
25	AM38386	1	Ball Joint	(SUB AM38782)
26	14H882	2	Nut	5/16"
27	H99861	1	Rod	-
28	AH98289	1	Ball Joint	-
29	19H1900	2	Cap Screw	5/16" X 3/4"
29	12H303	2	Lock Washer	5/16"
31	AH138620	1	Kit	-
30A	H98352	1	Strap	(SUB H123032)
30B	H123032	1	Arm	(SUB H132781)
30B	H132781	1	Arm	-

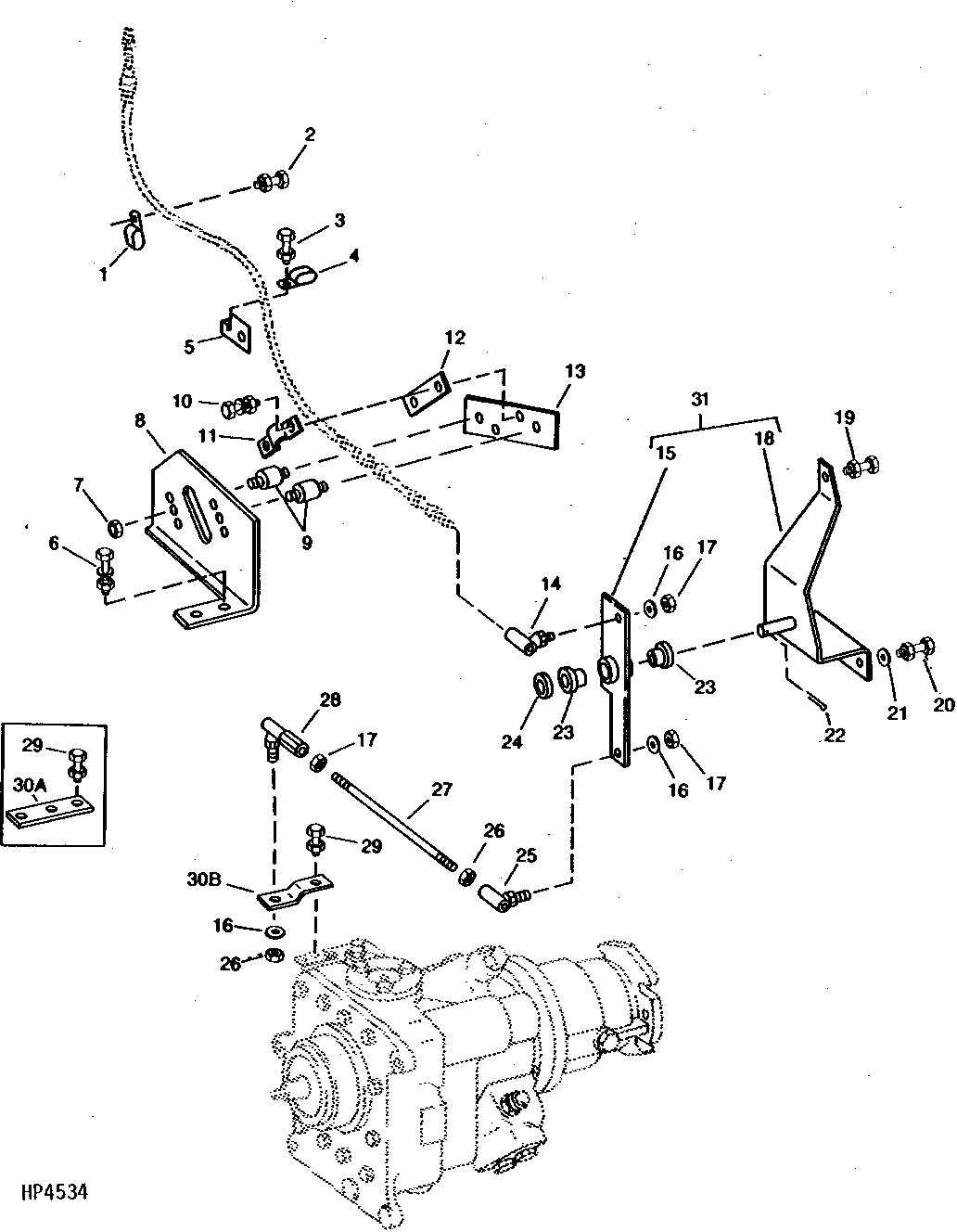

HYDROSTATIC DRIVE CONTROL CABLE MOUNTING (SUNDSTRAND)

Нет текстового описания
