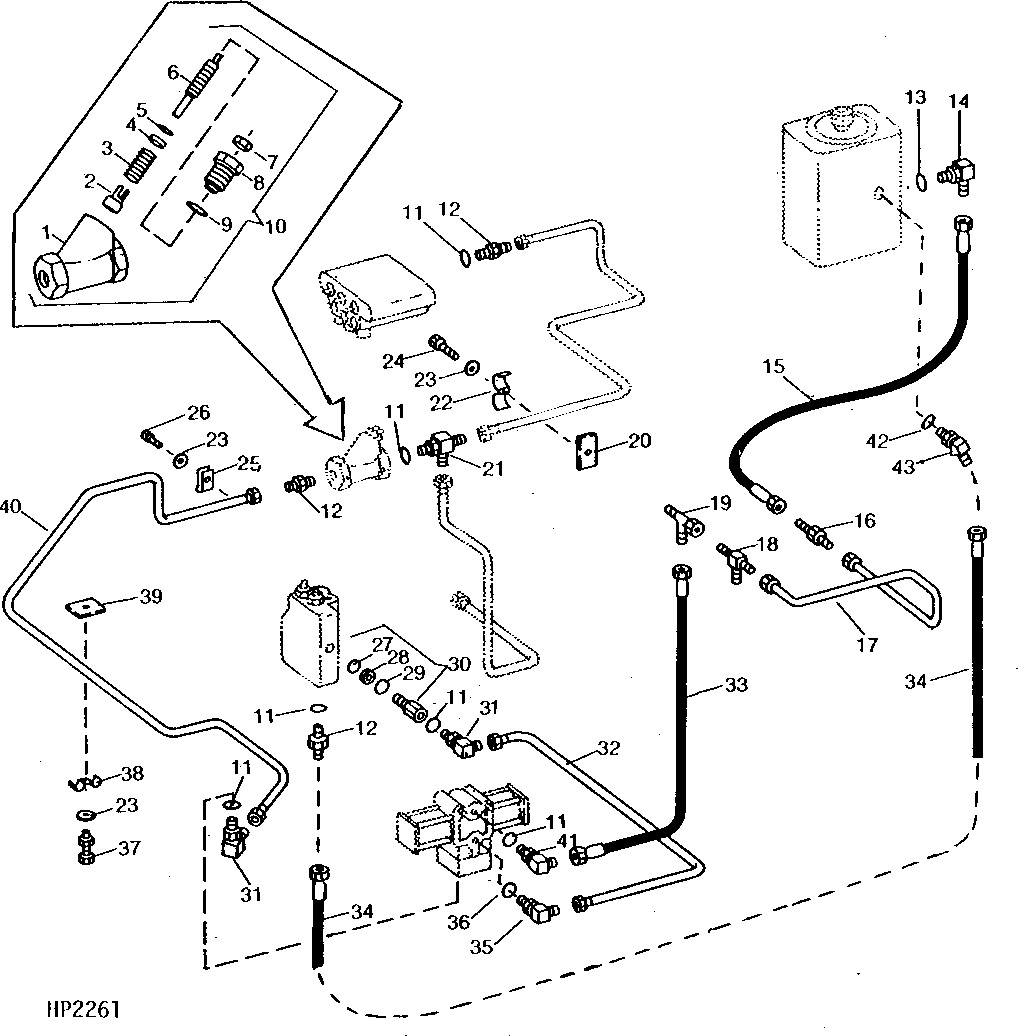

HYDRAULIC OIL LINE, DROP RATE VALVE, AND FULL FLOW PLUG (600001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	-
2	H89336	1	POPPET	(SUB AH90686)
3	H89338	1	SPRING	(SUB AH90686)
4	-	1	Part 4	(KIT AH90686)
5	A4365R	1	O-Ring	(KIT AH90686)
6	-	1	Part 6	(KIT AH90686)
7	H89949	1	NUT	(SUB AH90686)
8	-	1	Part 8	(KIT AH90686)
9	R26375	6	O-Ring	(KIT AH90686)
10	AH89358	1	FLOW CONTROL HYD. VALVE	-
11	R26375	6	O-Ring	-
12	R27237	3	Fitting	-
13	U12547	1	O-Ring	-
14	AR26723	1	ELBOW FITTING	(SUB AT32331) 90°
14	AT32331	1	Elbow Fitting	90°
15	AH94164	1	Hydraulic Hose	19 MM X 686 MM (3/4" I.D. X 27") LONG
16	H92201	1	Union Fitting	-
17	AH100374	1	Line	-
18	AT28383	1	Tee Fitting	-
19	H75415	1	Tee Fitting	-
20	H96857	1	Isolator	(INCLUDED IN KIT AH139151)
21	AT26327	2	Tee Fitting	-
22	AH91299	1	Clamp	-
23	24H1136	3	Washer	11/32" X 11/16" X 0.065"
24	H76139	1	Screw	SELF-TAPPING
25	AH79175	1	Clip	-
26	H65108	1	Screw	SELF-TAPPING
27	R28776	1	O-Ring	-
28	E41820	1	Back-Up Ring	-
29	U40745	1	O-Ring	-
30	AH89356	1	Pipe Plug	-
31	AR26763	2	ELBOW FITTING	(SUB AT32332) 90°
31	AR32332	2	Elbow Fitting	90°
32	AH100049	1	Line	-
33	AH94861	1	Hose	10 MM X 1372 MM (3/8" I.D. X 54") LONG
34	AH117398	1	Hydraulic Hose	-
35	AR37017	1	Elbow Fitting	90°
36	R26448	1	O-Ring	-
37	08H4416	1	Bolt	5/16" X 1"
37	12H303	1	Lock Washer	5/16"
37	14H785	1	Nut	5/16"
38	AH83847	1	Clamp	-
39	H83769	1	Foam Pad	(SUB H96857)
39	H96857	1	Isolator	-
40	AH100129	1	Line	-
41	AT32332	1	Elbow Fitting	90°
42	R26375	1	O-Ring	-
43	AT35599	1	Elbow Fitting	37°, 45°, (SUB FOR AR26745)
..	AH90686	1	Fitting Kit	DROP RATE VALVE
