Horizontal Unloading Auger Housing (14 Ft. and 17 Ft.) ( - 600000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2915	11	CAP SCREW	5/16" X 1-1/4"
1	12H303	11	Lock Washer	5/16"
1	14H785	11	Nut	5/16"
1	19H2117	11	Cap Screw	5/16" X 1-1/8"
2	-	1	Part 5	(MAKE FROM H81330) (USE WITH H96652)
3	H96652	1	Door	(SUB AH106900, THIS APPLICATION)
3	AH106900	1	Door	-
4	24H1224	4	Washer	11/32" X 1" X 1/16", (USE WITH H96652)
5	14H819	4	Wing Nut	5/16", (USE WITH H96652)
6	AH98805	1	Housing	(14'), (PERFORATED), (SUB AH128682)
6	AH98806	1	Housing	(17'), (PERFORATED), (SUB AH113392, AH106900, (4) 24H1224 AND (4) 14H819)
6	AH95390	1	Housing	(17'), (SOLID), (SUB AH112865, AH106900, (4) 24H1224 AND (4) 14H819)
6	AH95391	1	Housing	(14'), (SOLID), (SUB AH129066)
7	H96655	1	Spout	(SUB H109093)
7	H109093	1	Spout	-
8	24H1293	6	Washer	11/32" X 1-1/16" X 0.120"
8	24H1293	8	Washer	11/32" X 1-1/16" X 0.120"
9	19H1905	8	Cap Screw	5/16" X 1"
9	N10213	8	Lock Nut	-
10	19H1900	7	Cap Screw	5/16" X 3/4"
10	12H303	7	Lock Washer	5/16"
10	14H785	7	Nut	5/16"
11	H100027	1	Cover	(USE WITH PERFORATED AUGER HOUSING)

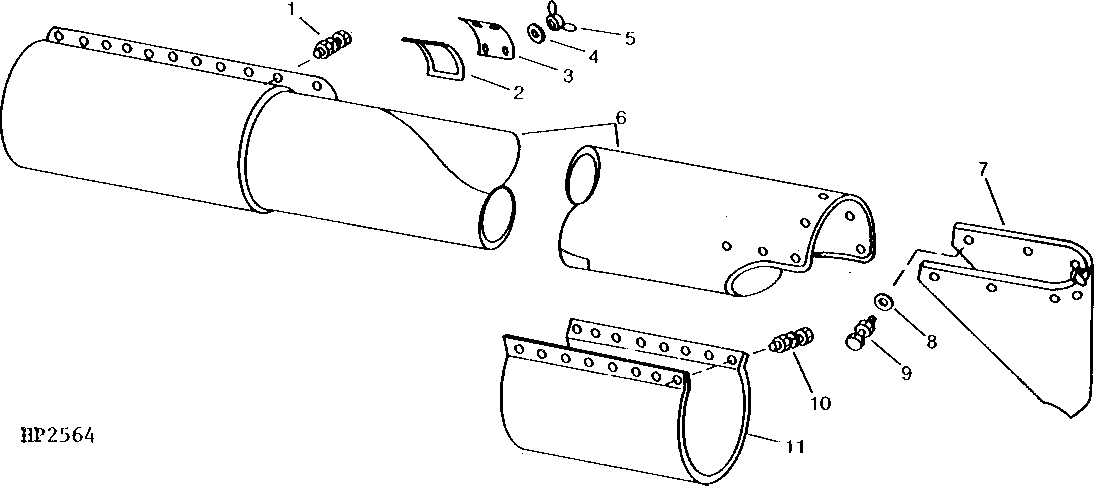

Horizontal Unloading Auger Housing (14 Ft. and 17 Ft.) ( - 600000)
