Horizontal Unloading Auger (14 FT. and 17 FT.)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H116292	1	Splined Coupling	-
2	24H900	1	Washer	11/16" X 1-3/4" X 0.194"
3	AH112452	1	Gudgeon	-
4	AH122717	1	Gudgeon	(14 FT. ONLY)
4	H127921	1	Splined Coupling	(17 FT. ONLY), W/O WASHER
5	24H1300	1	Washer	25/64" X 2" X 0.220"
5	24H1311	1	Washer	13/32" X 1-1/4" X 0.220"
6	H119566	1	Strip	90 MM (4") LONG
6	H119567	1	Strip	120 MM (5") LONG
6	H119568	1	Strip	150 MM (6") LONG
7	03H1557	1	Bolt	3/8" X 1-1/4"
7	H99923	1	Lock Nut	-
7	03H1495	1	Bolt	3/8" X 1-1/2"
8	AH111354	1	Seal	-
9	21H1029	3	Screw	5/16" X 3/4"
9	12H303	3	Lock Washer	5/16"
9	14H785	3	Nut	5/16"
10	H113717	3	Clip	-
11	H114709	6	Clip	-
12	AH123436	1	Auger	(14 FT.), (SUB FOR AH97026 AND AH112451)
12	AH123437	1	Auger	(17 FT.), (SUB FOR AH96555 AND AH113501)
13	03H1540	3	Bolt	5/16" X 3/4"
13	12H303	3	Lock Washer	5/16"
13	14H785	3	Nut	5/16"
14	22H897	1	Set Screw	1/4" X 1/4"
15	JD8554	1	Eccentric Locking Collar	-
16	C13434	2	PRESSED FLANGED HOUSING	-
16	H103264	2	Pressed Flanged Housing	-
17	JD8665	1	Ball Bearing	-
17	AH169077	1	Ball Bearing	(SUB FOR JD9273) (SUB AH214862)
18	H96645	1	Cap	-
19	24H1136	11	Washer	11/32" X 11/16" X 0.065"
20	19H1900	11	Cap Screw	5/16" X 3/4"
20	N10213	11	Lock Nut	-
20	N10212	5	Self-Locking Screw	-
20	N10213	5	Lock Nut	-
20	N167650	5	Screw	-
20	A22698	5	Nut	-

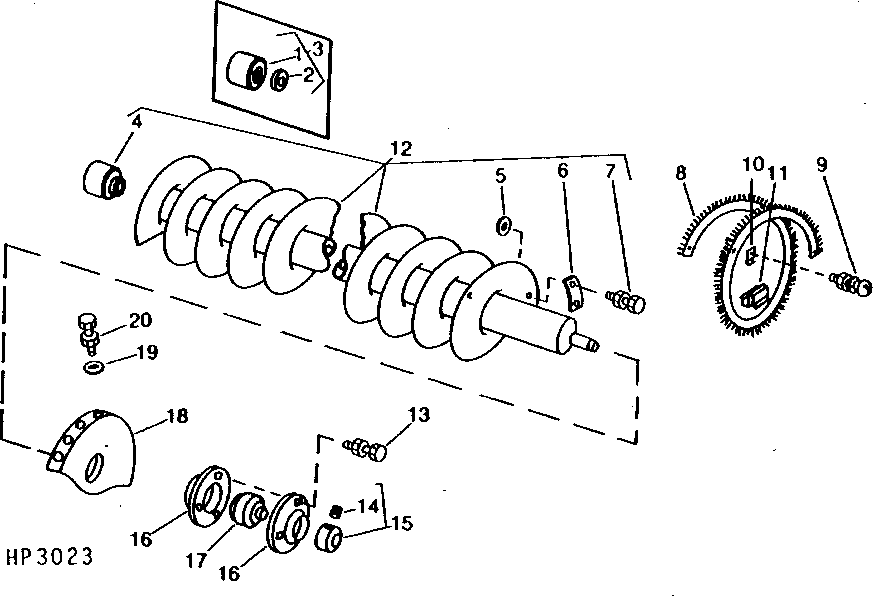

Horizontal Unloading Auger (14 FT. and 17 FT.)
