FUEL INJECTION PUMP, NOZZLES AND LINES (6466AH 01)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R76170	6	CLAMP	-
2	R69319	6	Clamp	(SUB R76170)
3	AR88495	1	FUEL LINE	(SUB RE27786) (ALSO ORDER RE23319 AND R79138)
4	R51937	1	Tube Nut	-
5	AR85519	1	Plug	-
6	R79138	1	SLEEVE	-
7	AR87443	1	UNION FITTING	(NO LONGER REQUIRED)
8	AR96862	1	FUEL LINE	NO. 6, (SUB FOR AR69451)
9	AR96861	1	FUEL LINE	NO. 5, (SUB FOR AR69450)
10	AR96860	1	FUEL LINE	NO. 4, (SUB FOR AR69449)
11	AR96859	1	FUEL LINE	NO. 3, (SUB FOR AR69448)
12	R58186	4	Clamp	-
12	R61144	2	Strap	-
12	R59305	2	Strap	-
12	21H1463	2	Cap Screw	0.190" X 7/8"
12	12H246	2	LOCK WASHER	0.190"
13	AR96858	1	FUEL LINE	NO. 2, (SUB FOR AR69447)
14	AR96857	1	FUEL LINE	NO. 1, (SUB FOR AR69446)
15	R59302	2	CLAMP	-
15	R61147	1	RETAINER	-
15	R59304	1	REINFORCEMENT	-
15	21H1463	5	Cap Screw	0.190" X 7/8"
15	12H246	5	LOCK WASHER	0.190"
16	R76568	1	ABSORBER	-
17	R59297	2	Half Clamp	-
17	R61145	1	Strap	-
17	R59298	1	Strap	-
17	21H1463	2	Cap Screw	0.190" X 7/8"
17	12H246	2	LOCK WASHER	0.190"
18	R64840	6	Washer	-
19	-	6	Part 31	(SUB AR74664 OR SE500102 OR SE501111)
20	R59294	6	SEALING RING	(USE WITH R59293 OR R83558)
20	R77551	6	O-Ring	(VITON), (USE WITH R87082)
21	R59293	6	FITTING	(SUB (6) R87082 AND (6) R77551)
21	R83558	6	FITTING	(SUB R87082 AND R77551)
21	R87082	6	Fitting	(ALSO ORDER R77551)
22	R51936	1	Sealing Washer	-
23	RE23319	1	FUEL LINE	(SUB FOR RE15806)
24	R79604	6	Tube Nut	-
25	R79605	6	Washer	-
26	R79606	6	Tee Fitting	-
27	RE15807	3	Fuel Line	-
28	RE15808	2	Fuel Line	-
29	RE27786	1	FUEL LINE	(SUB FOR RE15805 OR RE21103) (ALSO ORDER RE23319 AND R79138)
30	R79138	1	SLEEVE	-
31	AR88120	1	TEE FITTING	-
32	R54088	1	Fuel Line	(SUB AR104650)
33	R51936	3	Sealing Washer	(SUB FOR R63603)
34	AR93093	1	FUEL LINE	(SUB AR104650)
34	AR104650	1	Fuel Line	(SUB FOR AR93093)
35	AR88496	1	FUEL LINE	-
36	R68274	1	GEAR	(SUB FOR AR88905, THIS APPLICATION)
37	AR59115	3	SELF-LOCKING SCREW	-
38	R55396	4	STUD	-
39	R42729	4	Washer	-
40	R32511	4	NUT	-
41	-	1	Part 57	(SUB RE20042 AND (2) AR104674)
42	AR61514	1	Line	(SUB RE38732 AND R76822) (TO R39832 IN BLOCK)
42	AR91012	1	LINE	(SUB FOR AR61514) (SUB RE38732 AND R76822)
43	AR26746	1	Elbow Fitting	-
43	R79060	1	O-Ring	(SUB FOR R26287, THIS APPLICATION)
44	AR88914	1	Fuel Injection Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED) (ROBERT BOSCH PES6A100D410RS3033)
45	R55066	1	BRACKET	-

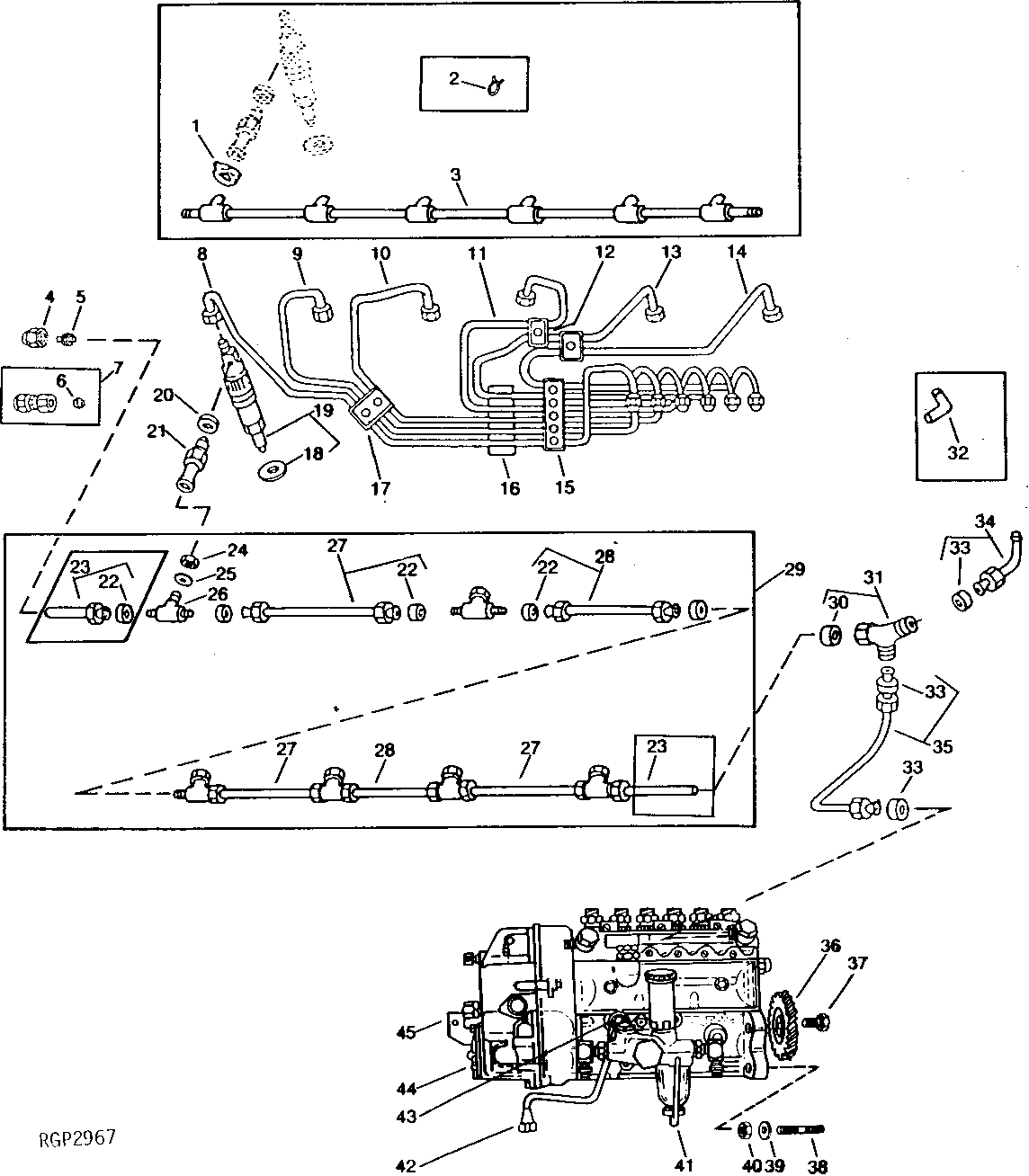

FUEL INJECTION PUMP, NOZZLES AND LINES (6466AH 01)
