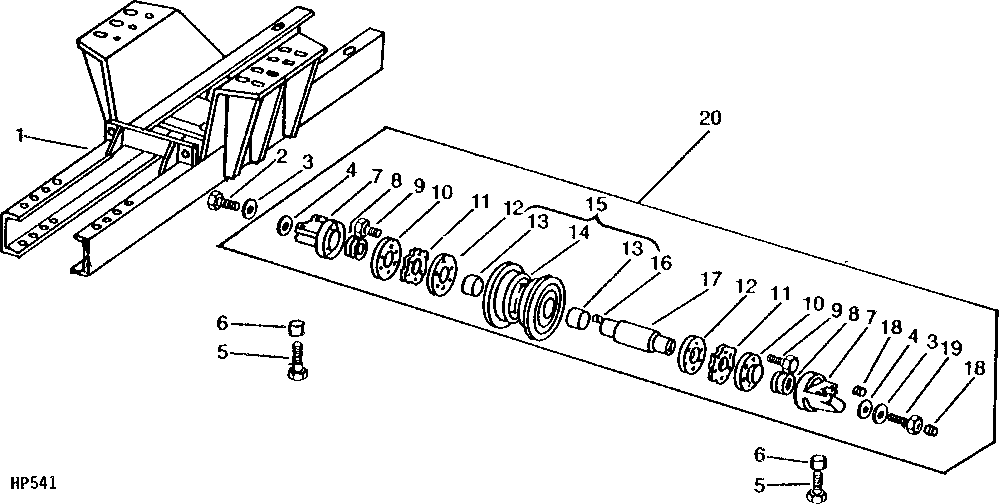

CRAWLER FRAME AND ROLLERS (RIGHT-HAND ILLUSTRATED) ( - 600470)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH94113	1	Frame	(LH) (6 ROLLER)
1	AH94114	1	Frame	(RH) (6 ROLLER)
2	19H2677	1	Cap Screw	3/4" X 1-3/4", (4 USED, 4 ROLLER; 5 USED, 5 ROLLER)
2	12H236	1	Lock Washer	3/4", (4 USED, 4 ROLLER; 5 USED, 5 ROLLER)
3	M3301T	6	Washer	(SUB T21397)
3	R78019	4	Washer	19.837 X 33.325 X 4.166 mm (25/32" X 1-5/16" X 0.164"), (SUB FOR T21397)
4	T16752	12	O-RING	-
5	19H2360	24	CAP SCREW	9/16" X 2-3/4"
5	19H2360	16	CAP SCREW	9/16" X 2-3/4"
5	12H317	24	Lock Washer	9/16"
5	12H317	16	Lock Washer	9/16"
6	P47436	24	Bushing	-
6	P47436	16	Bushing	-
7	T38808	12	Bracket	(SUB T74176)
7	T74176	8	Bracket	-
8	AT135802	12	SEAL	(SUB FOR AT71677)
8	AT78941	12	Seal	(SUB AT71677)
8	AT31122	12	Seal	(SUB AT42553)
8	AT42553	12	SEAL KIT	(SUB AT71674)
9	19H2923	1	Screw	3/8" X 1"
10	T33367	12	RING	-
11	T33369	12	PLATE	(SUB T33366)
11	T33366	12	Plate	-
12	T38969	12	GASKET	-
13	T16881	12	BUSHING	-
14	-	12	Part 26	-
15	AT32573	12	ROLLER	(SUB AT71674) ROLLER W/BRACKETS
15	AT71675	4	ROLLER	(WITH BUSHINGS)
16	T13381	7	DOWEL PIN	-
17	T40827	6	Shaft	(SUB AT71674)
18	P45808	1	Pipe Plug	(8 USED, 4 ROLLER; 10 USED, 5 ROLLER)
19	T16845	6	Bolt	(SUB T77122)
19	T77122	6	Cap Screw	-
20	AT32572	1	Roller	(SUB AT71674, THIS APPLICATION)
20	AT71674	1	Roller	(WITH BRACKETS)

CRAWLER FRAME AND ROLLERS (RIGHT-HAND ILLUSTRATED) ( - 600470)
