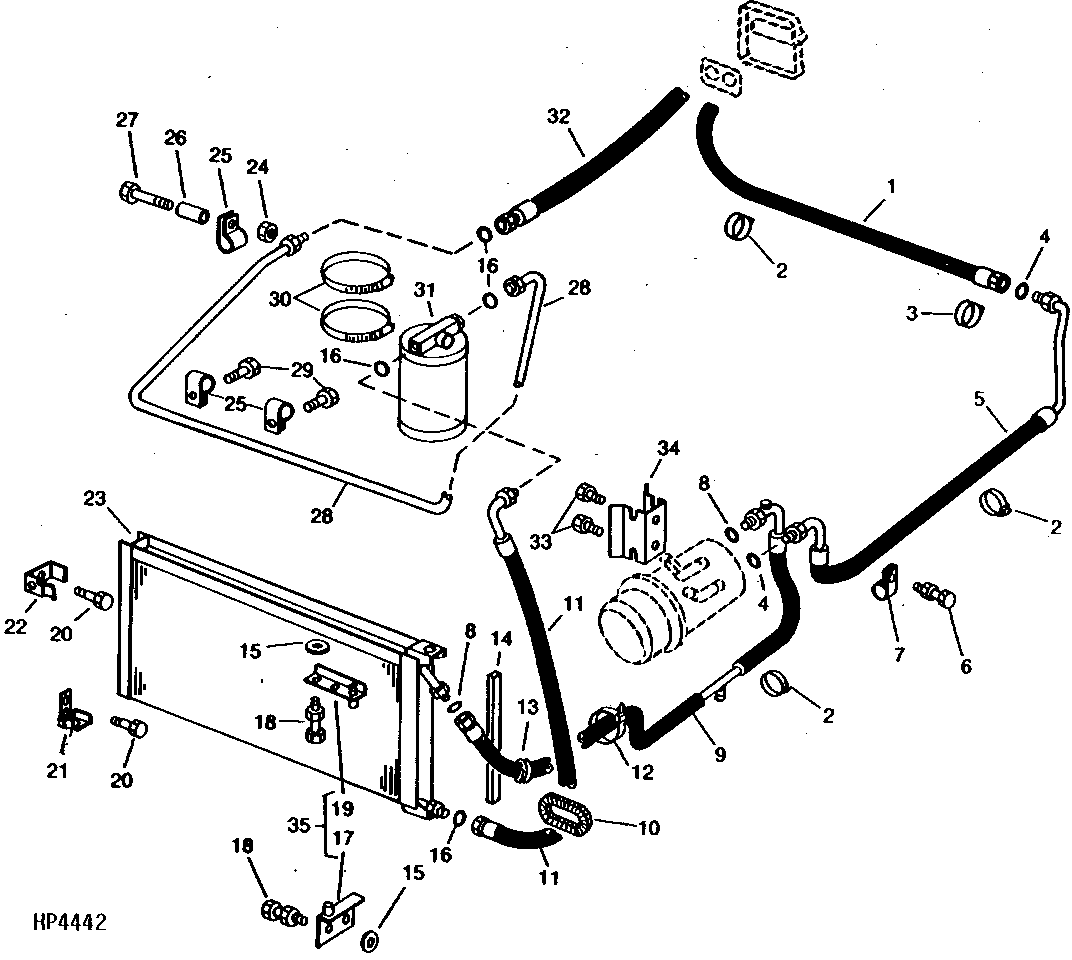

CONDENSER, RECEIVER, AND AIR CONDITIONER LINES (615401 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH110916	1	HOSE	SUCTION
2	H91298	4	Clip	-
3	H100879	1	Clamp	-
4	R33259	2	O-Ring	-
5	AH116707	1	Line	SUCTION
6	19H1948	1	Cap Screw	1/4" X 3/4"
6	N10217	1	Lock Nut	-
7	T27550	1	Clip	-
8	P51212	2	O-Ring	-
9	AH112231	1	HOSE	PRESSURE
10	-	1	Part 11	241 MM (9-1/2"), (CUT FROM H88857)
11	AH111050	1	Hose	PRESSURE
11	AT58260	1	HOSE	-
12	M66044	1	Tie Band	-
13	H87091	1	Grommet	-
14	-	1	Part 16	(CUT FROM H88769)
15	24H1136	4	Washer	11/32" X 11/16" X 0.065"
16	R10093	4	O-Ring	-
17	AH100082	1	Pivot	LOWER
18	N10213	4	Lock Nut	-
18	19H1813	4	CAP SCREW	5/16" X 5/8"
19	AH87960	1	Pivot	UPPER
20	H65108	5	Screw	SELF-TAPPING
21	AH87961	1	Pivot	-
22	AH87979	1	Support	-
23	AH87966	1	VAPOR CONDENSER	-
24	N10217	1	Lock Nut	-
25	AH76882	3	Clip	-
26	B13986	1	BUSHING	-
27	19H2102	1	Cap Screw	1/4" X 1-3/4"
28	AH112237	1	Line	ORDER AH155867
28	AH155867	1	Refrigerant Hose	-
29	19H1900	2	Cap Screw	5/16" X 3/4"
30	AR21842	2	Clamp	-
31	AT63170	1	Receiver-Dryer	(SUB AT125596)
31	AT125596	1	RECEIVER-DRYER	-
32	AH96504	1	HOSE	-
33	19M7865	2	Screw	M8 X 16
34	H87092	1	SUPPORT	RECEIVER
35	AH138733	1	Kit	-

CONDENSER, RECEIVER, AND AIR CONDITIONER LINES (615401 - )
