CONDENSER, RECEIVER, AND AIR CONDITIONER LINES ( - 600000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH110916	1	HOSE	SUCTION
1	AH92943	1	Hose	(SUB AH110916)
2	H91298	5	Clip	-
3	R33259	1	O-Ring	-
4	AH91604	1	Line	(SUB AH110918)
4	AH110918	1	LINE	SUCTION
5	19H2522	1	CAP SCREW	3/8" X 2"
5	12H304	1	Lock Washer	3/8"
5	19M7170	1	Cap Screw	M10 X 50
5	12M7066	1	Lock Washer	10 mm
6	24H1682	1	Washer	13/32" X 7/8" X 0.120"
7	R60171	1	STRAP	-
8	R60172	2	Nut	-
9	R60170	2	Valve	-
10	AH91610	1	Hose	PRESSURE
11	AH83545	1	Clip	(SUB R72659)
11	R72659	1	Clamp	-
12	AH96501	1	LINE	PRESSURE
13	P51212	1	O-Ring	-
14	-	1	Part 20	(CUT FROM H88769)
15	H87091	1	Grommet	-
16	-	1	Part 22	241 MM (9-1/2"), (CUT FROM H88857)
17	R10093	3	O-Ring	-
18	24H1136	4	Washer	11/32" X 11/16" X 0.065"
19	AH100082	1	Pivot	LOWER
20	19H1813	4	CAP SCREW	5/16" X 5/8"
20	N10213	4	Lock Nut	-
21	AH87960	1	Pivot	UPPER
22	H65108	5	Screw	SELF-TAPPING
23	AH87961	1	Pivot	-
24	AH87979	1	Support	-
25	AH87966	1	VAPOR CONDENSER	-
26	AH76882	3	Clip	-
27	14H785	2	Nut	5/16"
27	19H1900	2	Cap Screw	5/16" X 3/4"
28	19H1800	1	Cap Screw	3/8" X 1-1/2"
29	28H1522	1	Spacer	0.493" X 0.675" X 11/16", 3/8" X 11/16"
30	H87092	1	SUPPORT	RECEIVER
31	AR21842	2	Clamp	-
32	AH234098	1	Receiver-Dryer	(SUB FOR AR59780)
33	AH96504	1	HOSE	-
34	T27550	1	Clip	-
35	19H1948	1	Cap Screw	1/4" X 3/4"
35	N10217	1	Lock Nut	-
36	AH138733	1	Kit	-

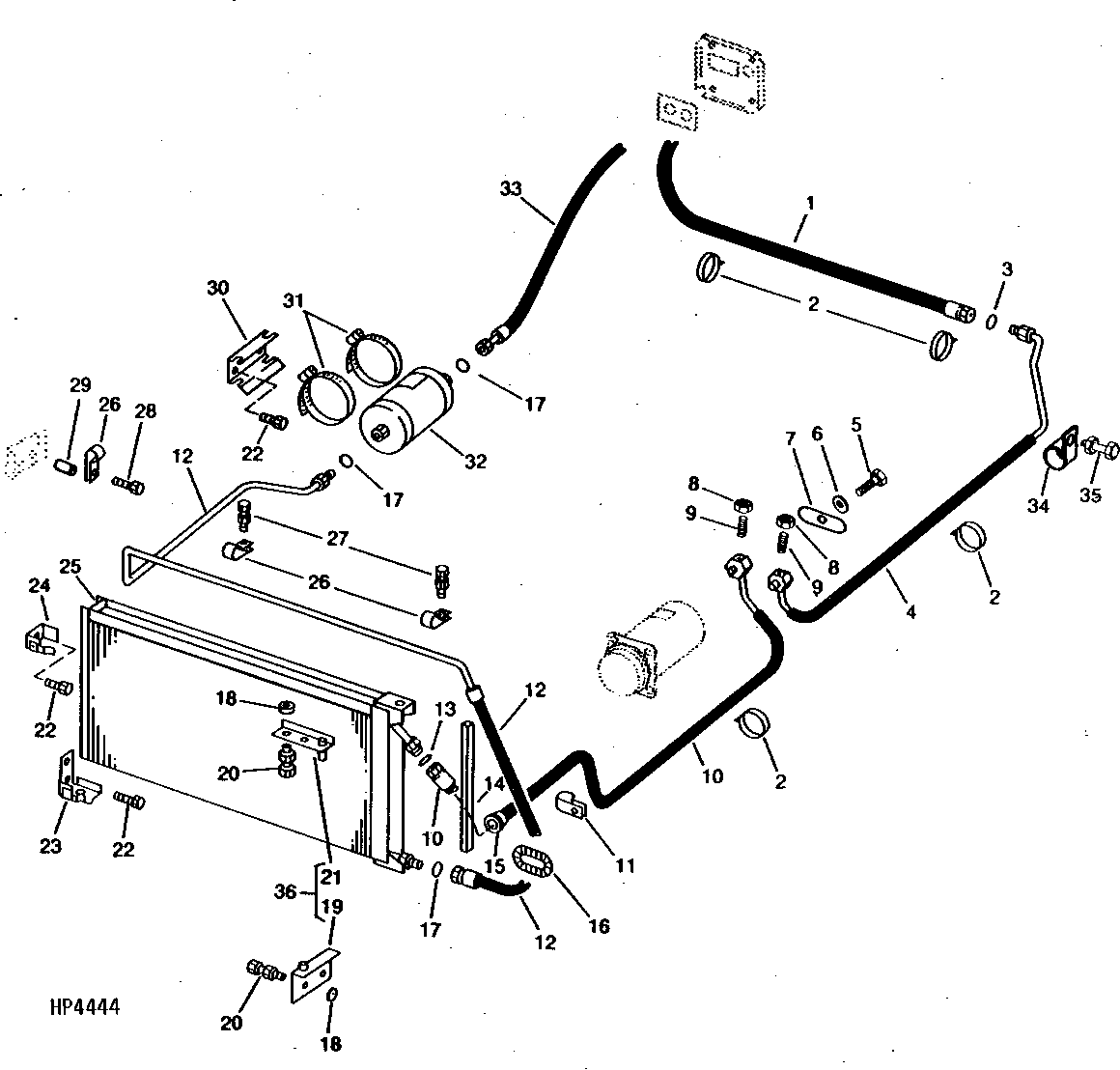

CONDENSER, RECEIVER, AND AIR CONDITIONER LINES ( - 600000)
