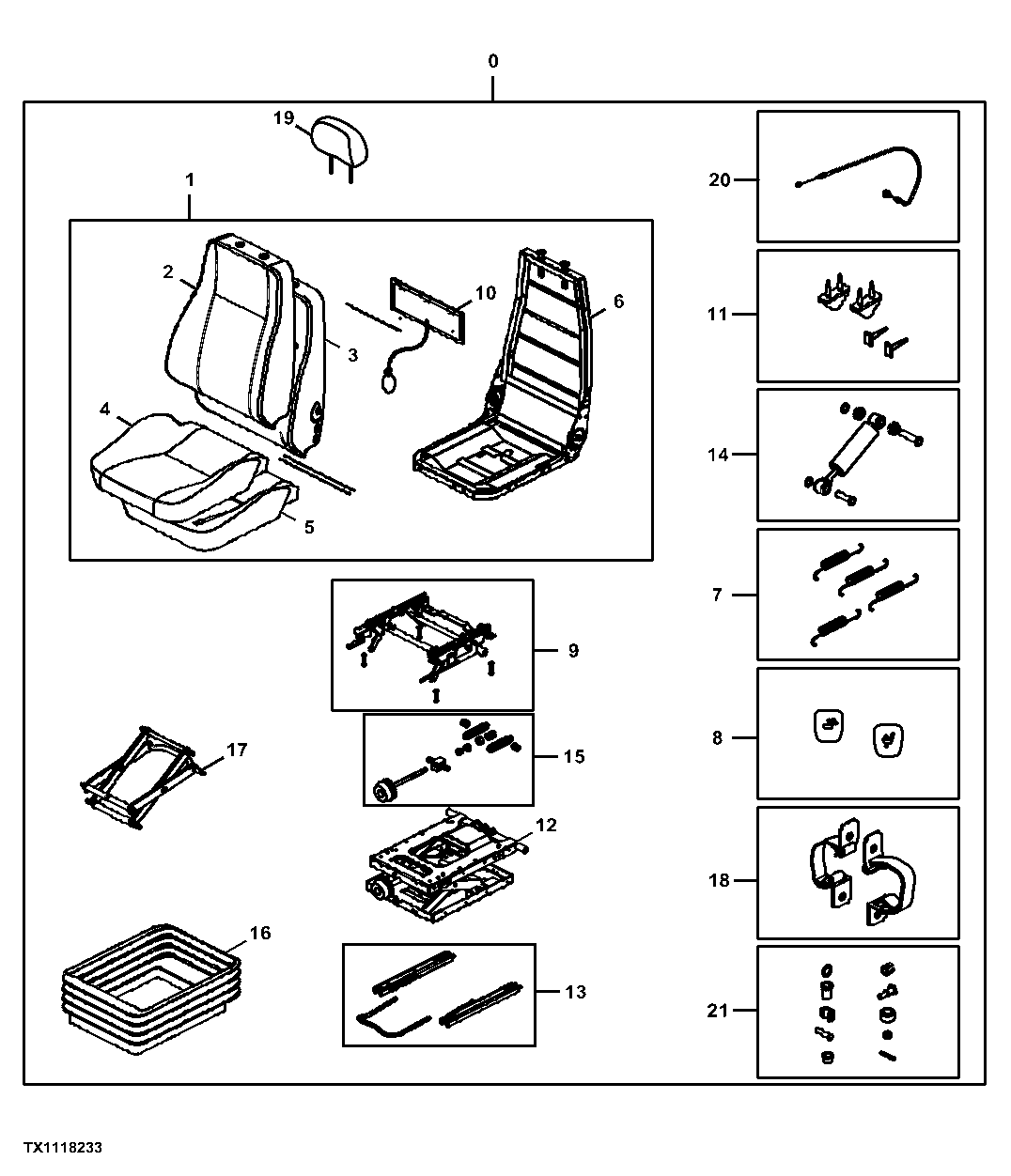

Mechanical Suspension Seat Components

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	FYA00009134	1	Seat	Mechanical, SUB FOR FYA00002203
1	AT417644	1	Seat	-
2	AT403884	1	Cushion Cover	Seat Back Cover
3	AT417623	1	Seat Back	Seat Back Foam
4	AT403886	1	Cushion Cover	Seat Bottom Cover
5	4392798R	1	Pad	Bottom Seat Foam, SUB FOR AT417624
6	AT417625	1	Frame	Seat Frame
7	AT417629	1	Spring Kit	Height Riser Spring
8	AT417628	1	Seat Knob Kit	Handle Kit
9	4392801R	1	Stand	Height Riser Kit, SUB FOR AT417631
10	AT417630	1	Cushion Kit	Lumbar Support
11	4392805R	1	Stop	Bumperspot Kit, SUB FOR AT417635
12	AT417645	1	Seat Suspension	Seat Suspension Kit
13	AT417643	1	Adjuster Kit	Fore Aft Adjustment Kit
14	AT417633	1	Torsional Damper	Torsional Damper Kit
15	4392804R	1	Adjuster	SUB FOR AT417648
16	AT417646	1	Seat Suspension Boot Kit	Suspension Cover
17	AT417647	1	Pivot Kit	Center Pivot Kit
18	AT417636	1	Belt Kit	Tether Belt Includes Hardware
19	AT403887	1	Head Restraint	Head Rest
20	AT417627	1	Seat Adjustment Cable Kit	Adjuster Cable
21	AT417634	1	Bearing Kit	Bearing Kit

Mechanical Suspension Seat Components
