Counterweight Removal Device High Pressure Lines

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4629744	1	Valve	-
1	-	2	Part 2	J271085 NLA
1	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
1	19M8197	2	Cap Screw	M10 X 85, SUB FOR J901085
2	14M7274	2	Nut	M10, SUB FOR J950010
3	24M7101	2	Washer	11 X 34 X 3 mm, SUB FOR J217083
4	FYA40001838	1	Bracket	-
5	19M8011	2	Cap Screw	M12 X 30, SUB FOR J921230
6	A852423	1	Tee Fitting	INCLUDES 957366
6	957366	1	O-Ring	-
7	A852323	1	Elbow Fitting	INCLUDES 957366
7	957366	1	O-Ring	-
8	A853364	1	Elbow Fitting	INCLUDES 4506424
8	4506424	1	O-Ring	-
9	A853366	1	Elbow Fitting	INCLUDES AT318035
9	AT318035	1	O-Ring	SUB FOR 4506424
10	A853186	1	Adapter Fitting	INCLUDES 4506429
10	4506429	1	O-Ring	-
11	9773182	1	Pipe	-
12	4311052	1	Hydraulic Hose	-
13	4343351	1	Hydraulic Hose	-
14	A852544	1	Tee Fitting	INCLUDES 4506418
14	4506418	1	O-Ring	-
15	4651909	1	Control Valve	-
16	-	3	Part 25	J271290 NLA
16	24M7345	3	Washer	13.500 X 24 X 2.500 mm, SUB FOR J222012
16	19M7943	3	Cap Screw	M12 X 90, SUB FOR J901290
17	A852333	1	Elbow Fitting	INCLUDES 4297380
17	4297380	1	O-Ring	SUB FOR 4509180 OR 4622346
18	A853444	2	Tee Fitting	INCLUDES 4506418
18	4506418	1	O-Ring	-
19	A852444	1	Tee Fitting	INCLUDES 4506418
19	4506418	1	O-Ring	-
20	4285109	1	Tee Fitting	INCLUDES 4506418
20	4506418	1	O-Ring	-
21	A853144	2	Adapter Fitting	INCLUDES 4506418
21	4506418	1	O-Ring	-
22	4282549	1	Hydraulic Hose	-
23	4388116	1	Hydraulic Hose	-
24	4422973	1	Hose	-
25	T77857	6	O-Ring	SUB FOR 4138938
26	FYA40001840	1	Pipe	-
27	FYA40001841	1	Pipe	-
28	4189858	2	Clamp	-
29	24M7345	2	Washer	13.500 X 24 X 2.500 mm, SUB FOR J222012
29	-	2	Part 45	SUB FOR J271260
29	19M7363	2	Cap Screw	M12 X 60, SUB FOR J901260
30	FYA40001839	1	Cover	-
31	4374495	1	Hydraulic Hose	-
32	4374496	1	Hose	-
33	T77857	4	O-Ring	SUB FOR 4138938
34	4327294	2	Hose Guard	-
35	4190263	1	Clip	-
36	4411911	1	Hose Clamp	-
37	R73291	2	Clamp	SUB FOR 4190262
39	-	5	Part 56	J271025 NLA
39	19M7402	5	Cap Screw	M10 X 25, SUB FOR J901025
39	24M7346	3	Washer	11 X 20 X 2 mm, SUB FOR J222010
41	4249324	2	Washer	-
42	4620787	1	Valve	-
43	4198472	1	Adapter Fitting	INCLUDES 4297380
43	4297380	2	O-Ring	SUB FOR 4622346, 4509180 OR 4674883
44	4202112	2	Elbow Fitting	INCLUDES 4297380
44	4297380	1	O-Ring	SUB FOR 4622346, 4509180 OR 4674883
46	A852133	1	Adapter Fitting	INCLUDES 4297380
46	4297380	1	O-Ring	SUB FOR 4622346, 4509180 OR 4674883
47	FYA40006642	1	Pipe	-
48	4285797	1	Hose	-
49	4190125	2	Clamp	-
50	19M7362	2	Cap Screw	M12 X 55, SUB FOR J901255
50	24M7345	2	Washer	13.500 X 24 X 2.500 mm, SUB FOR J222012
50	-	2	Part 70	J271255 NLA
51	4193848	1	Clip	SUB FOR 4190264, 4193848
52	FYA00016565	1	Valve	-
53	J780612	2	Bolt	-
54	A853344	1	Elbow Fitting	INCLUDES 4506418, SUB FOR 4200580
54	4506418	1	O-Ring	-
55	4621470	1	Reducer	INCLUDES 4140469
55	4140469	1	O-Ring	-
56	FYA60008701	1	Clamp	-
57	-	2	Part 83	J270125 NLA
57	19M7402	2	Cap Screw	M10 X 25, SUB FOR J901025
57	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
58	4487212	1	Hydraulic Hose	-
59	FYA00018147	1	Hose	-
60	FYA00011728	1	Hose	-
61	T77857	6	O-Ring	SUB FOR 4138938
63	4506418	2	O-Ring	-
64	FYA00006354	1	Valve	-
65	4362457	1	Adapter	-
56A	-	1	Part 81	NSEP
56B	FYA00011088	1	Plate	-

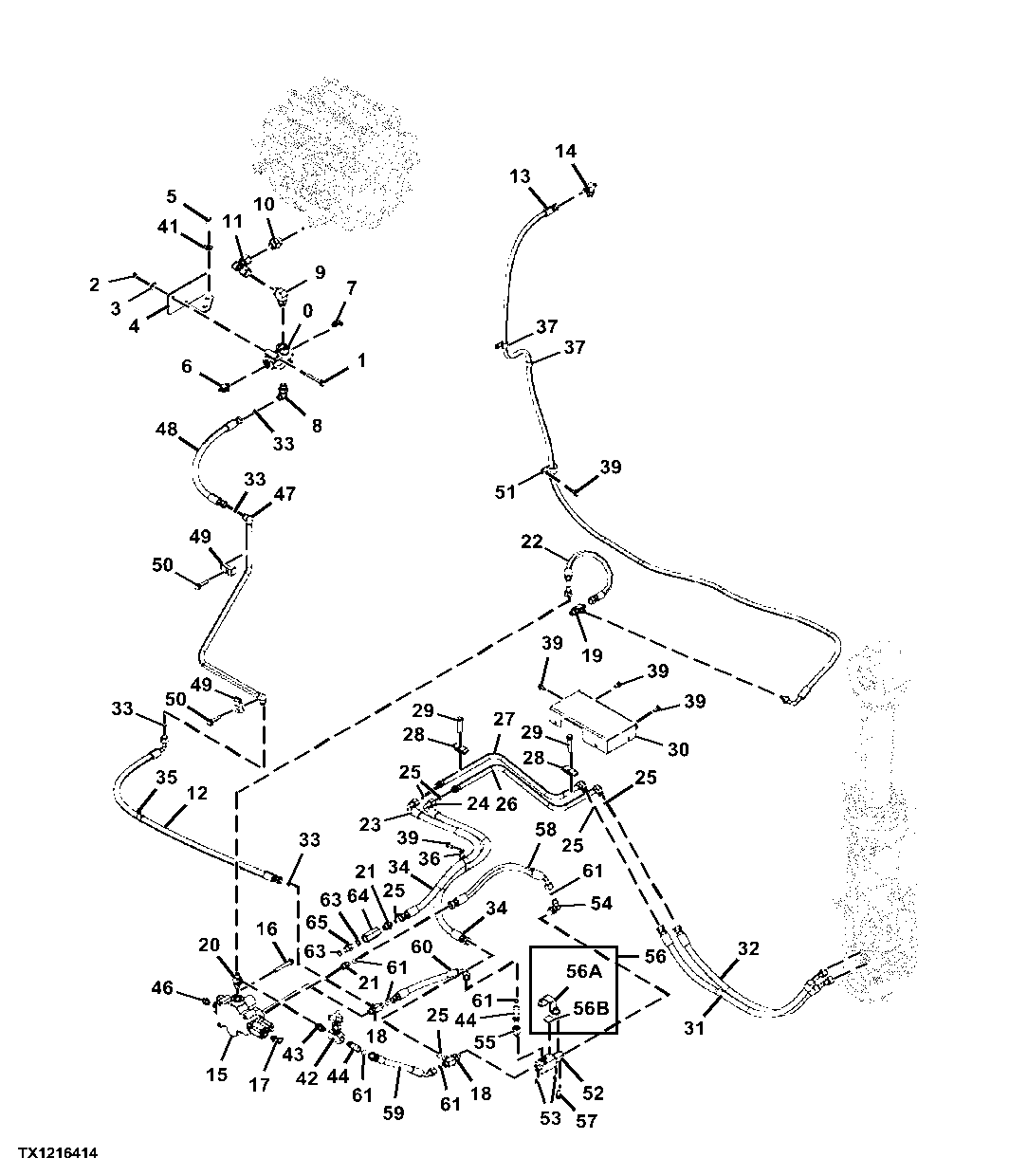

Counterweight Removal Device High Pressure Lines
