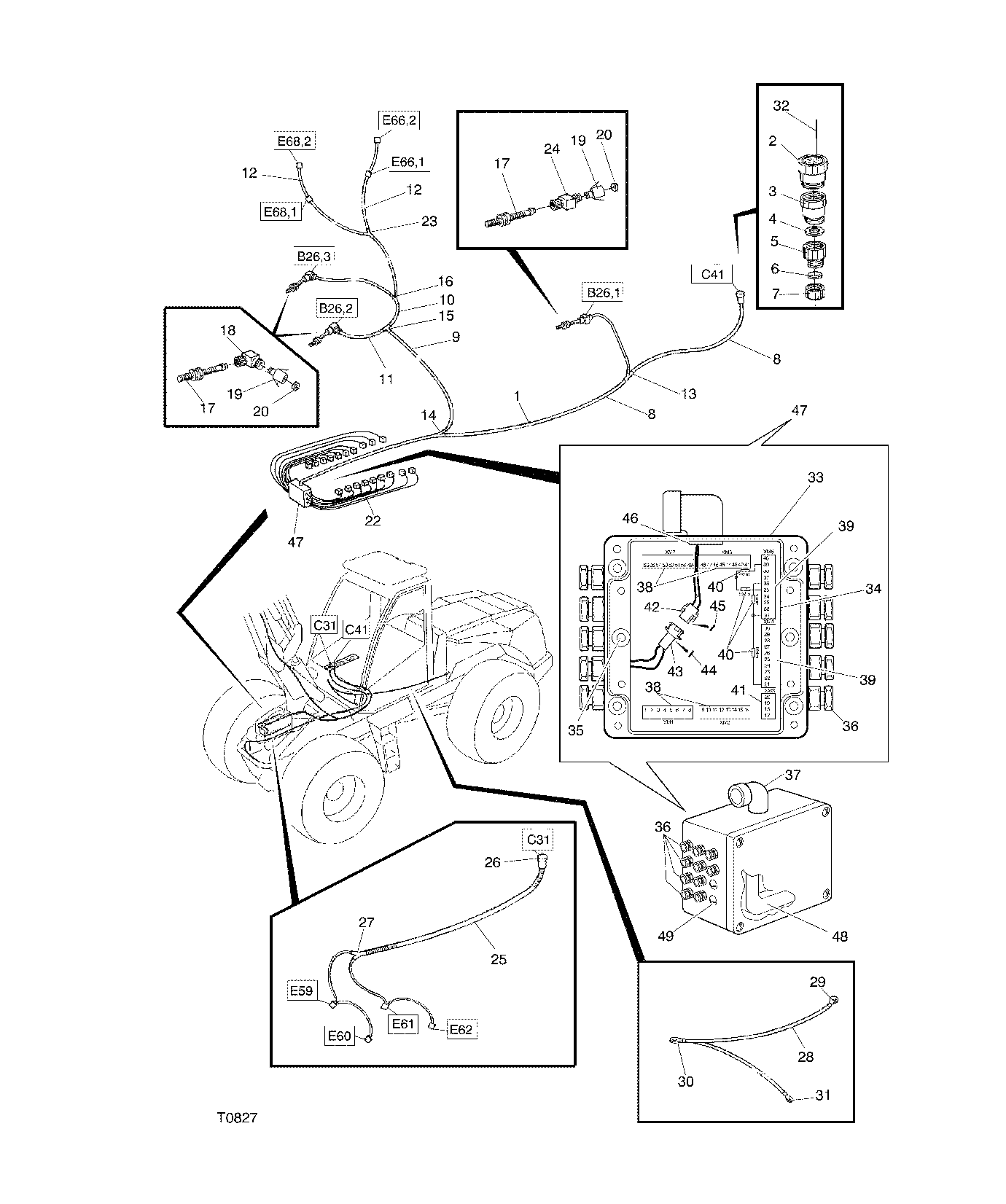

ELECTRICAL SYSTEM ELECTRICAL MOUNTING F038322 31 2 ( 214 - ) T0827 [T0827]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F602343	1	CABLE HARNESS	-
1	F040037	1	CABLE HARNESS	-
2	F013788	1	CONNECTOR	-
3	F013784	1	EXTENDER	-
4	F038843	1	SEAL	-
5	F038842	1	NUT	-
6	F041305	1	GASKET	-
7	F040315	1	WASHER	-
8	-------	1	O-RING	-
9	-------	1	O-RING	-
10	-------	11	O-RING	-
11	-------	1	O-RING	-
12	-------	1	O-RING	-
13	F015029	1	Y-CONNECTION	-
14	F013881	1	Y-CONNECTION	-
15	F040666	1	T-CONNECTION	-
16	F013878	1	Y-CONNECTION	-
17	F040637	3	SENSOR	-
18	F040636	2	CONTACT	-
19	F041303	3	CLAMP	-
20	F041304	3	GASKET	-
22	-------	18	O-RING	-
23	F035217	1	Y-CONNECTION	-
24	F041526	1	CONTACT	-
25	F040042	1	CABLE HARNESS	-
26	F011332	1	Electrical Connector Assy	-
27	F035217	1	Y-CONNECTION	-
28	F040036	1	CABLE HARNESS	-
29	F040608	1	Elec. Connector Terminal	-
30	F040311	1	CABLE LUG	-
31	F043155	1	Elec. Connector Terminal	-
32	F055175	37	CONNECTOR	-
33	F040041	1	CONNECTING BOX	-
34	F024103	1	LOADER MODULE	-
35	F026187	2	BRACKET	-
36	F040642	18	CONDUIT ENTRY	-
36	F040642	19	CONDUIT ENTRY	-
37	F043248	1	ELBOW	-
38	F025214	4	CONNECTOR	-
39	F025215	2	CONNECTOR	-
40	F033931	4	RESISTOR	-
41	F025213	1	CONNECTOR	-
42	F011415	1	Electrical Connector Assy	-
43	F011332	1	Electrical Connector Assy	-
44	F005267	2	PIN	-
45	F005268	2	CABLE LUG	-
46	F037161	1	NUT	-
47	F040040	1	CONNECTING BOX	-
47	F602385	1	CONNECTING BOX	-
48	F047449	1	RUBBER PLATE	-
49	F040641	3	PLUG	-
49	F040641	2	PLUG	-
-	-------	1	O-RING	-
-	-------	1	O-RING	-
-	-------	1	O-RING	-

ELECTRICAL SYSTEM ELECTRICAL MOUNTING F038322 31 2 ( 214 - ) T0827 [T0827]
