Открытый узел

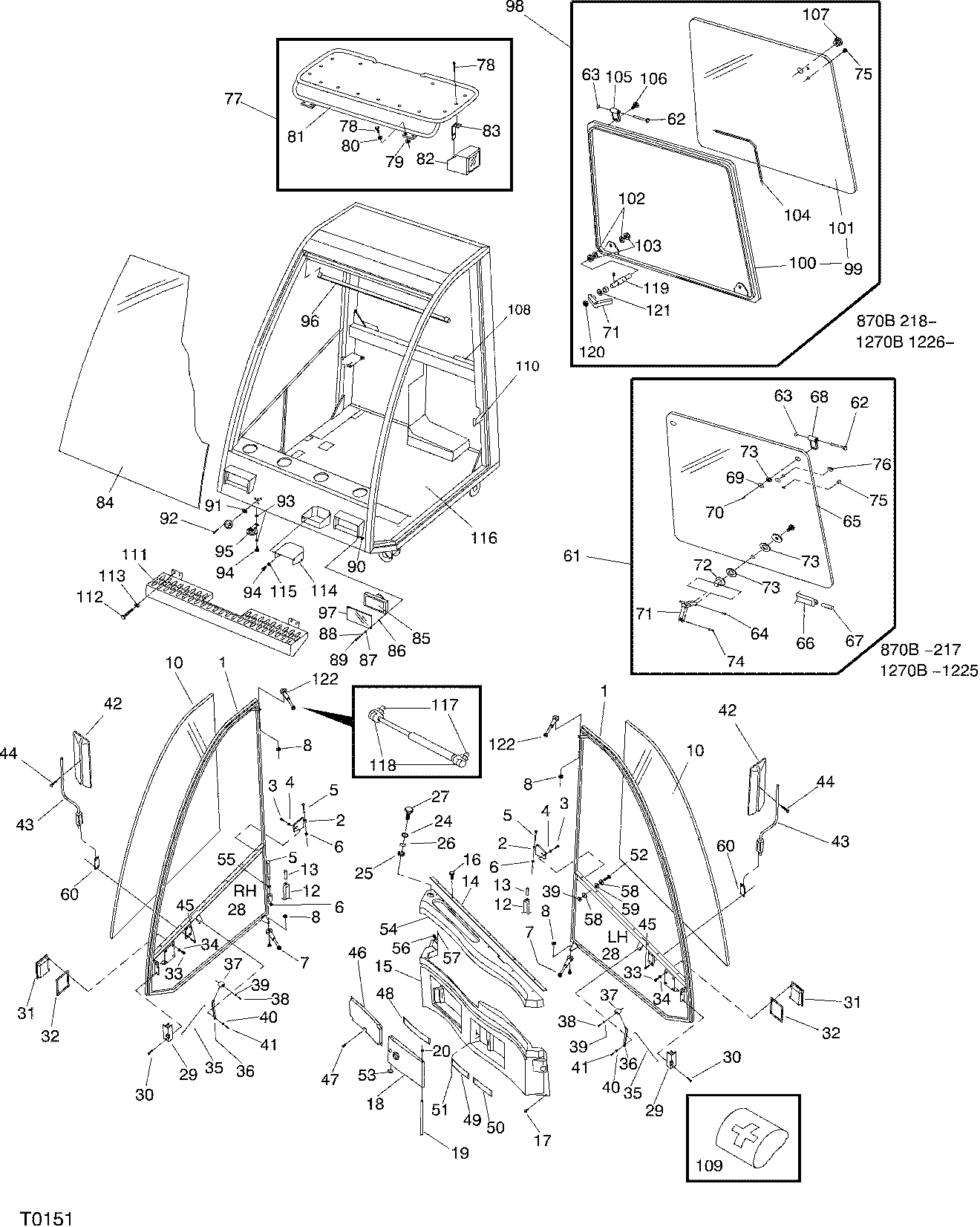

CAB CAB F038322 61 2 ( 214 - ) T0151 [T0151]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F046514	1	DOOR ASSY	-
1	F046515	1	DOOR	-
2	F040927	2	HINGE	-
3	F046560	4	SCREW	-
4	F040938	4	WASHER	-
5	F040904	6	PIN	-
6	F013899	6	CIRCLIP	-
7	F040960	2	GAS SPRING	-
8	F040934	4	LOCK NUT	-
9	F046553	1	DOOR	-
9	F046552	1	DOOR	-
10	F040949	1	WINDOW	-
10	F040950	1	WINDOW	-
11	F040925	1	DOOR	-
11	F040926	1	DOOR	-
12	F040954	1	SEAL	-
13	F040953	1	ROUND BAR	-
14	F040913	1	BRACKET	-
15	F040921	1	DOOR PANEL	-
16	F003716	6	SCREW	-
17	F042787	8	SCREW	-
18	F040924	1	COVER	-
19	F040919	1	PIN	-
20	F040946	1	CIRCLIP	-
21	F040920	2	BRACKET	-
22	F042785	8	RIVET	-
23	F040935	8	WASHER	-
24	F040899	1	AIR NOZZLE	-
25	F040900	1	AIR NOZZLE	-
26	F040901	1	AIR NOZZLE	-
27	F040942	2	SCREW	-
28	F040918	2	INSULATION	-
29	F040963	1	Lock	-
29	F040962	1	DOOR LOCK	-
30	F040932	4	SCREW	-
31	F040964	1	HANDLE	-
31	F040965	1	HANDLE	-
32	F040967	2	BASE	-
33	F040961	8	SCREW	-
34	F040937	8	WASHER	-
35	F040911	2	ROD	-
36	F040912	2	LEVER	-
37	F040903	2	HANDLE	-
38	F046558	2	SCREW	-
39	F041006	8	LOCK NUT	-
40	F040936	4	WASHER	-
41	F046556	2	SCREW	-
42	F040955	2	MIRROR	-
43	F040956	2	ARM	-
44	F046566	2	KNOB	-
45	F046555	4	SCREW	-
46	F040923	1	COVER	-
47	F040941	5	RIVET	-
48	F040916	1	BAND	-
49	F040915	1	BAND	-
50	F040917	1	BAND	-
51	F040931	6	Pin Fastener	-
52	F003469	4	SCREW	-
53	F040966	2	MAGNET	-
54	F040922	1	DOOR PANEL	-
55	F046565	12	WASHER	-
56	F042857	1	TAPE	-
57	F046387	1	PLUG	-
58	F040907	4	WASHER	-
59	F040906	2	Washer	-
60	F046551	2	SEAL	-
61	F040930	1	REAR WINDOW	-
62	F040902	2	PIN	-
63	F040945	2	LOCK WASHER	-
64	F040947	1	PIN	-
65	F040951	1	REAR WINDOW	-
66	F040952	1	STRIP	-
67	F040953	1	ROUND BAR	-
68	F040908	2	HINGE	-
69	F040907	3	WASHER	-
70	F003716	3	SCREW	-
71	F040910	1	HANDLE	-
71	F057349	2	HANDLE	-
72	F040905	1	BRACKET	-
73	F040906	6	Washer	-
74	F040948	1	PIN	-
75	F040958	2	PLUG	-
76	F040959	1	PLUG	-
77	F040929	1	LIGHT ASSY	-
78	F046557	10	SCREW	-
79	F040939	10	WASHER	-
80	F040914	8	WASHER	-
81	F040928	1	LIGHT RAMP	-
82	F045214	14	WORKING LIGHT	-
83	F046554	2	BRACKET	-
84	F057749	1	WINDOW	-
85	F046563	2	HEADLIGHT	-
86	F043592	4	WASHER	-
87	F043593	4	WASHER	-
88	F043596	4	SPRING	-
89	F043597	4	SCREW	-
90	F043594	4	CLIP	-
91	F046561	2	BUSHING	-
92	F046559	5	SCREW	-
93	F030452	2	WASHER	-
94	F003523	5	SCREW	-
95	F045392	1	SIGNAL HORN	-
96	F046564	1	SUN VISOR	-
97	F046550	2	PROTECTION	-
98	F057332	1	WINDOW	-
99	F057333	1	WINDOW	-
100	F057334	1	FRAME	-
101	F050368	1	REAR WINDOW	-
102	F003170	4	WASHER	-
103	F030100	4	LOCK NUT	-
104	F050369	1	SEALING STRIP	-
105	F050370	2	HINGE	-
106	F050371	2	SCREW	-
107	F050372	1	PLUG	-
108	F048083	2	HOLDER ASSY	-
109	F046416	1	FIRST AID KIT	-
110	F045983	1	Strap	-
111	F042079	1	PLATFORM	-
112	F003416	4	SCREW	-
113	F003339	4	WASHER	-
114	F048255	1	COVER PLATE	-
115	F042815	4	Washer	-
116	F047019	1	CARPET	-
117	F036336	8	BOLT	-
118	F036337	8	LINK YOKE	-
119	F057348	1	PIN	-
120	F046556	2	SCREW	-
121	F003170	2	WASHER	-
122	F058248	2	GAS OPERATED CYLINDER	-
-	F043117	1	CAB	-

CAB CAB F038322 61 2 ( 214 - ) T0151 [T0151]

Нет текстового описания
