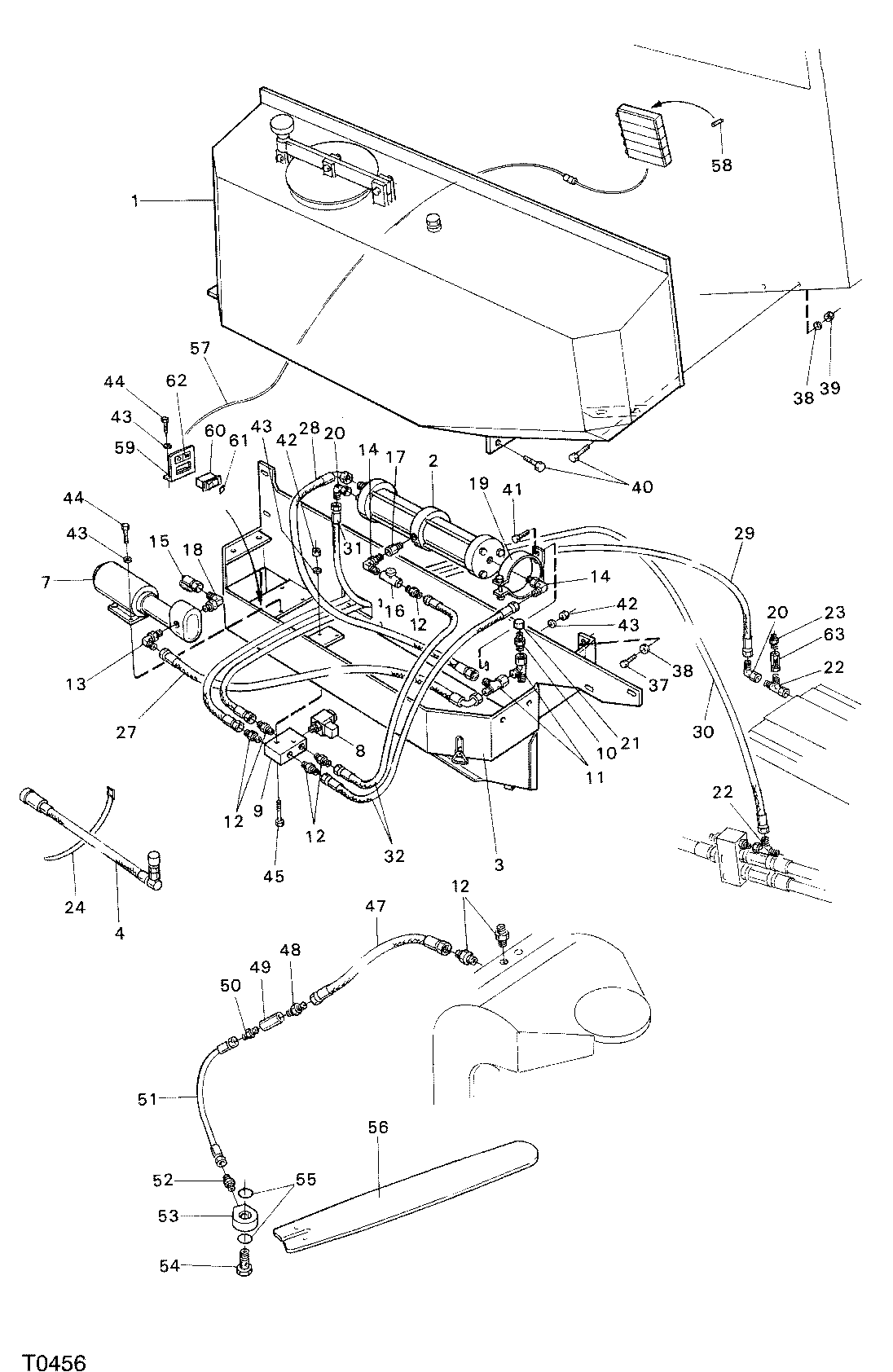

OPTIONAL EQUIPMENTS UREA UNIT F044954 86 2 T0456 [T0456]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	1	O-RING	-
2	-------	1	O-RING	-
3	-------	1	O-RING	-
4	-------	1	O-RING	-
7	F013922	1	PUMP	-
8	F015492	1	VALVE	-
9	F015493	1	VALVE BLOCK	-
10	F005059	1	Fitting	-
11	F005073	2	Tee Fitting	-
12	F005055	8	NIPPLE	-
13	F012592	1	Elbow Fitting	-
14	F024402	2	Elbow Fitting	-
15	F029609	1	QUICK COUPLING	-
16	F024403	1	THROTTLE VALVE	-
17	F023030	1	CONNECTION	-
18	F005605	1	HOSE CONNECTION	-
19	F018173	2	CLAMP	-
20	F022417	2	Elbow Fitting	-
21	F022094	1	NUT	-
22	F023535	2	Tee Fitting	-
23	F005057	1	Fitting	-
24	F011353	1	BELT	-
27	F030701	1	HOSE-ASSY	-
28	F030702	1	HOSE-ASSY	-
29	F030703	1	HOSE-ASSY	-
30	F030704	1	HOSE-ASSY	-
31	F030705	1	HOSE-ASSY	-
32	F023020	2	HOSE-ASSY	-
37	F003541	4	SCREW	-
38	F003340	16	WASHER	-
39	F003590	8	LOCK NUT	-
40	F003542	8	SCREW	-
41	F003525	4	SCREW	-
42	F003587	6	LOCK NUT	-
43	F003338	12	WASHER	-
44	F020748	6	SCREW	-
45	F003474	2	SCREW	-
47	F024649	1	HOSE-ASSY	-
48	F005057	1	Fitting	-
49	F020746	1	CHECK VALVE	-
50	F005052	1	NIPPLE	-
51	F020131	1	HOSE-ASSY	-
52	F005053	1	NIPPLE	-
53	F014619	1	BANJO	-
54	F014620	1	BANJO SCREW	-
55	F017216	2	O-RING	-
56	F031445	1	SWORD	-
57	F029853	1	CABLE HARNESS	-
58	F001556	1	FUSE	-
59	F029888	1	BRACKET	-
60	F013306	1	SWITCH	-
61	F013358	1	SYMBOL	-
62	F029854	1	PANEL	-
63	F015440	1	CHECK VALVE	-

OPTIONAL EQUIPMENTS UREA UNIT F044954 86 2 T0456 [T0456]
