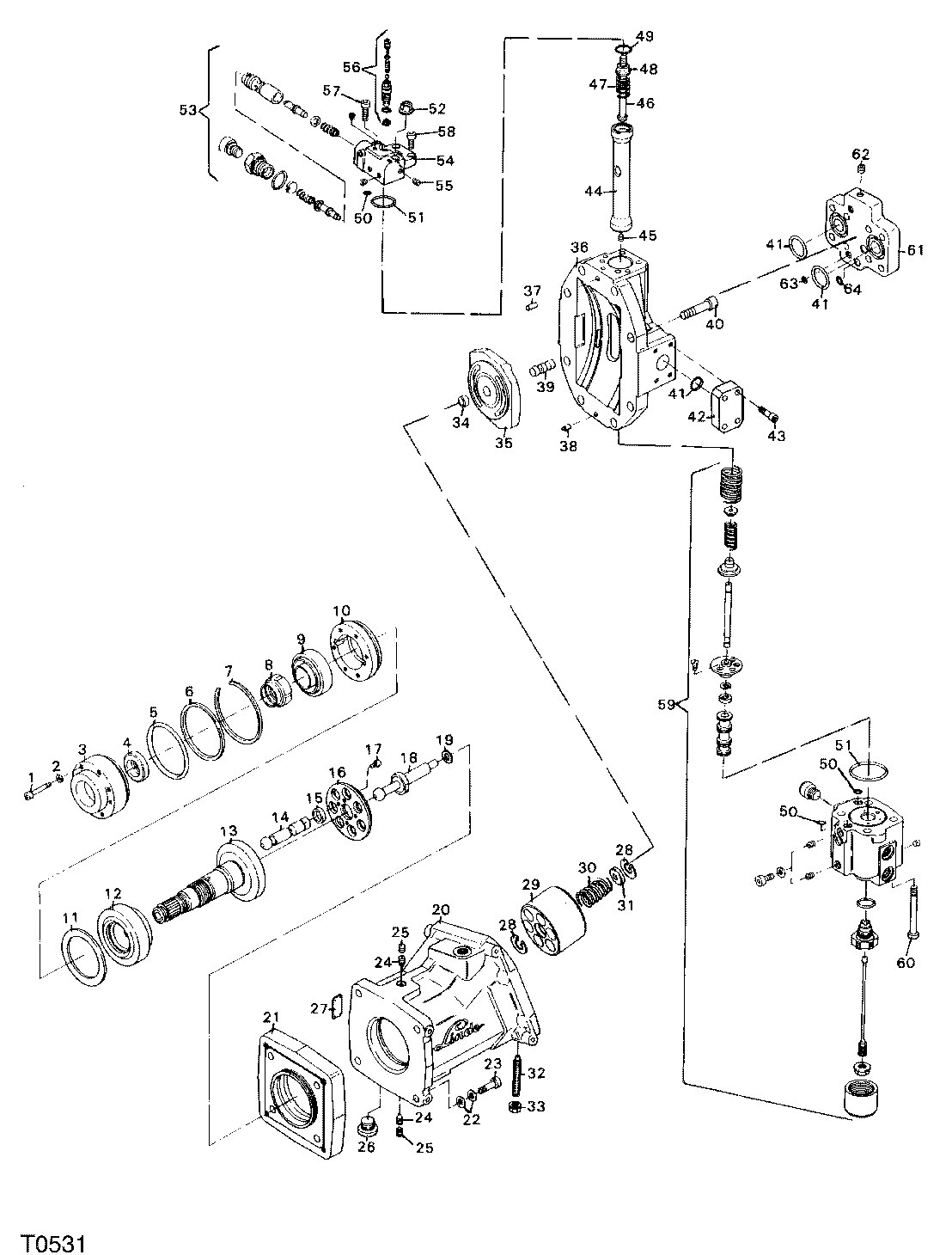

HYDRAULIC SYSTEM HYDRAULIC PUMP F044954 41 22 T0531 [T0531]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F003406	6	SCREW	-
2	F031782	6	SEAL	-
3	F036226	1	FLANGE	-
4	F017773	1	SEAL	-
5	F017774	1	O-RING	-
6	F036227	1	WASHER	-
7	F036228	1	CIRCLIP	-
8	F017775	1	NUT	-
9	F017776	1	ROLLER BEARING	-
10	F036229	1	RING	-
11	F036230	1	SHIM	-
11	F036231	1	SHIM	-
11	F036232	1	SHIM	-
12	F017777	1	ROLLER BEARING	-
13	-------	1	O-RING	-
14	-------	7	O-RING	-
15	F036233	7	SUPPORT RING	-
16	F036234	1	DISC	-
17	F036235	4	SCREW	-
18	-------	1	O-RING	-
19	F036236	5	SPACER RING	-
20	-------	1	O-RING	-
21	F036237	1	FLANGE	-
22	F010638	8	WASHER	-
23	F004660	4	SCREW	-
24	F003465	2	STOP SCREW	-
25	F034448	2	STOP SCREW	-
26	F003389	1	PLUG	-
28	F003370	2	CIRCLIP	-
29	F036238	1	BLOCK	-
30	F017779	1	SPRING	-
31	F036239	1	RING	-
32	F031304	1	SCREW	-
33	F034455	1	NUT	-
34	F036240	1	BUSHING	-
35	-------	1	O-RING	-
36	-------	1	O-RING	-
37	F030868	1	SLIDE PIN	-
38	F031301	1	SLIDE PIN	-
39	F036241	1	PIN	-
40	F004657	8	CAP SCREW	-
41	F017780	4	O-RING	-
42	F036242	2	PLATE	-
43	F025796	8	CONNECTION	-
44	F036243	1	PISTON	-
45	F036244	1	STOP SCREW	-
46	F036245	1	PIN	-
47	F017781	1	SPRING	-
48	F036246	1	GUIDE	-
49	F036247	1	CIRCLIP	-
50	F017782	8	O-RING	-
51	F017783	3	O-RING	-
52	F034455	1	NUT	-
53	F017784	1	VALVE HOUSING	-
54	F036248	1	HOUSING	-
55	F031753	7	SCREW	-
56	F017785	1	RELIEF VALVE	-
57	F010829	2	Cap Screw	-
58	F008647	2	SCREW	-
59	F017787	1	CONTROL VALVE	-
60	F015324	4	SCREW	-
61	F036249	1	PLATE	-
62	F031753	2	SCREW	-
63	F017788	1	O-RING	-
64	F017789	2	O-RING	-
-	F005588	1	HYDRAULIC MOTOR	-

HYDRAULIC SYSTEM HYDRAULIC PUMP F044954 41 22 T0531 [T0531]
