Открытый узел

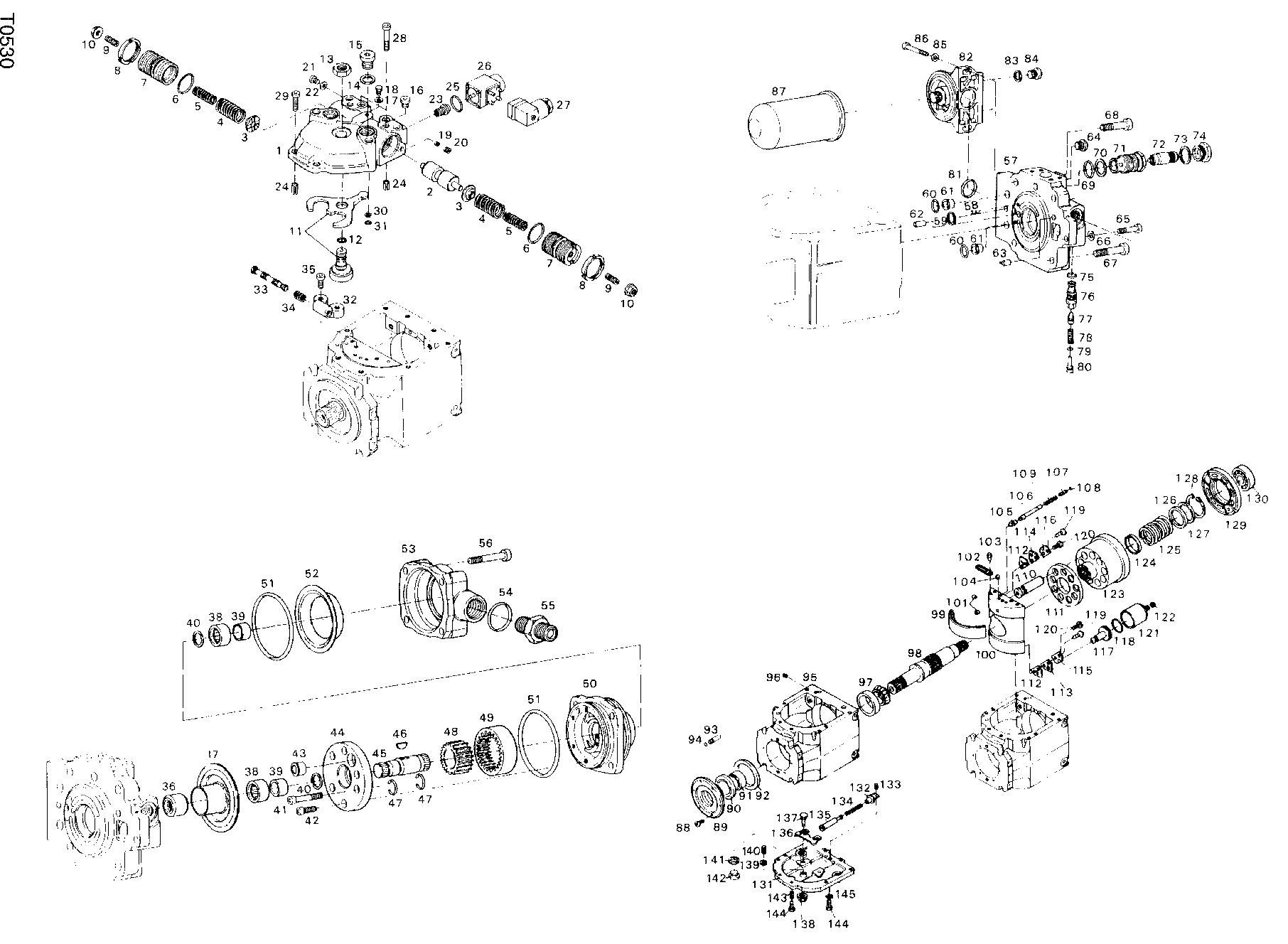

HYDRAULIC SYSTEM HYDRAULIC PUMP F044954 41 20 T0530 [T0530]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-------	1	O-RING	-
2	F034919	1	PISTON	-
3	F034921	2	SPRING RETAINER	-
3	F034920	2	SPRING RETAINER	-
4	F031777	2	SPRING	-
5	F031778	2	SPRING	-
6	F023408	2	O-RING	-
7	F036332	2	PLUG	-
8	F036333	2	NUT	-
9	F031779	2	STOP SCREW	-
10	F031780	2	NUT	-
11	F031781	1	REPLACED	-
12	F017788	1	O-RING	-
13	F034923	1	NUT	-
14	F003701	1	COPPER WASHER	-
15	F034924	1	PLUG	-
16	F034459	2	PLUG	-
17	F031782	2	SEAL	-
18	F003517	1	SCREW	-
19	F036334	2	PLUG	-
20	F031305	1	PLUG	-
21	F031436	1	PLUG	-
22	F003697	1	COPPER WASHER	-
23	F030895	2	CARTRIDGE	-
24	F034925	2	SPRING PIN	-
25	F023409	2	O-RING	-
26	F018284	2	SOLENOID	-
27	F034926	2	CONNECTOR	-
28	F003421	6	SCREW	-
29	F003417	4	SCREW	-
30	F034928	1	WASHER	-
31	F031784	1	O-RING	-
32	F031785	1	HOUSING	-
33	F031786	1	SPOOL	-
34	F030897	2	SPRING	-
35	F031385	2	SCREW	-
36	F036329	1	MUFF	-
37	F036330	1	STRAINER	-
37	F018174	1	FEED PUMP	-
38	F023413	2	NEEDLE BEARING	-
39	F030884	2	RING	-
40	F034932	2	RING	-
41	F003406	2	SCREW	-
42	F003400	2	SCREW	-
43	F034930	1	VALVE	-
44	F034931	1	FLANGE	-
45	F036331	1	SHAFT	-
46	F030886	1	WEDGE	-
47	F030885	2	CIRCLIP	-
48	F030887	1	PUMP WHEEL	-
49	F030888	1	RING	-
50	F034933	1	HOUSING	-
51	F031774	2	O-RING	-
52	F031376	1	STRAINER	-
53	F031377	1	FLANGE	-
54	F034934	1	O-RING	-
55	F018277	1	NIPPLE	-
56	F007615	4	SCREW	-
57	F036324	1	HOUSING	-
58	F036325	2	SLIDE PIN	-
59	F030883	1	SEAL RING	-
60	F023418	2	O-RING	-
61	F031362	2	BUSHING	-
62	F034937	1	SLIDE PIN	-
63	F034938	1	SLIDE PIN	-
64	F031311	2	PLUG	-
65	F036327	2	SCREW	-
66	F036328	1	SEAL RING	-
67	F030466	2	SCREW	-
68	F034945	2	SCREW	-
68	F018287	2	RELIEF VALVE	-
69	F018278	2	O-RING	-
70	F018279	2	SUPPORT RING	-
71	-------	2	O-RING	-
72	-------	2	O-RING	-
73	F004571	2	O-RING	-
74	-------	2	O-RING	-
74	F018281	1	VALVE	-
75	F017788	1	O-RING	-
76	-------	1	O-RING	-
77	-------	1	O-RING	-
78	F034939	1	SPRING	-
79	F018283	1	SHIM	-
79	F018283	1	SHIM	-
80	-------	1	O-RING	-
81	F023429	1	O-RING	-
82	F023427	1	FLANGE	-
83	F008223	1	COPPER WASHER	-
84	F034941	1	REPLACED	-
85	F017318	2	SPRING WASHER	-
86	F013638	2	SCREW	-
87	F008231	1	FILTER	-
88	F017300	6	SCREW	-
89	F034942	1	CAP	-
90	F019387	1	SEAL	-
91	F036277	1	RING	-
92	F036278	1	SHIM	-
92	F036279	1	SHIM	-
92	F036280	1	SHIM	-
92	F036281	1	SHIM	-
92	F036282	1	SHIM	-
92	F036283	1	SHIM	-
92	F036284	1	SHIM	-
92	F036285	1	SHIM	-
93	F036286	2	BOLT	-
94	F031757	2	O-RING	-
95	-------	1	O-RING	-
96	F030026	1	SET SCREW	-
97	F036287	1	ROLLER BEARING	-
98	F036627	1	SHAFT	-
98	F036288	1	CRADLE	-
98	F036290	1	REPAIR KIT	-
99	F036289	2	NEEDLE BEARING	-
100	-------	1	O-RING	-
101	F034849	6	PIN	-
102	F030873	2	SPRING	-
103	F034916	4	BOLT	-
104	F031434	2	NOZZLE	-
105	F036291	1	PIN	-
106	F036292	1	BOLT	-
107	F034917	1	BOLT	-
108	F031758	1	O-RING	-
109	F036293	1	SPRING	-
110	F036294	9	PISTON	-
111	F036295	1	WASHER	-
112	F036296	4	SHIM	-
112	F036297	4	SHIM	-
112	F036298	4	SHIM	-
112	F036299	4	SHIM	-
113	F036300	2	SPACER	-
114	F036201	2	SET SCREW	-
115	F036202	2	VALVE PLATE	-
116	F036203	2	HOUSING	-
117	F036204	2	END PIECE	-
118	F036205	4	REPLACED	-
119	F036206	4	SCREW	-
120	F036207	4	LINK YOKE	-
121	F036208	4	REPAIR KIT	-
122	F030876	4	SLIDE PIN	-
123	F036309	1	CYLINDER BLOCK	-
124	F036310	1	SUPPORT RING	-
125	F036311	1	SPRING	-
126	F036312	1	WASHER	-
127	F036314	2	SHIM	-
127	F036313	3	SHIM	-
128	F003372	1	CIRCLIP	-
129	F036316	1	GUIDE	-
130	F036315	1	ROLLER BEARING	-
130	F036317	1	COVER	-
131	F036318	1	COVER	-
132	F035007	1	SPRING RETAINER	-
133	F002904	2	SPRING PIN	-
134	F036321	1	SPRING RETAINER	-
135	F036321	1	SPRING RETAINER	-
136	F036322	2	YOKE	-
137	F030879	2	SCREW	-
138	F031780	1	NUT	-
139	F035008	1	WASHER	-
140	F035009	1	SPRING PIN	-
141	F003701	1	COPPER WASHER	-
142	F034924	1	PLUG	-
143	F034925	2	SPRING PIN	-
144	F003536	8	SCREW	-
145	F036323	2	SEAL	-
-	-------	1	O-RING	-
-	F005585	1	HYDRAULIC PUMP	-

HYDRAULIC SYSTEM HYDRAULIC PUMP F044954 41 20 T0530 [T0530]
