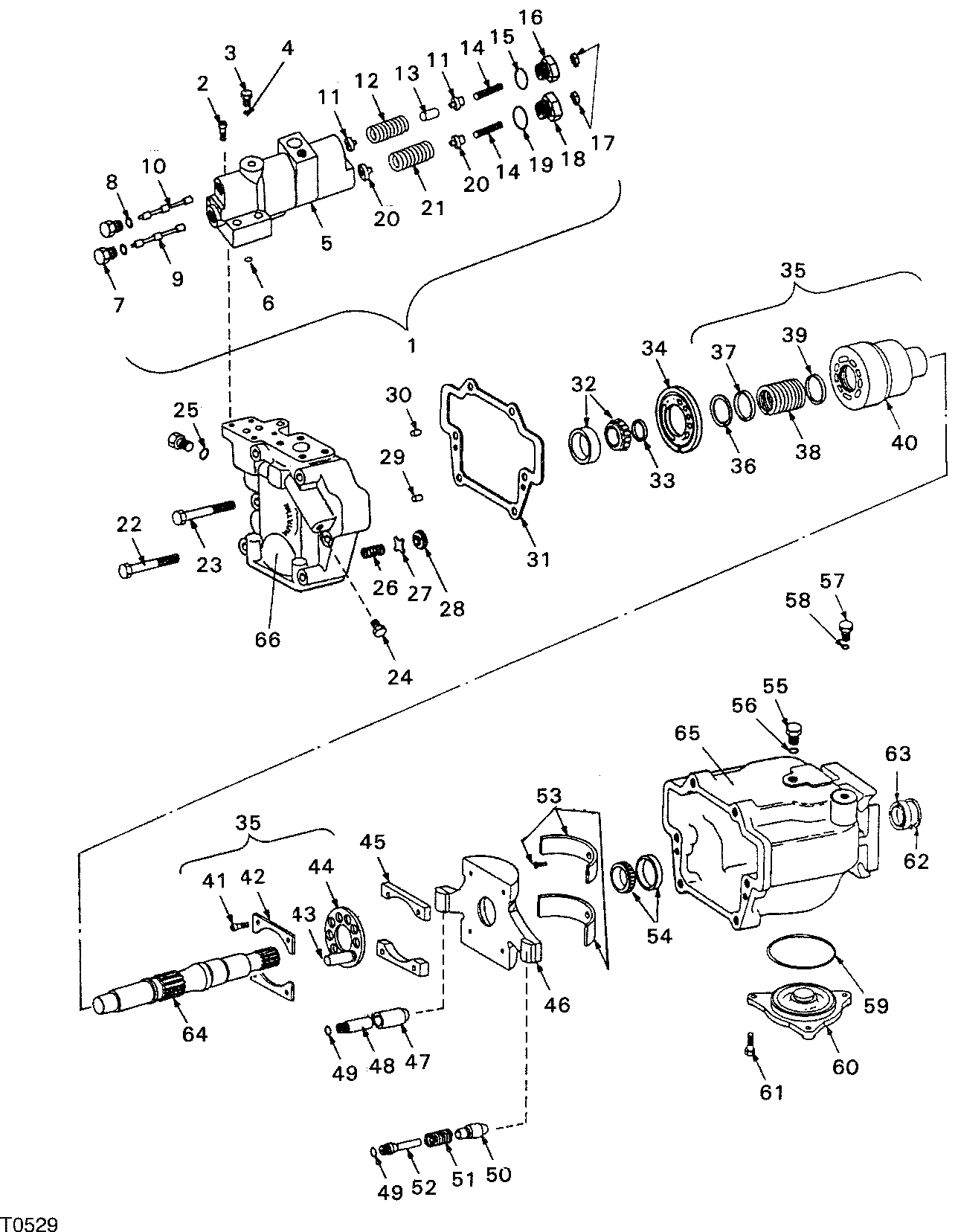

HYDRAULIC SYSTEM HYDRAULIC PUMP F044954 41 18 T0529 [T0529]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F022475	1	CONTROL VALVE	-
2	F036001	4	SCREW	-
3	F034008	1	PLUG	-
4	F034002	1	O-RING	-
5	F036002	1	FRAME	-
6	F028858	3	O-RING	-
7	F034059	2	PLUG	-
8	F034002	2	O-RING	-
9	F034003	1	SPOOL	-
10	F034004	1	SPOOL	-
11	F034005	2	GUIDE	-
12	F034058	1	SPRING	-
13	F034006	1	PIN	-
14	F036201	2	SET SCREW	-
15	F012918	1	O-RING	-
16	F036004	1	PLUG	-
17	F036006	2	REPLACED	-
18	F036005	1	PLUG	-
19	F003928	1	O-RING	-
20	F034011	2	GUIDE	-
21	F034057	1	SPRING	-
22	F035985	4	SCREW	-
23	F035984	2	SCREW	-
24	F033994	2	PLUG	-
25	F027010	2	O-RING	-
26	F027011	1	SPRING	-
27	F033996	1	VALVE	-
28	F033995	1	VALVE SEAT	-
29	F033997	1	PIN	-
30	F033990	1	PIN	-
31	F027012	1	SEAL	-
32	F022478	1	BEARING	-
33	F027013	1	SHIM KIT	-
34	F036202	1	VALVE PLATE	-
35	F035986	1	CYLINDER GROUP	-
36	F024014	1	HOSE PROTECTION	-
37	F027015	1	GUIDE	-
38	F027016	1	SPRING	-
39	F027017	1	GUIDE	-
40	F035987	1	CYLINDER BLOCK	-
41	F035988	4	SCREW	-
42	F035989	2	LIMITER	-
43	F035990	1	PISTON KIT	-
44	F035991	1	HOLDER PLATE	-
45	F035992	2	SPACER	-
46	F035993	1	YOKE	-
47	F035994	1	PISTON	-
48	F035995	1	ROD	-
49	F027009	2	O-RING	-
50	F035996	1	PISTON	-
51	F027018	1	SPRING	-
52	F035983	1	ROD	-
53	F035997	1	BEARING KIT	-
54	F022481	1	CIRCLIP	-
55	F033970	1	PLUG	-
56	F003928	1	O-RING	-
57	F035999	1	PLUG	-
58	F012918	1	O-RING	-
59	F027019	1	O-RING	-
60	F036000	1	COVER	-
61	F036001	3	SCREW	-
62	F022481	1	CIRCLIP	-
63	F027020	1	SEAL	-
64	F035998	1	SHAFT	-
65	F036203	1	HOUSING	-
66	F036204	1	END PIECE	-
-	F023077	1	PUMP	-
-	F022474	1	SEAL KIT	-

HYDRAULIC SYSTEM HYDRAULIC PUMP F044954 41 18 T0529 [T0529]
