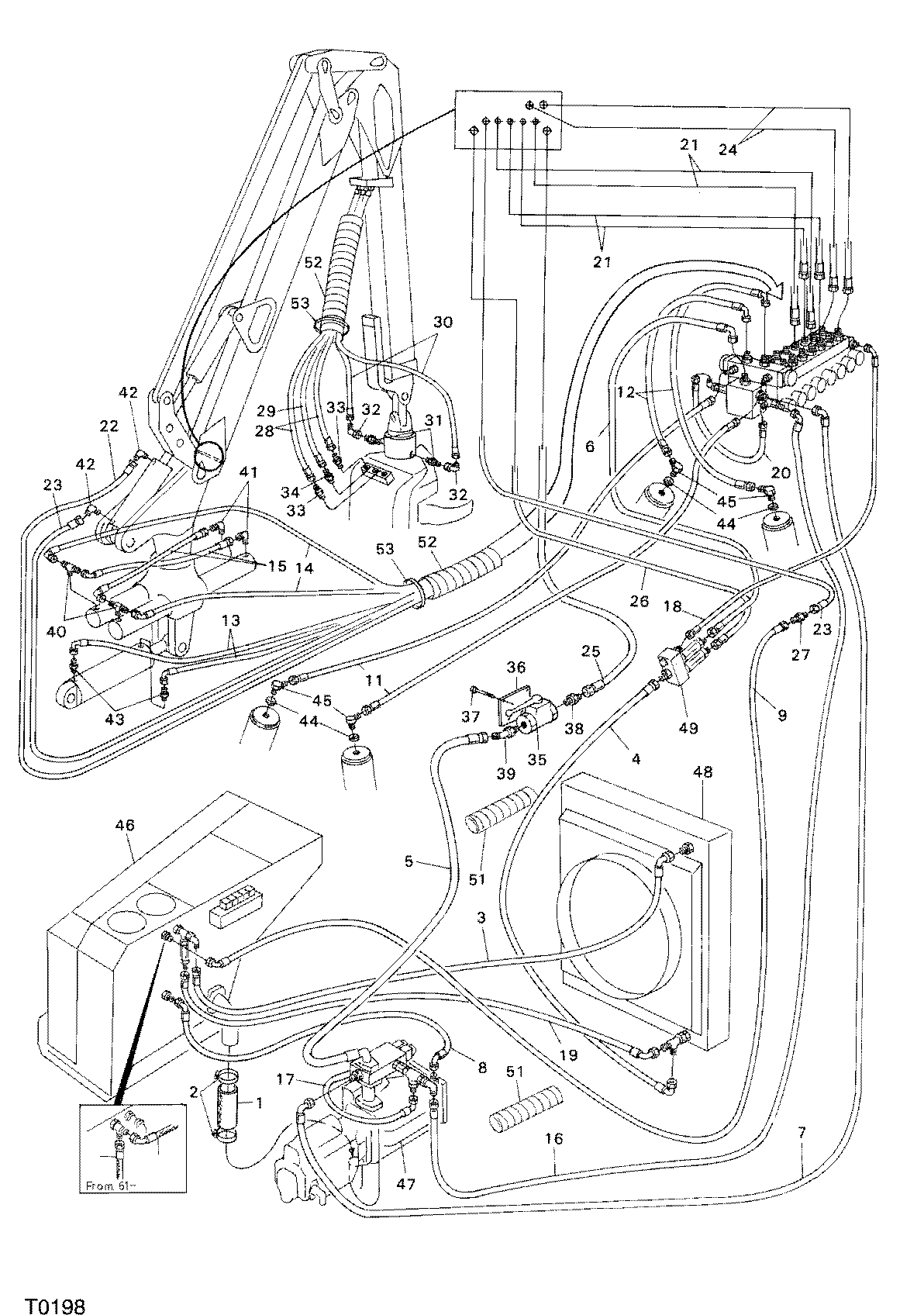

HYDRAULIC SYSTEM HYDRAULIC MOUNTING F044954 41 4 T0198 [T0198]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F025749	1	HOSE	-
2	F008489	2	Hose Clamp	-
3	F025429	1	HOSE-ASSY	-
4	F025430	1	HOSE-ASSY	-
5	F025431	1	HOSE-ASSY	-
6	F025432	1	HOSE-ASSY	-
7	F025433	1	HOSE-ASSY	-
8	F025434	1	HOSE-ASSY	-
9	F025435	1	HOSE-ASSY	-
11	F025436	2	HOSE-ASSY	-
12	F025441	2	HOSE-ASSY	-
13	F025441	2	HOSE-ASSY	-
14	F025442	2	HOSE-ASSY	-
15	F024332	2	Hydraulic Hose	-
16	F025443	1	HOSE-ASSY	-
17	F025444	1	HOSE-ASSY	-
18	F025445	1	HOSE-ASSY	-
19	F027310	1	HOSE-ASSY	-
20	F027311	1	HOSE-ASSY	-
21	F025415	4	HOSE-ASSY	-
22	F028628	1	HOSE-ASSY	-
23	F025417	1	HOSE-ASSY	-
24	F025418	2	HOSE-ASSY	-
25	F025419	1	HOSE-ASSY	-
26	F025420	1	HOSE-ASSY	-
27	F005086	1	Fitting	-
28	F023647	2	HOSE-ASSY	-
28	F025413	2	HOSE-ASSY	-
29	F027713	1	HOSE-ASSY	-
29	F023646	1	HOSE-ASSY	-
30	F027714	2	HOSE-ASSY	-
30	F027712	2	HOSE-ASSY	-
31	F012507	2	Fitting	-
32	F005046	2	Elbow Fitting	-
33	F005065	2	NIPPLE	-
34	F005063	1	NIPPLE	-
35	F020002	1	BALL VALVE	-
36	F023686	1	SHIM	-
37	F002046	4	SCREW	-
38	F005095	1	NIPPLE	-
39	F005091	1	Elbow Fitting	-
40	F012520	2	T-CONNECTION	-
41	F010072	2	ELBOW NIPPLE	-
42	F011482	2	Fitting	-
43	F010919	2	NIPPLE	-
44	F022726	4	SEAL	-
45	F016310	4	BANJO CONNECTION	-
46	-------	1	O-RING	-
47	-------	1	O-RING	-
48	-------	1	O-RING	-
49	-------	1	O-RING	-
50	F028627	1	HOSE-ASSY	-
51	F032113	3	HOSE PROTECTION	-
52	F021051	4	Hose Guard	-
53	F011353	17	BELT	-

HYDRAULIC SYSTEM HYDRAULIC MOUNTING F044954 41 4 T0198 [T0198]
