Открытый узел

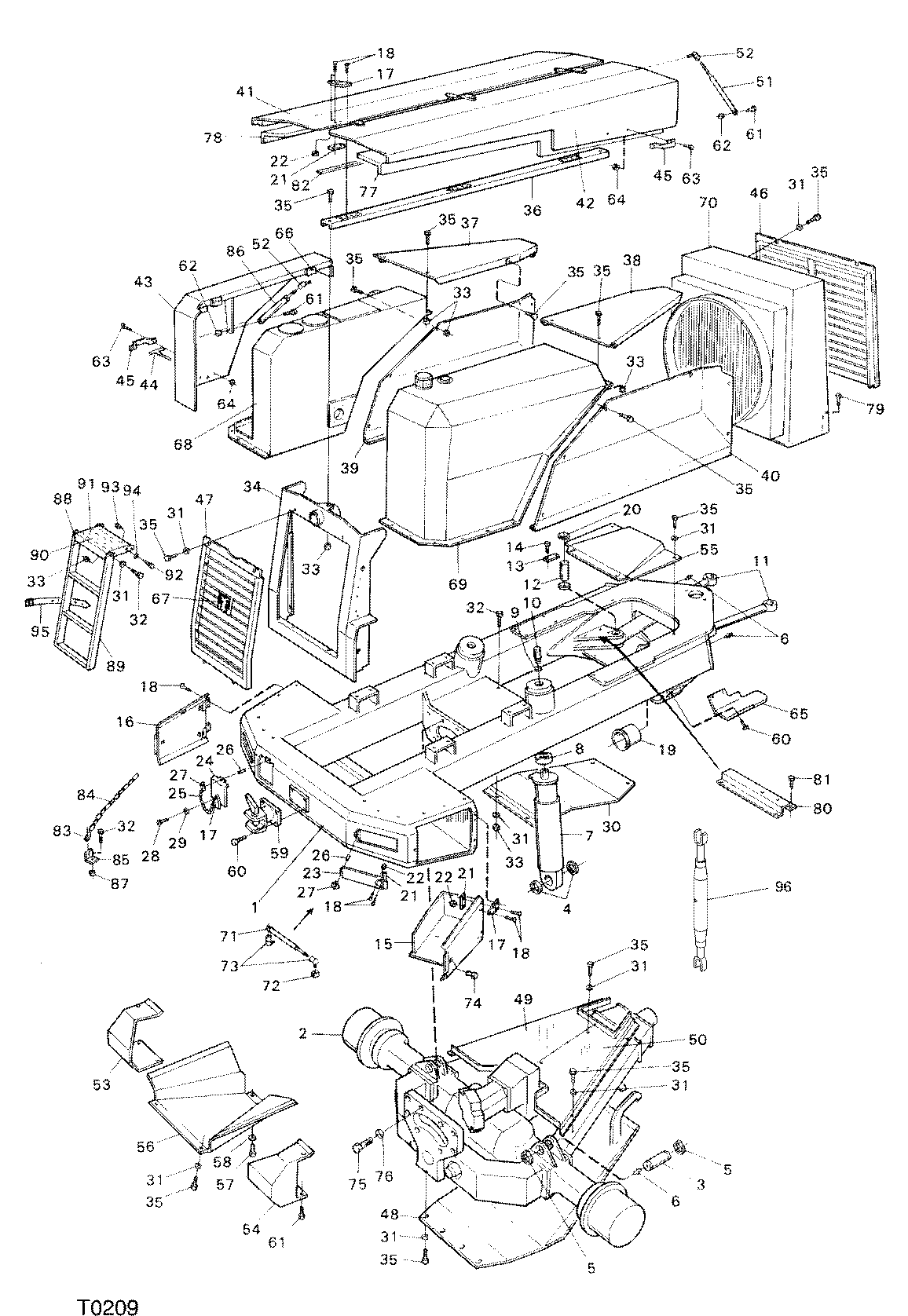

FRAME, PROTECTION PLATES REAR FRAME AND SHIELD PLATES F044954 51 6 T0209 [T0209]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F006000	1	REAR FRAME	-
2	-------	1	O-RING	-
3	F018510	2	SHAFT	-
4	F018512	4	SPACER	-
5	F002832	4	CIRCLIP	-
6	F003732	4	GREASE NIPPLE	-
7	-------	2	O-RING	-
8	F022717	2	SPHERICAL BEARING	-
9	F022726	2	SEAL	-
10	F016310	2	BANJO CONNECTION	-
11	-------	2	O-RING	-
12	F046007	2	SHAFT	-
13	F014570	2	WASHER	-
14	F003532	4	SCREW	-
15	F031132	1	HATCH	-
16	F006947	1	HATCH	-
17	F013851	8	HINGE	-
18	F003520	40	SCREW	-
19	F006709	1	BUSHING	-
20	F016148	4	SPACER	-
21	F017466	14	NUT	-
22	F003586	22	LOCK NUT	-
23	F022915	2	HATCH	-
24	F022918	1	HATCH	-
25	F035452	1	CHAIN	-
26	F022936	3	PIN	-
27	F020727	3	RING	-
28	F003467	1	SCREW	-
29	F003337	1	WASHER	-
30	F006929	1	PLATE	-
31	F003340	6	WASHER	-
32	F003542	8	SCREW	-
33	F003590	6	LOCK NUT	-
34	F019557	1	FRAME	-
35	F003540	48	SCREW	-
36	F019584	1	BALK	-
37	F019600	1	SHADE	-
38	F019603	1	SHADE	-
39	F019605	1	PLATE	-
40	F019606	1	PLATE	-
41	F019641	1	PLATE	-
42	F019642	1	PLATE	-
43	F022307	1	HATCH	-
44	F022972	1	LOCK	-
45	F017467	5	HANDLE	-
46	F020845	1	GRID	-
47	F020855	1	GRID	-
48	F020904	1	UNDERSHIELD	-
49	F022220	1	PLATE	-
50	F022219	1	PLATE	-
51	F023469	2	GAS SPRING	-
52	F017474	3	BALL JOINT	-
53	F020993	1	COVER	-
54	F020994	1	COVER	-
55	F021079	1	COVER PLATE	-
56	F018454	1	PLATE	-
57	F003551	2	SCREW	-
58	F003341	2	WASHER	-
59	F013488	1	DRAW HOOK	-
59	F013489	1	Pin	-
60	F003549	8	SCREW	-
61	F003532	8	SCREW	-
62	F003563	2	NUT	-
63	F013225	40	SCREW	-
64	F003586	16	LOCK NUT	-
65	F032858	1	COVER	-
66	F023644	2	HINGE	-
67	F019355	1	SIGN	-
68	-------	1	O-RING	-
69	-------	1	O-RING	-
70	-------	1	O-RING	-
71	F024700	2	GAS SPRING	-
72	F023982	2	COUPLING NUT	-
73	F003734	4	BALL JOINT	-
74	F024045	1	KEY	-
75	F010787	8	SCREW	-
76	F002581	8	Lock Washer	-
77	F025652	1	INSULATION	-
78	F025653	1	INSULATION	-
79	F003541	8	SCREW	-
80	F020953	1	BRACKET	-
81	F003531	4	SCREW	-
82	F015398	1	STRIP	-
83	F028606	4	HEATER	-
84	F035452	1	CHAIN	-
84	F035452	1	CHAIN	-
85	F028561	2	BRACKET	-
86	F028808	1	GAS SPRING	-
87	F003565	2	NUT	-
88	F027651	1	LADDER	-
89	F027652	1	LADDER	-
90	F027657	1	PLATFORM	-
91	F027656	1	FOOT BOARD	-
92	F003523	4	SCREW	-
93	F003587	4	LOCK NUT	-
94	F003338	4	WASHER	-
95	F011353	1	BELT	-
96	F027625	1	BRACING	-
-	F003520	40	SCREW	-

FRAME, PROTECTION PLATES REAR FRAME AND SHIELD PLATES F044954 51 6 T0209 [T0209]

Нет текстового описания
